Asrock H510M-HDV/M.2 SE, s.1200, 90-MXBM00-A0UAYZ

Shape factor µATX
Socket Intel 1200
chipset Intel H470
CPU-Compatibility Core i-11000, Core i-10000, Pentium Gold G6000, Celeron G5000
RAM 2x DDR4 DIMM, dual PC4-23466U/DDR4-2933, max. 64GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260)

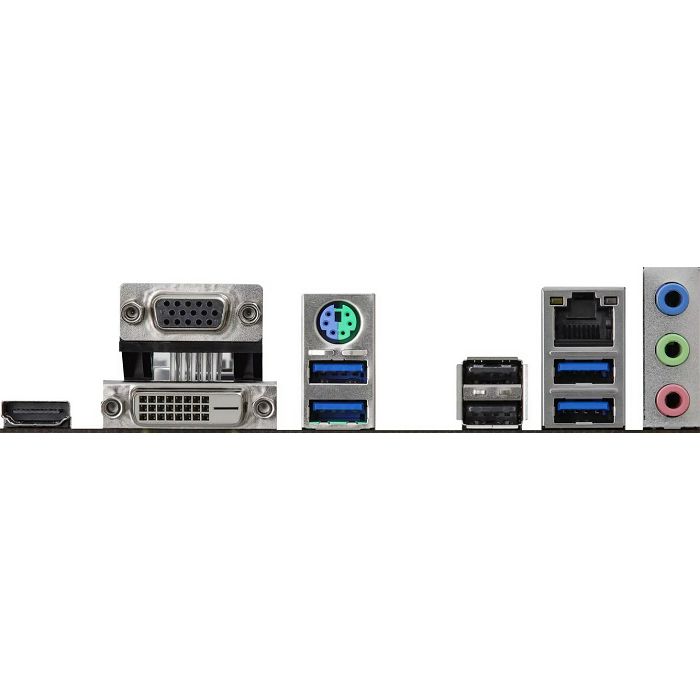

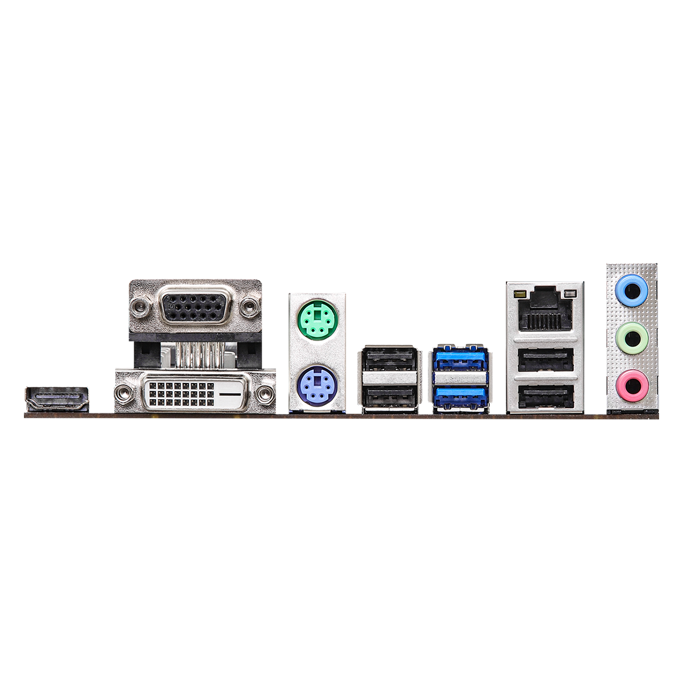

external connectors 1x VGA (iGPU), 1x DVI-D (iGPU), 1x HDMI 2.0b (iGPU), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 keyboard, 1x PS/2 mouse
Internal connectors 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (H470), 1x serial, 1x TPM-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 1x fan/pump 4-Pin, 2x fan 4-Pin
Header Lighting not available
buttons/Switches not available
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless not available
RAID level 0/1/5/10 (H470)
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 6 virtual phases (5+1), 6 real phases (5+1), PWM-Controller: RT3609BE (max. 8 phases)
Lighting not available
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, onboard TPM 2.0 support (Intel PTT)
