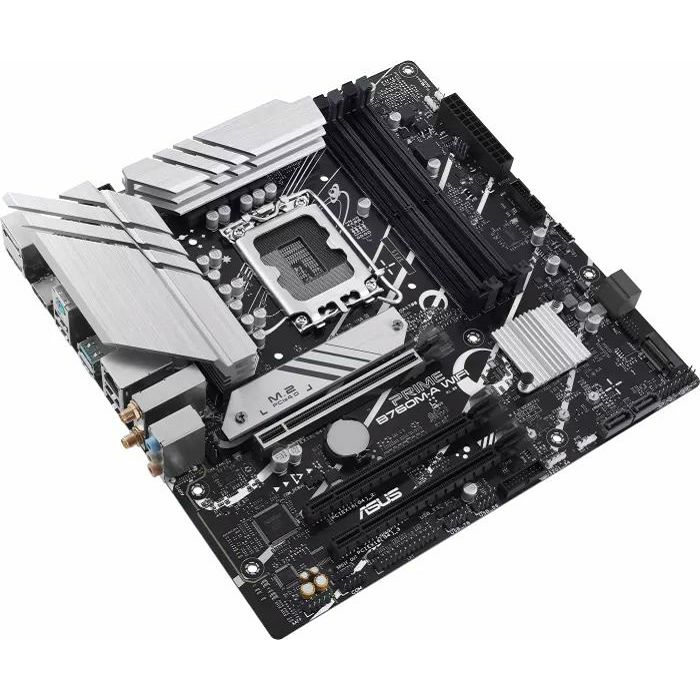

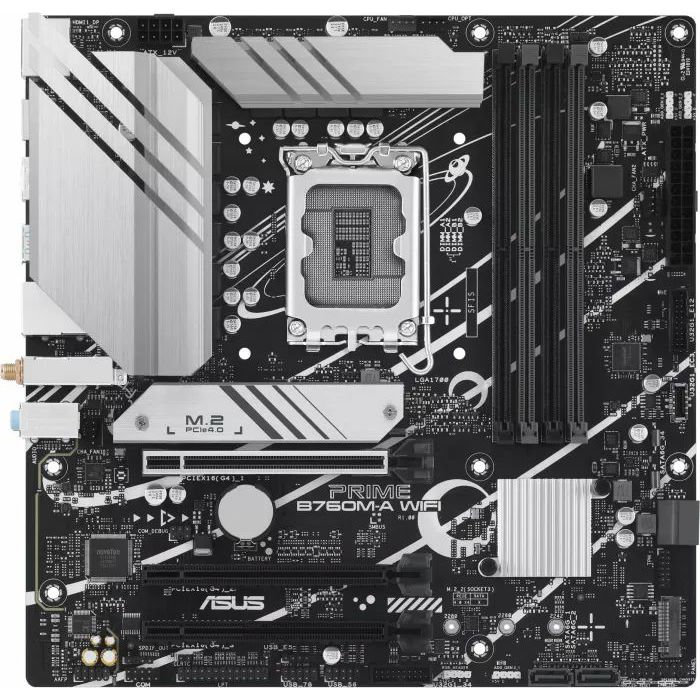

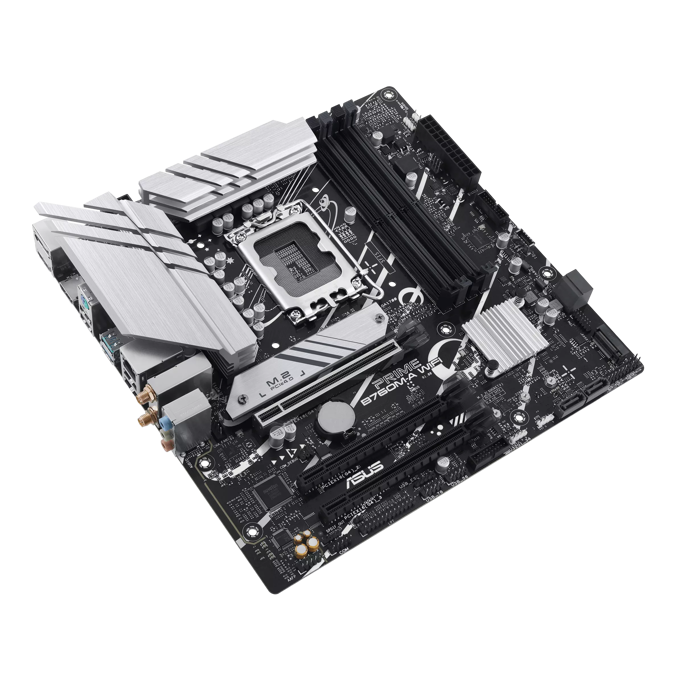

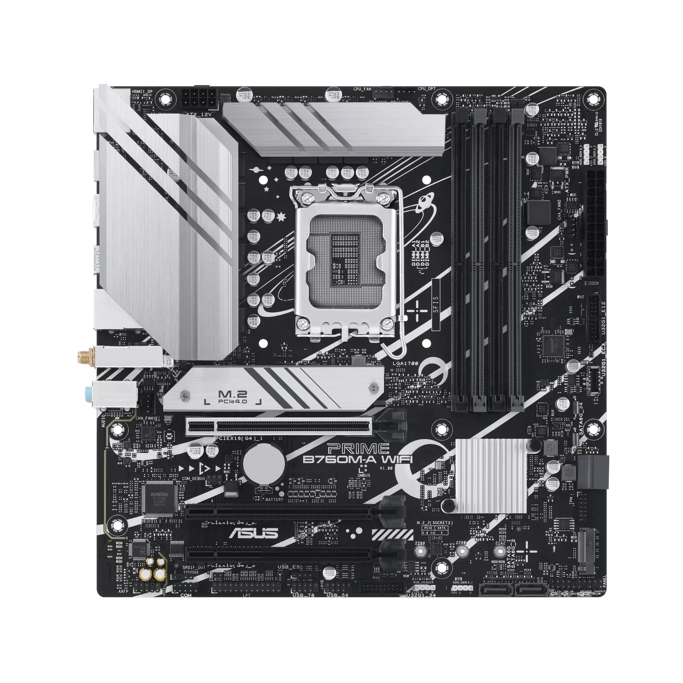

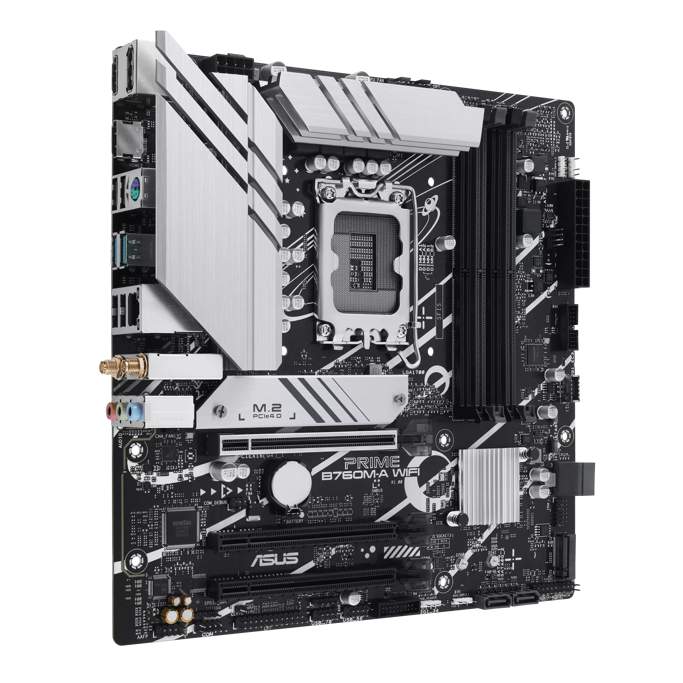

ASUS Prime B760M-A WiFi D4, DDR5, s1700, 90MB1EL0-M0EAY0

Form factor µATX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 128GB (UDIMM)
Expansion Slots 3x PCIe 4.0 x16 (1x x16, 1x x4, 1x x1), 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)

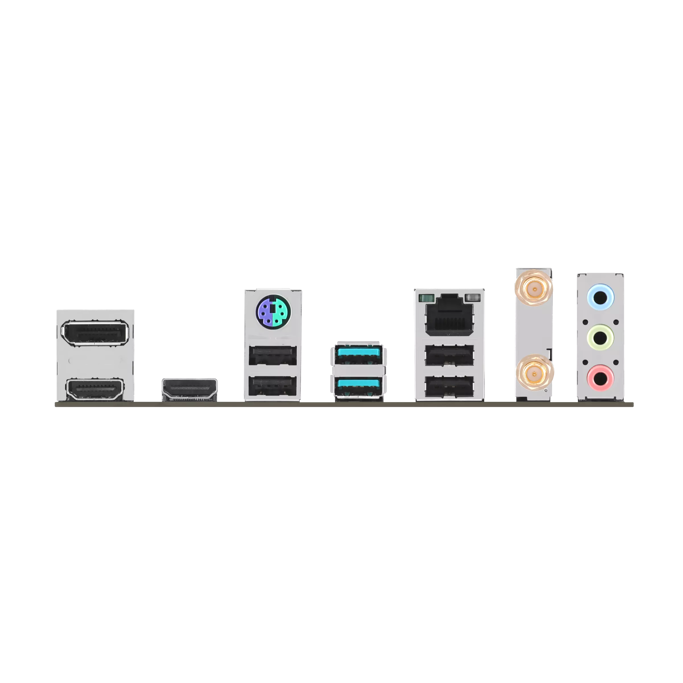

External connections 2x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.1 (10Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 3x jack, 1x PS/2 combo, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.0 Key-A header (5Gb/s), 2x USB 3.0 header (5Gb/s, 4x USB 3.0), 3x USB 2.0 header (480Mb/s, 5x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x parallel, 1x TPM header, 1x S/PDIF header, 1x chassis intrusion header, 1x COM debug header
Header Cooling 2x CPU fan 4-pin, 2x fan 4-pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless Wi-Fi 6 (Wi-Fi 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.2
RAID Level 0/1/5/10 (B760)
Multi-GPU N/A
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 9 virtual phases (8+1)
MOSFETs CPU (VCORE) 8x
MOSFETs SoC (VCCGT) 1x
Lighting N/A
BIOS 1x 16MB (128Mb)
Particularities Audio+solid capacitors, 1x M.2 passive cooler, onboard TPM 2.0 support (Intel PTT), white build compatible (PCB primary black)
