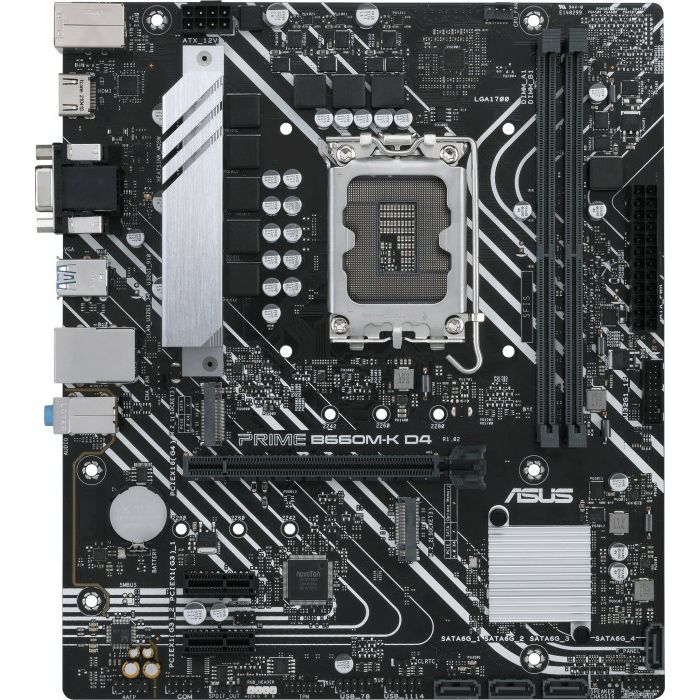

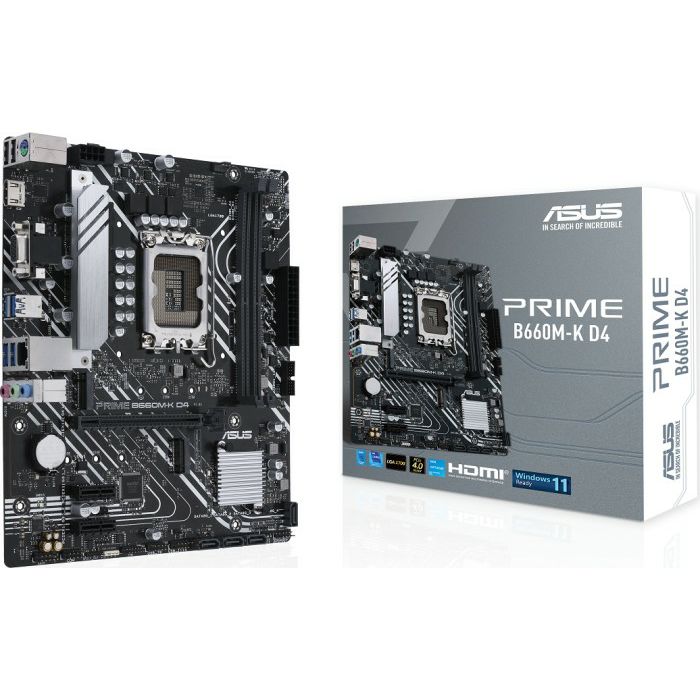

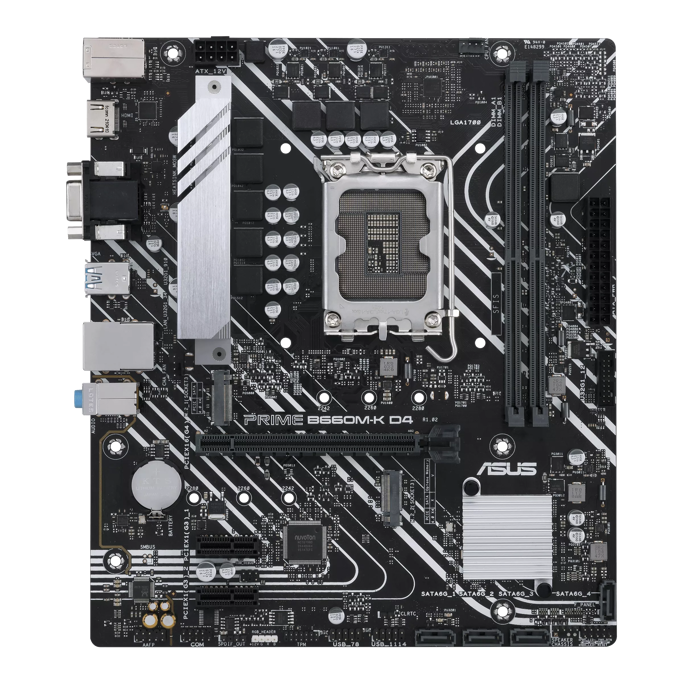

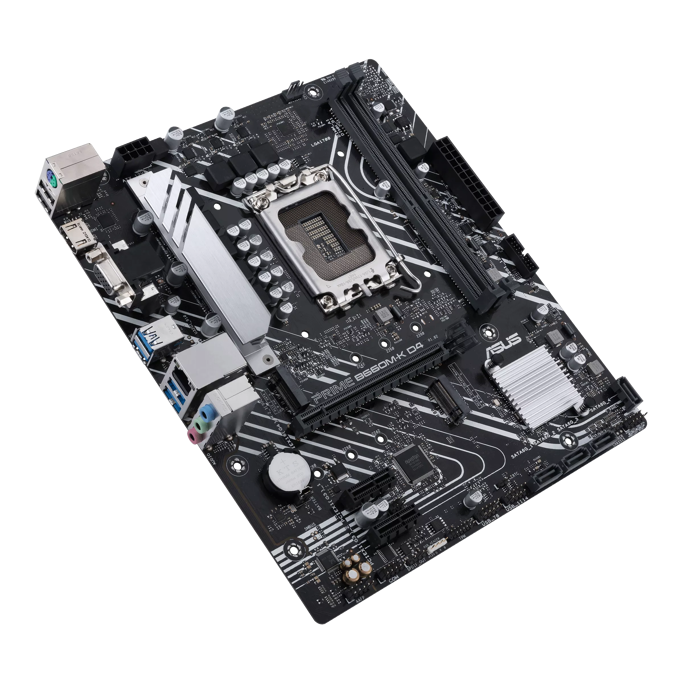

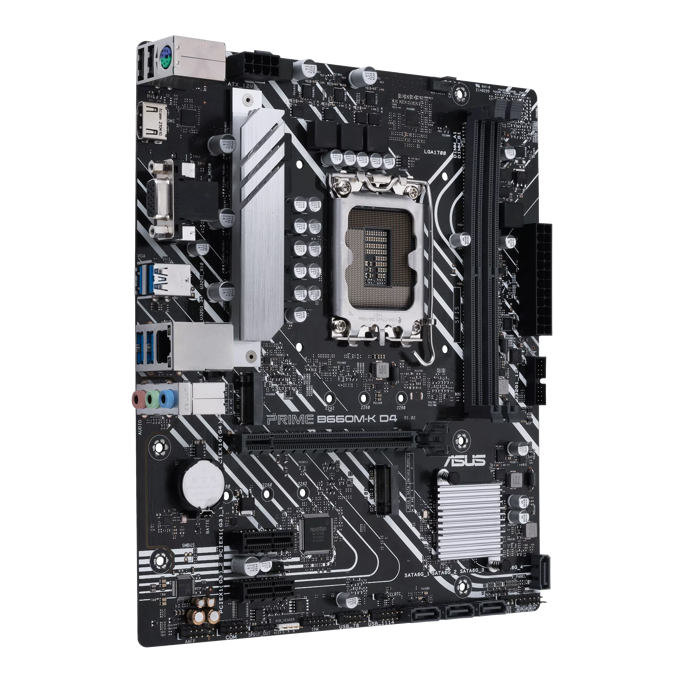

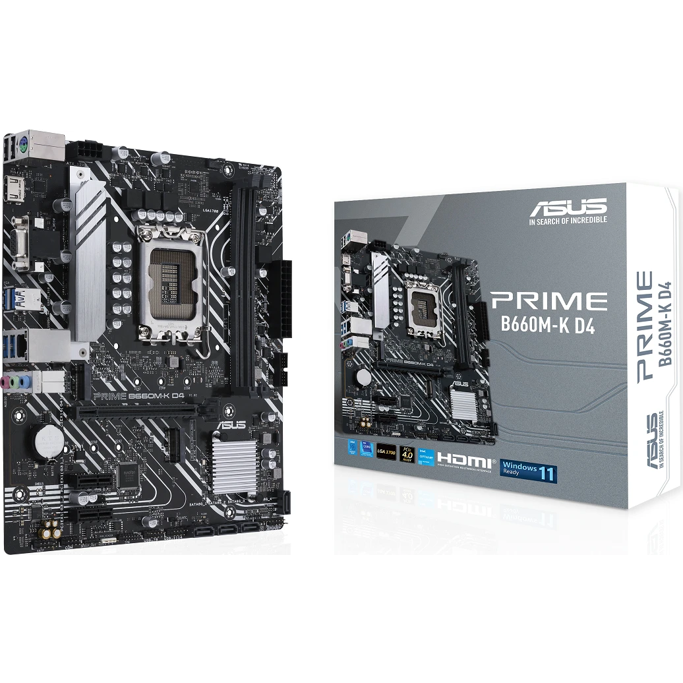

ASUS Prime B660M-K D4, DDR4, s1700, 90MB1950-M0EAY0

Shape factor µATX
Socket Intel 1700
chipset Intel B660
CPU-Compatibility Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR4 DIMM, dual PC4-42666U/?DDR4-5333 (OC), max. 64GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 2x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242)

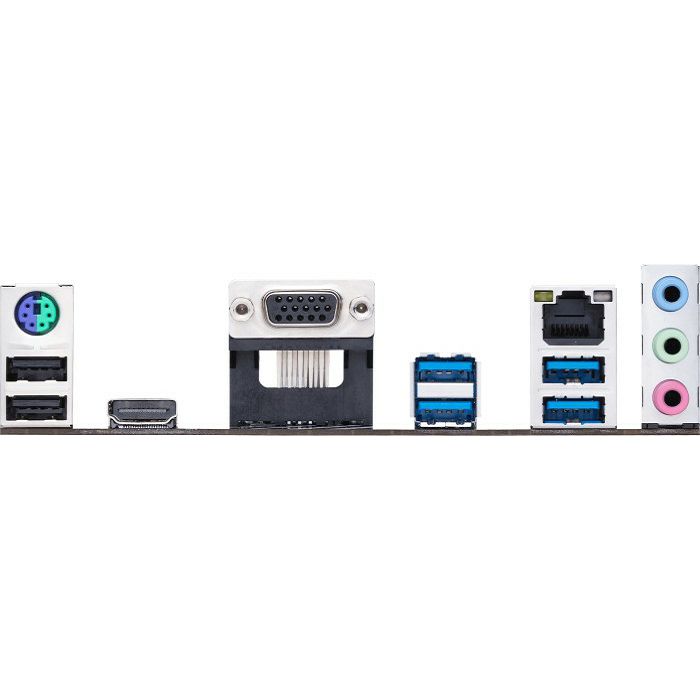

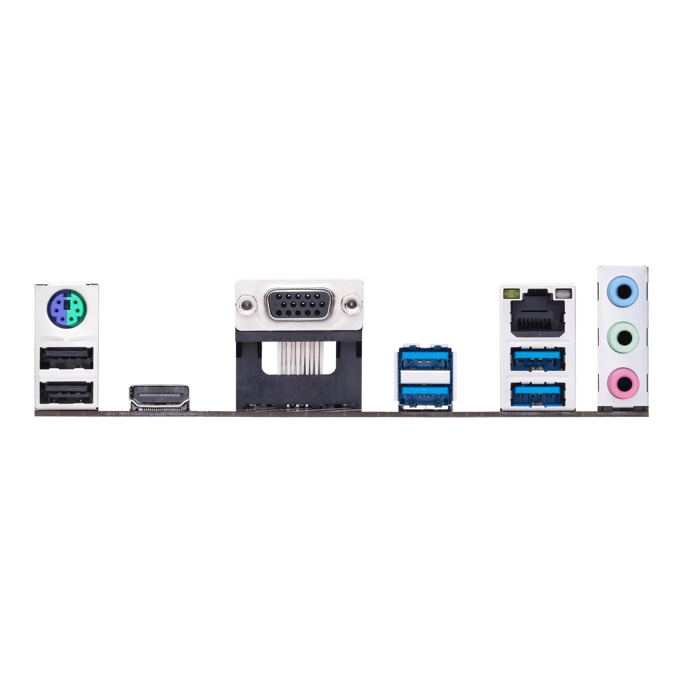

external connectors 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 4x USB-A 3.0 (5Gb/?s, B660), 2x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek), 3x jack, 1x PS/?2 Combo
Internal connectors 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0, B660), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B660), 1x serial, 1x TPM-Header, 1x S/?PDIF-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header, 1x COM Debug-Header
Header Cooling 1x CPU fan 4-Pin, 1x fan 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
buttons/Switches not available
Audio 7.1 (Realtek)
Graphics iGPU
Wireless not available
RAID level 0/?1/?5/?10 (B660)
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 7 virtual phases (6+1), 7 real phases (6+1), PWM-Controller: RT3628AE (max. 9 phases)
MOSFETs CPU 6x 46A 4C10C/?4C06B
MOSFETs SoC 1x 46A 4C10C/?2x 4C06B
Lighting not available
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, onboard TPM 2.0 support (Intel PTT)
