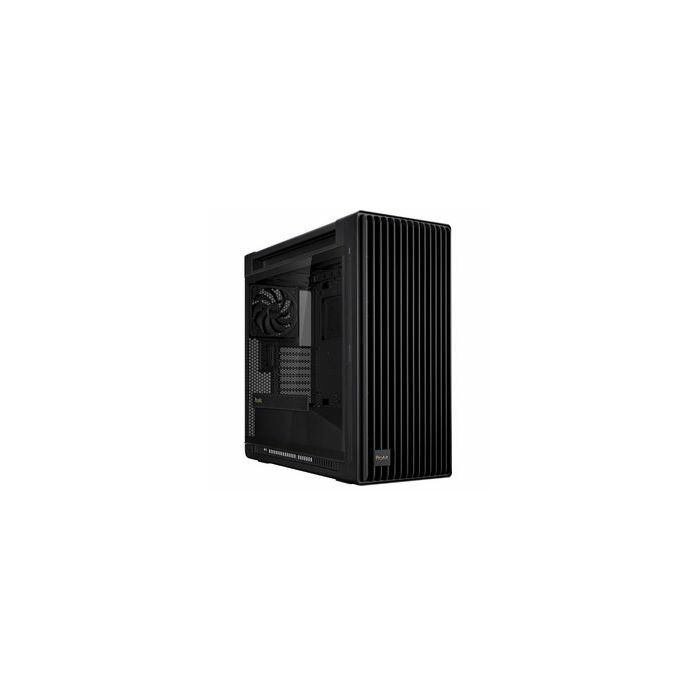

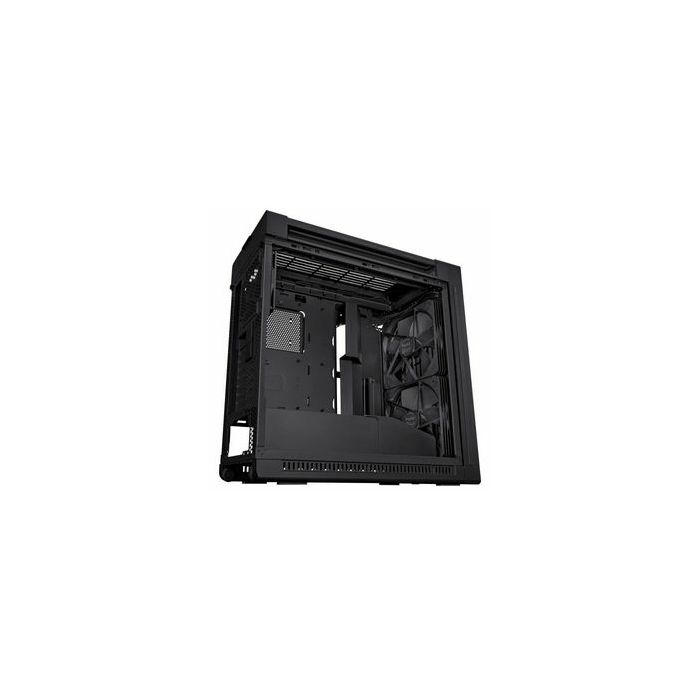

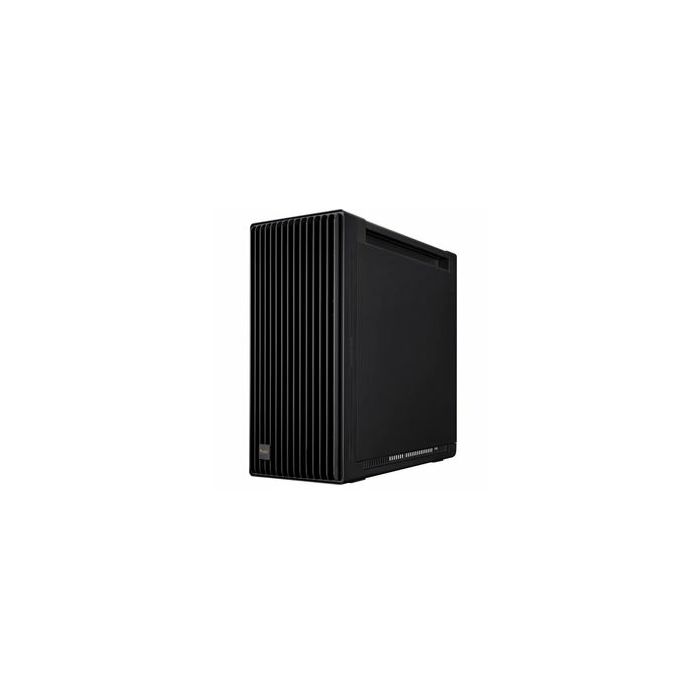

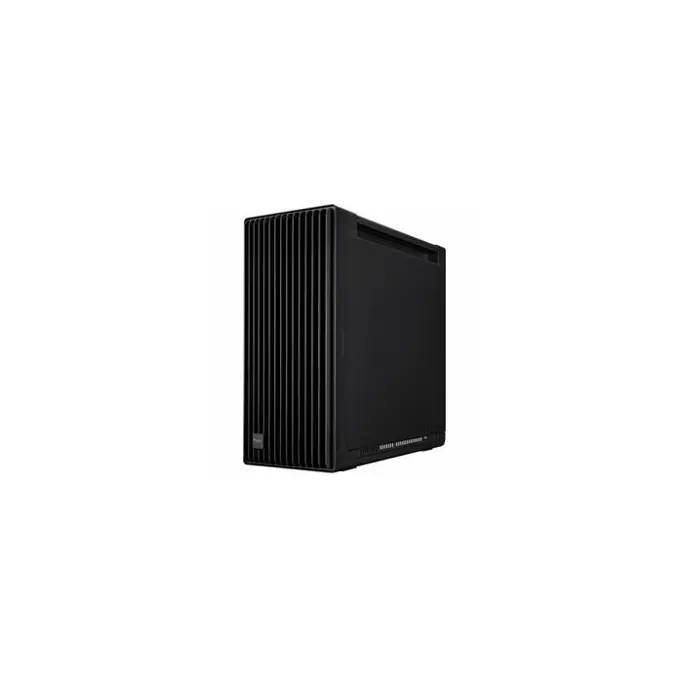

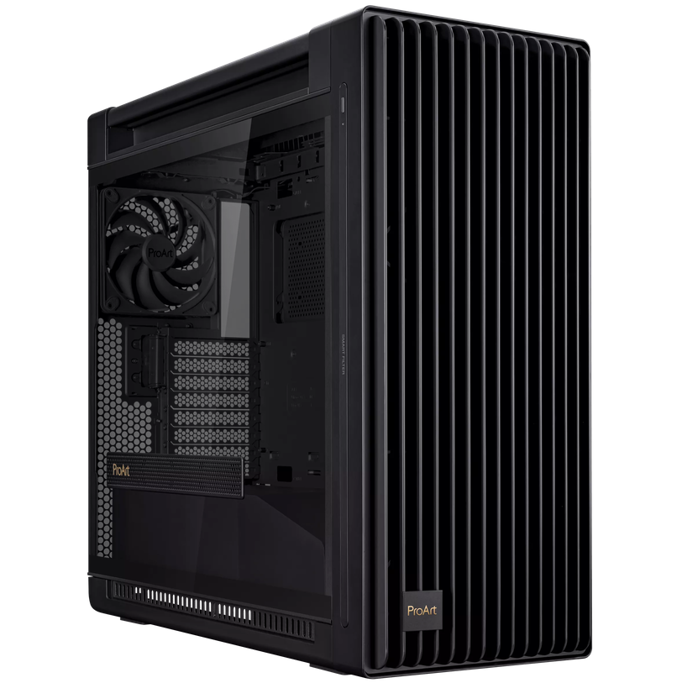

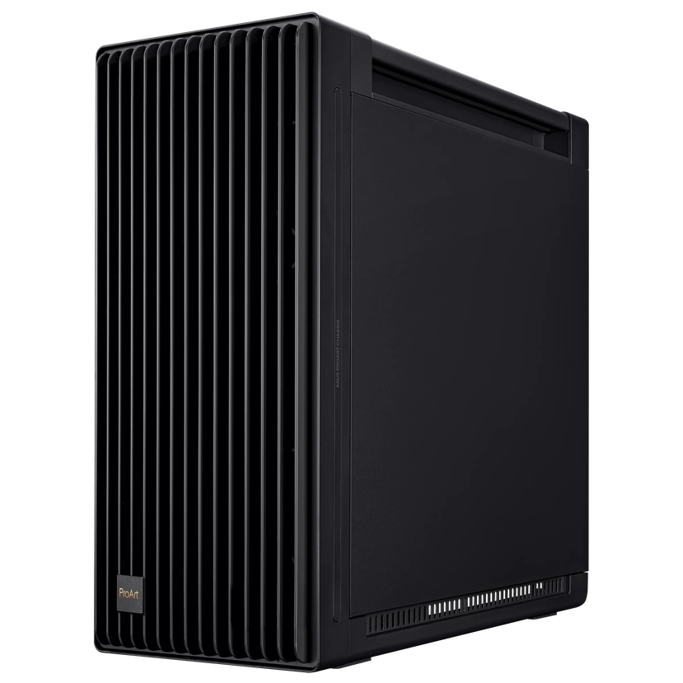

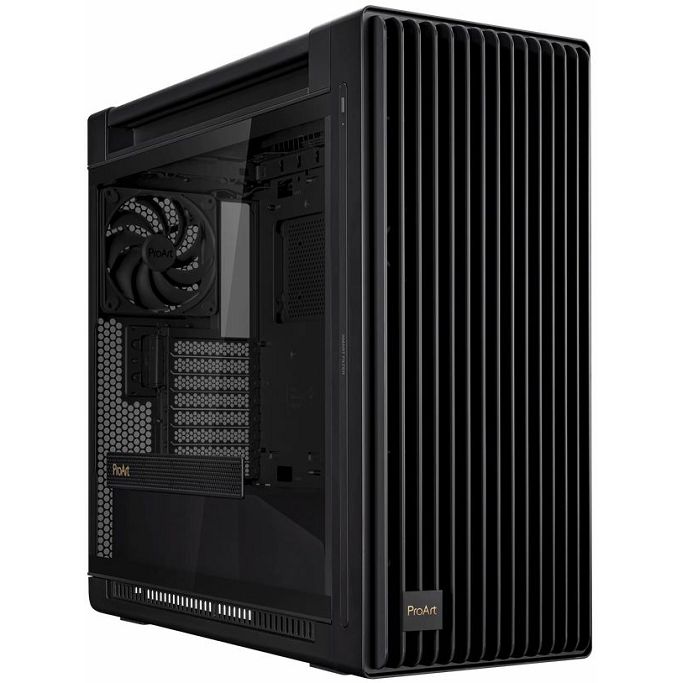

Asus Full Tower ProArt PA602, glass window, Black, 90DC00J0-B09000

external
not available
Internal
5x 2.5", 3x 2.5"/3.5" (transverse, HDD cage), 1x 3.5"
Connectors
1x USB-C 3.2 (20Gb/?s), 2x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 3.5mm jack (Line-In/?Out)
PCI-slots
8
Fan(s) (front)
2x 200mm
Fan(s) (rear)
1x 140mm or 1x 120mm (optional)
Fans (left)
not available
Fans right
not available
Fan(s) (top)
3x 120mm (optional) or 3x 140mm (optional)
Fan(s) (bottom)
not available
Fans (other)
not available
radiator sizes
not available front, 120/?140/?240/?280/?360/?420mm top, not available rear
Motherboard
to ATX (277mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/mini-DTX (8"x6.7")/DTX (9.6"x8")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x10.9")
Power supply
ATX (max. 190mm deep)
Power supply position
bottom
CPU Coolers
max. 190mm height
Graphics Cards
max. 450mm
Colour
black, inside black
Lighting
without Illumination
Dimensions (WxHxD)
245x560x593mm
Capacity
81.36l
Weight
15.80kg
Type
Big-Tower

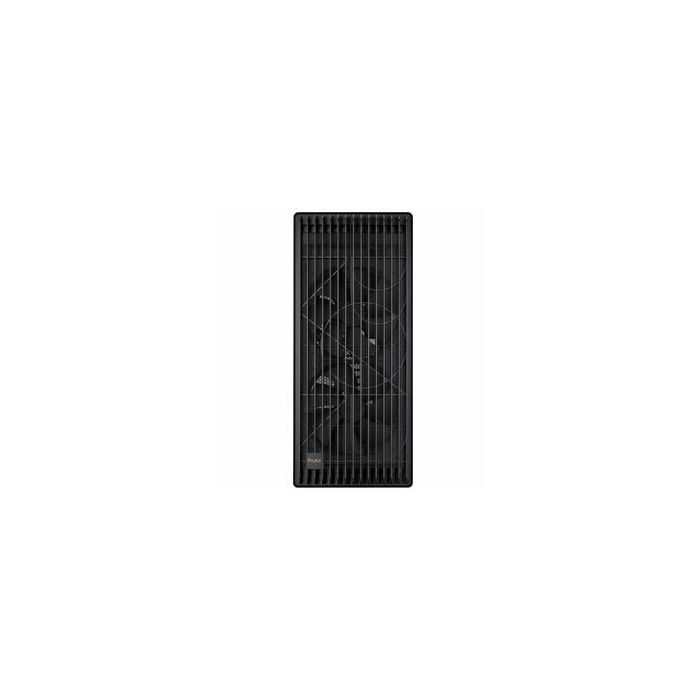

front
Mesh

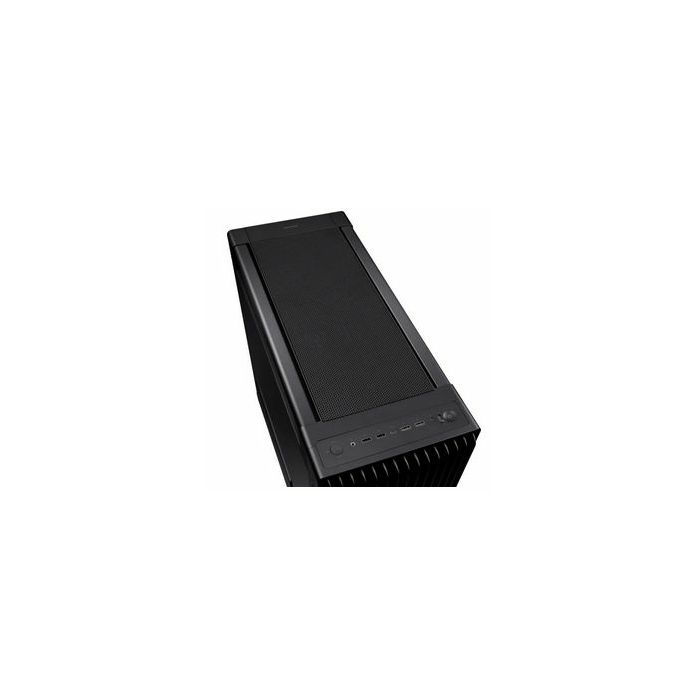

above
Mesh, mainly fan grill
below
partially closed, mainly fan grill, dust filter outdoor

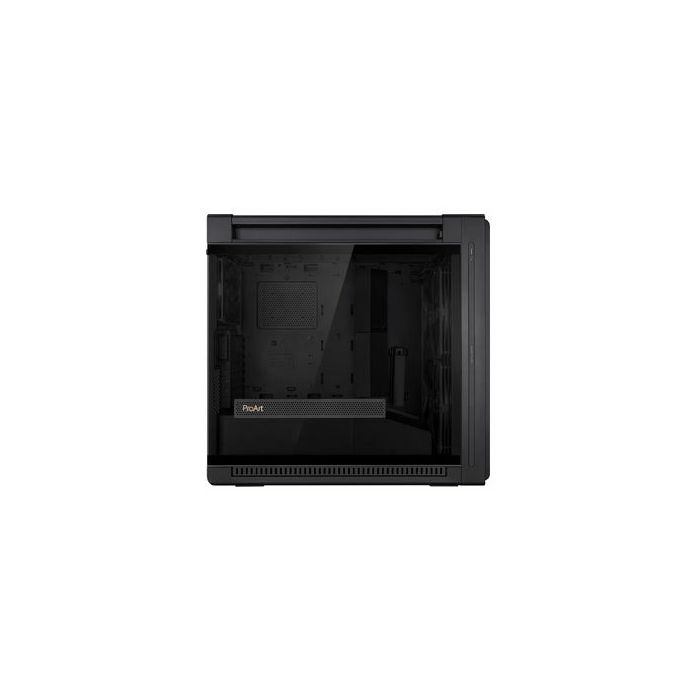

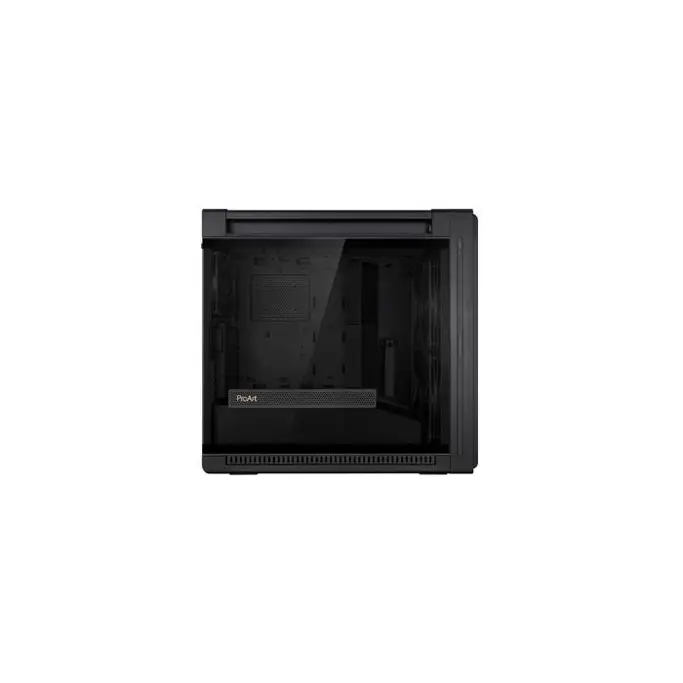

left
closed, glass
right
closed, partially ventilation slots, ventilation slots bottom
aft
partially closed, fan grill right top, partially ventilation slots, ventilation slots right, PCI slots (8x horizontal)

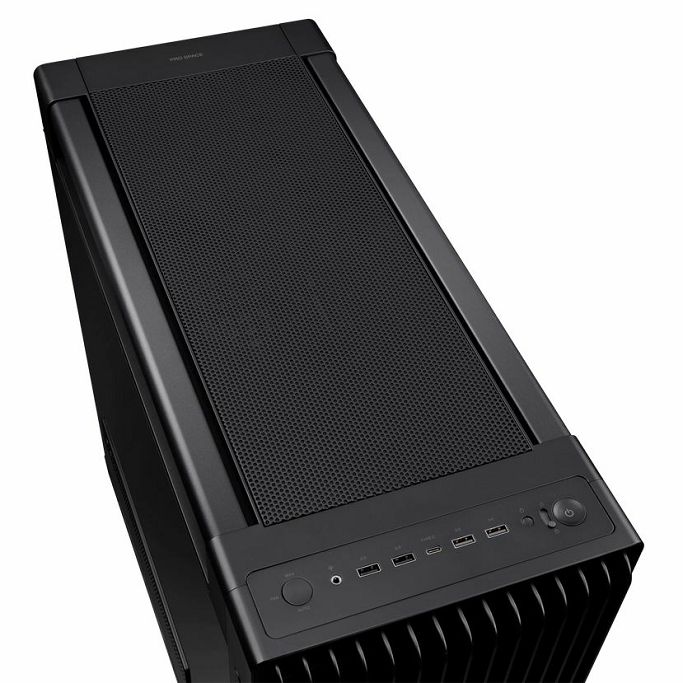

front I/O position
Housing side: front, Height: top, position: centered
Motherboard-Alignment
motherboard-Alignment: to left
Special features
incl. fan control, infrared sensor, Cable Management, dust filter, transport wheels, graphics card vertical mountable (optional), Graphics Cards mounting, side panel window made out of glass
note to E-ATX
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
