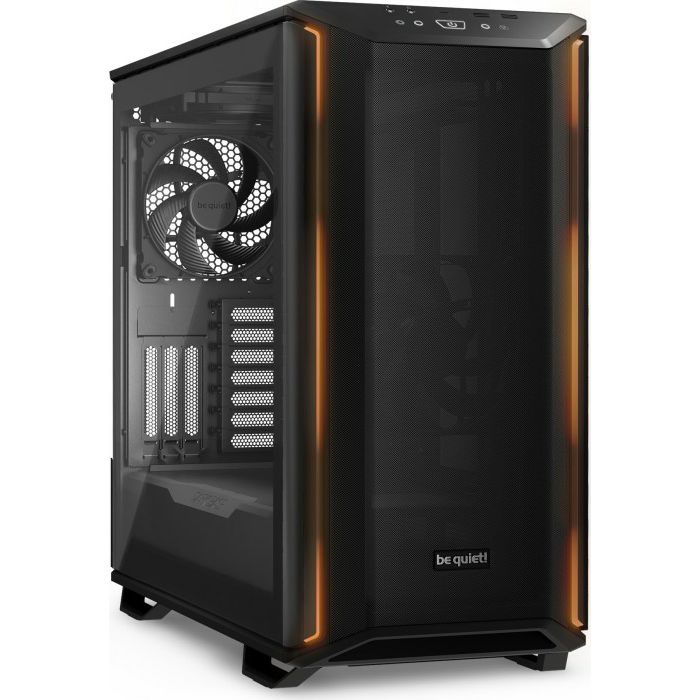

Be quiet! Midi Tower Dark Base 701 Black, glass window, BGW58

external
not available
Internal
1x 3.5" (transverse, HDD cage), 2x 3.5", 2x 2.5", 1x 2.5" (optional), 2x 3.5" (optional)
Connectors
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x 3.5mm jack (Line-Out), 1x 3.5mm jack (Line-In)
PCI-slots
10 (3x Riser Card)
Fan(s) (front)
1x 140mm, 1900rpm, 2.36mmH2O, 133.2m3/?h (78.39 CFM), 29.3dB(A) or 3x 140mm (optional)
Fan(s) (rear)
1x 140mm, 1900rpm, 2.36mmH2O, 133.2m3/?h (78.39 CFM), 29.3dB(A)
Fans (left)
not available
Fans right
not available
Fan(s) (top)
1x 140mm, 1900rpm, 2.36mmH2O, 133.2m3/?h (78.39 CFM), 29.3dB(A) or 3x 140mm (optional)
Fan(s) (bottom)
1x 140mm (optional)
Fans (other)
not available
radiator sizes
120/?140/?240/?280/?360mm front, 120/?140/?240/?280/?360mm top, 120mm rear
Motherboard
to ATX (274mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x10.8")
Power supply
ATX (max. 250mm deep)
Power supply position
bottom
CPU Coolers
max. 185mm height
Graphics Cards
max. 430mm
Colour
black, inside black; Herstellerbezeichnung: Black

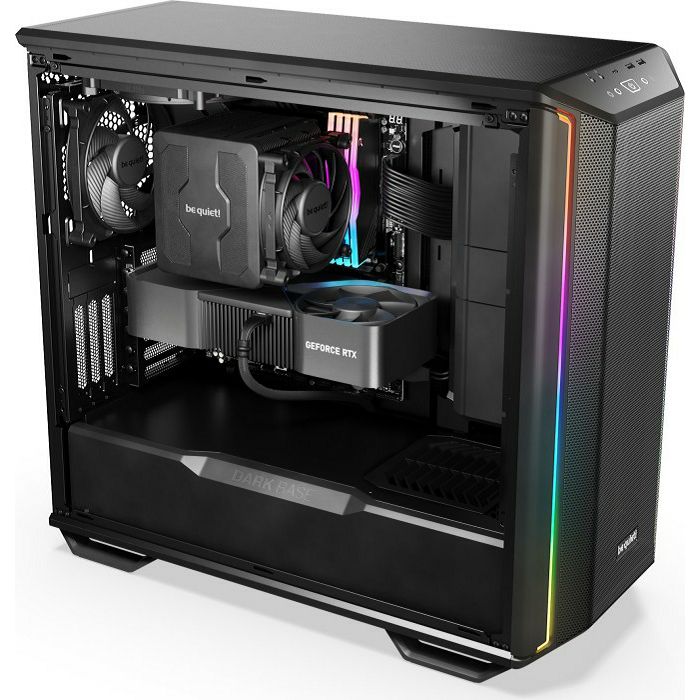

Lighting
RGB-Header 3-Pin ARGB (+5V/?DATA/?GND), integrated LED control, integrated RGB-LED lighting

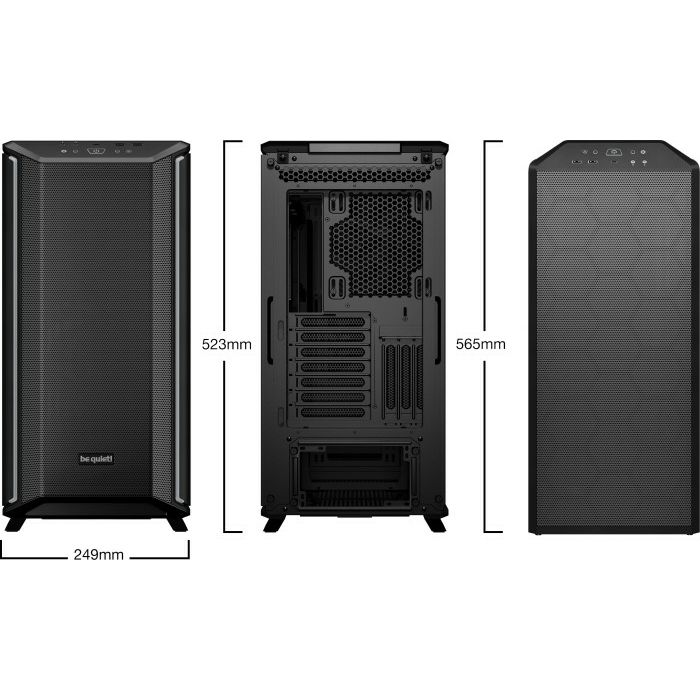

Dimensions (WxHxD)
249x523x565mm (with stands), 249x495x565mm (without stands)
Capacity
73.58l (with stands), 69.64l (without stands)
Weight
12.80kg
Type
Midi-Tower

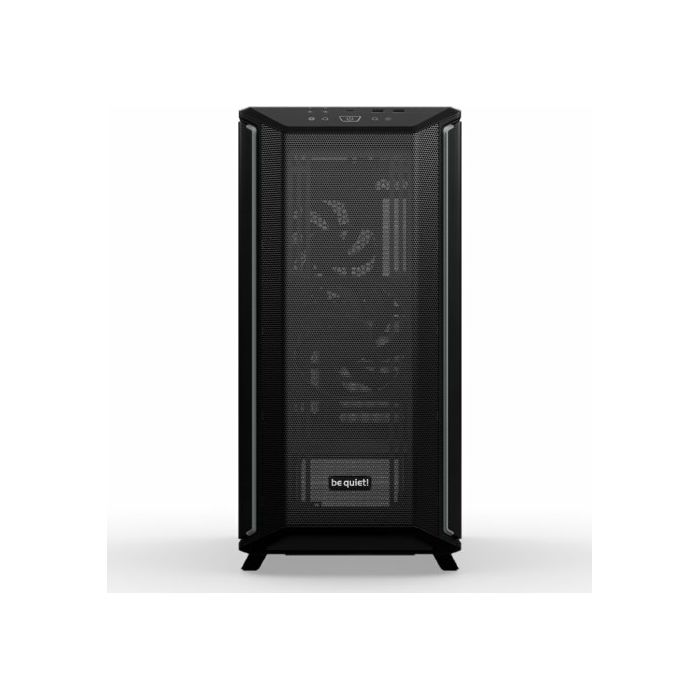

front
Mesh, dust filter inside
above
Mesh, mainly fan grill
below
partially closed, mainly fan grill, dust filter outdoor
left

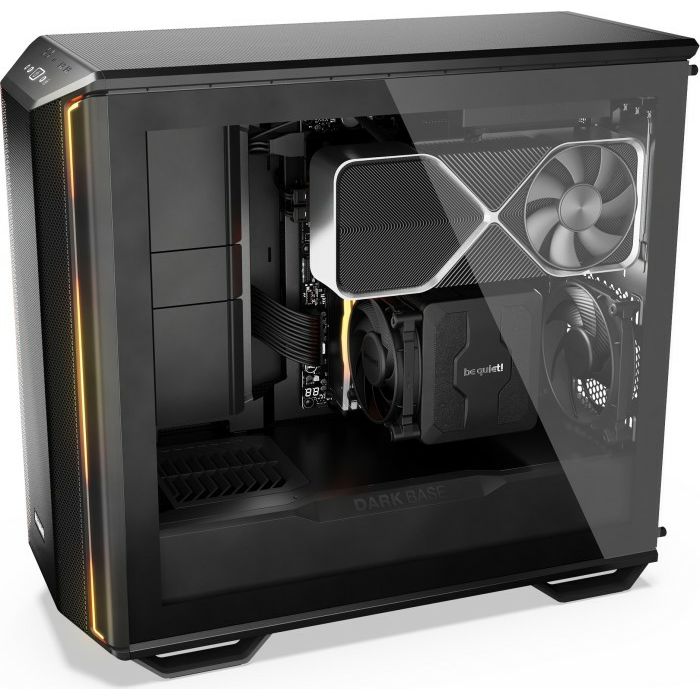

closed, glass
right

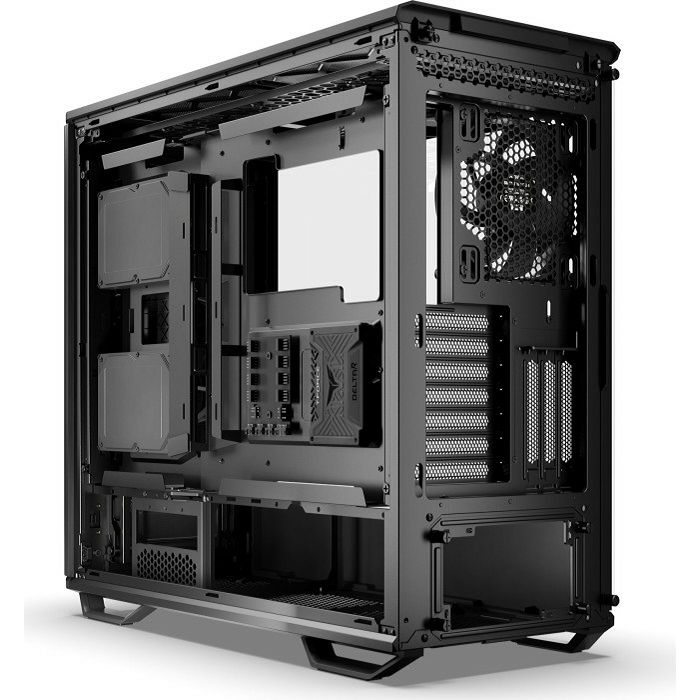

Mesh
aft
partially closed, fan grill right top, PCI slots (7x horizontal, 3x vertical)

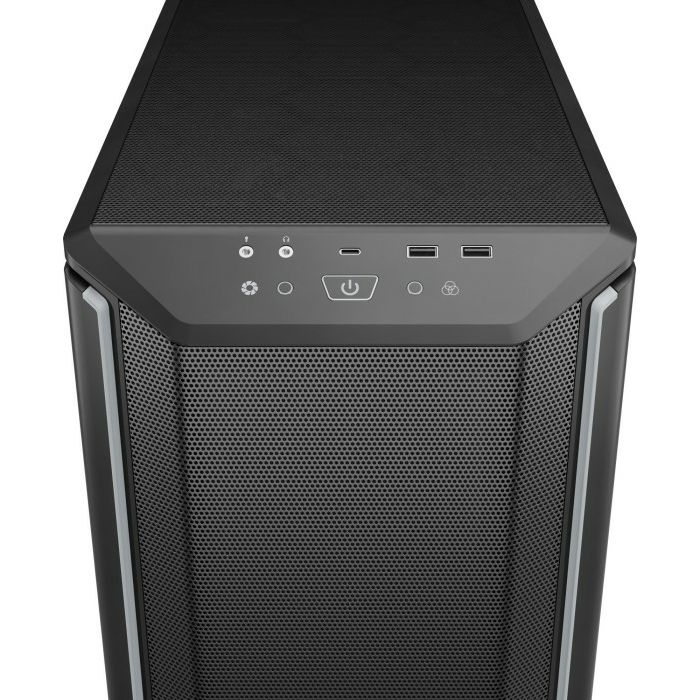

front I/O position
Housing side: top, Height: front, position: centered

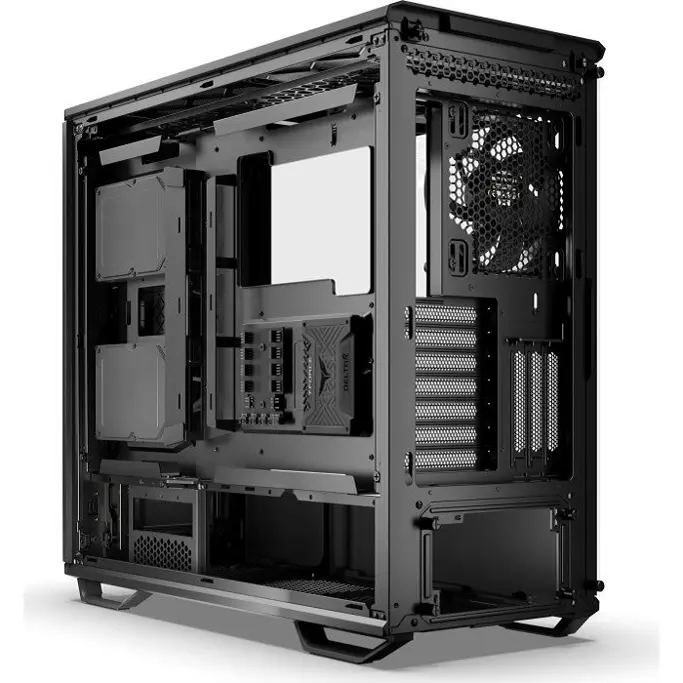

Motherboard-Alignment
motherboard-alignment modular: to right or to left; Connectors: connectors rear
Special features
integrated fan control, motherboard sled, graphics card vertical mountable, side panel window made out of glass
note to E-ATX
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
