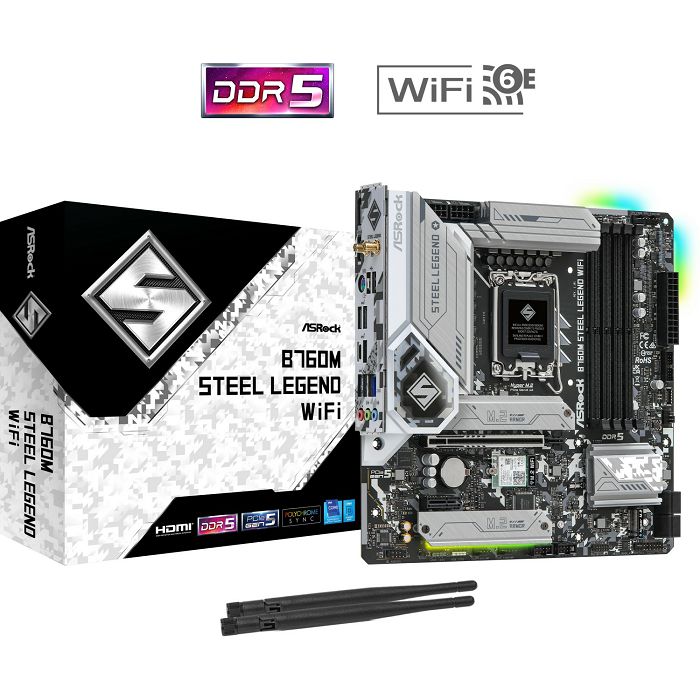

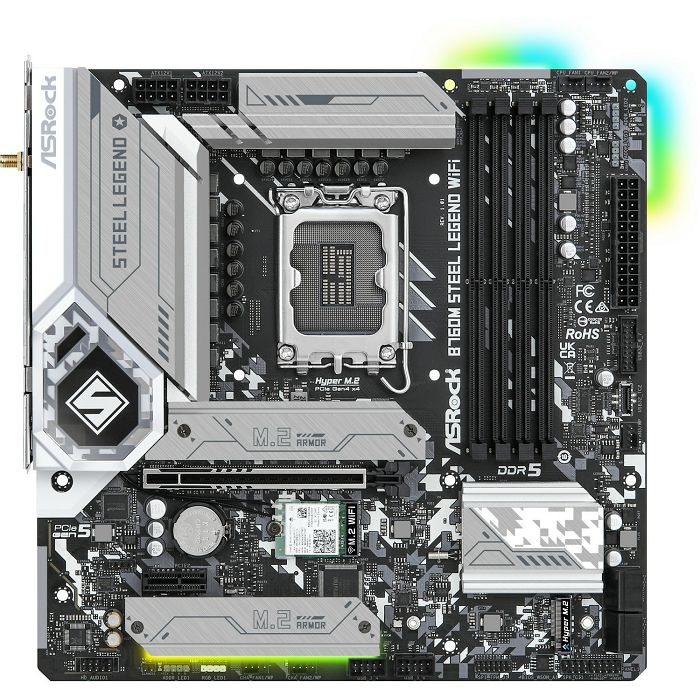

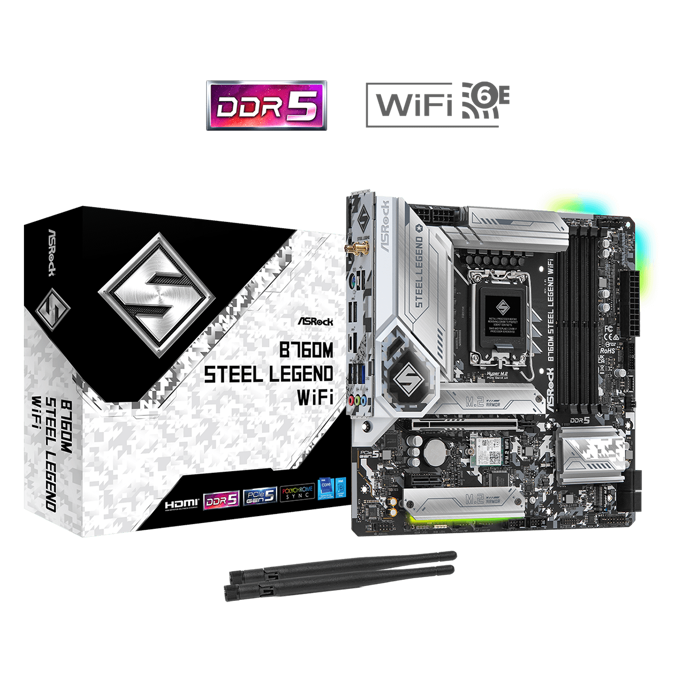

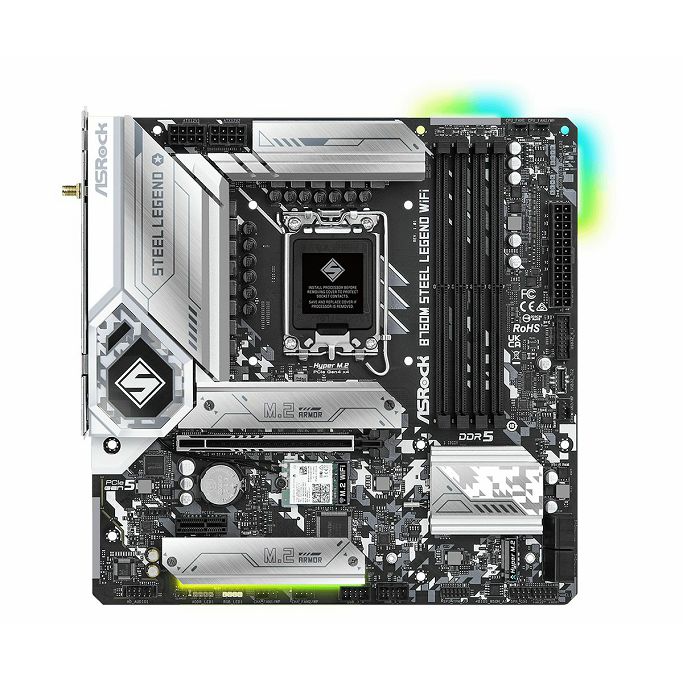

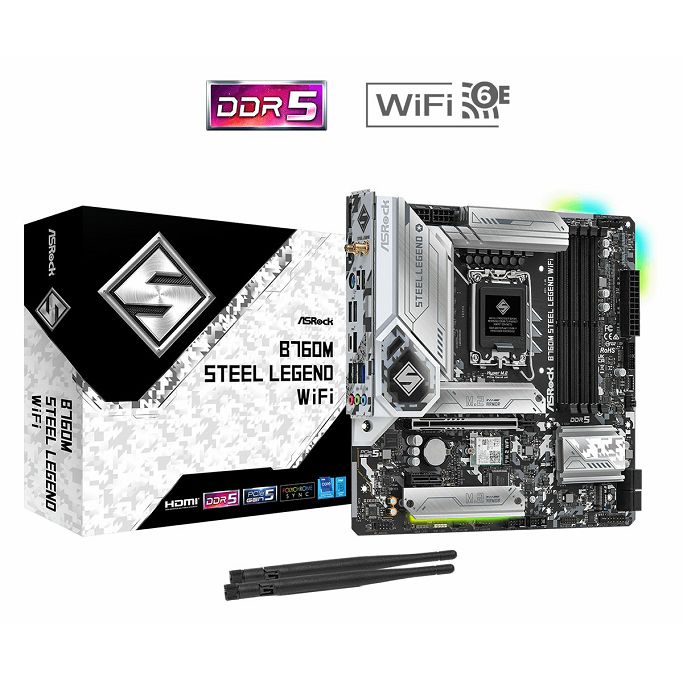

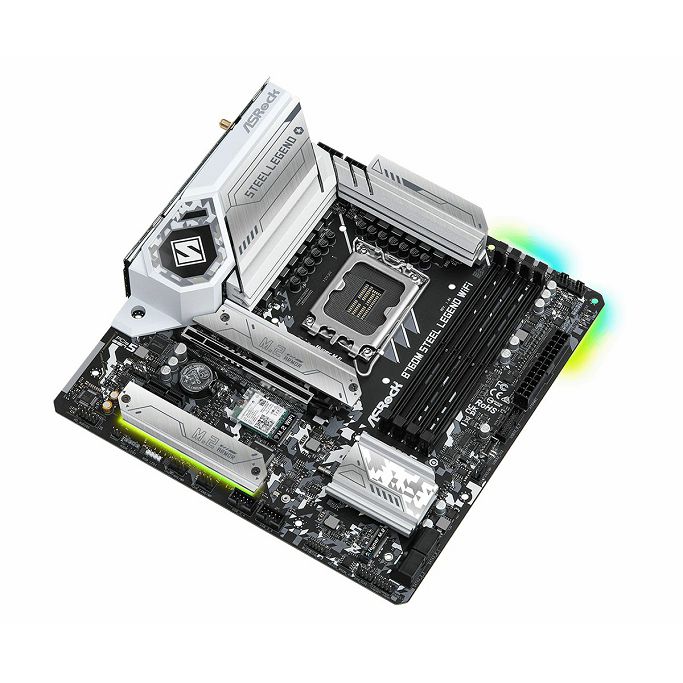

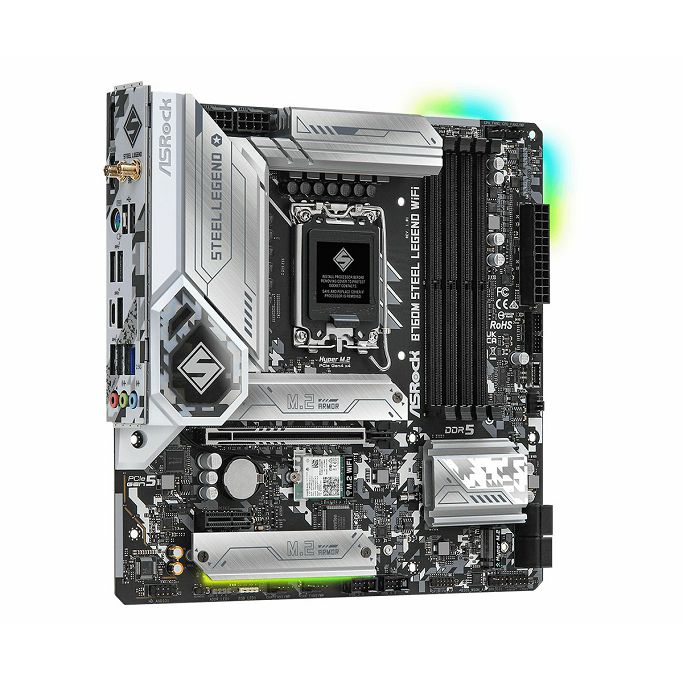

Asrock B760M Steel Legend WiIFi, DDR5, Intel B760, s.1700, 90-MXBL70-A0UAYZ

shape factor µATX
Socket Intel 1700
chipset Intel B760
CPU-Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x1, 3x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/E-Key (PCIe/Intel CNVi, 2230, occupied with WiFi+BT module)

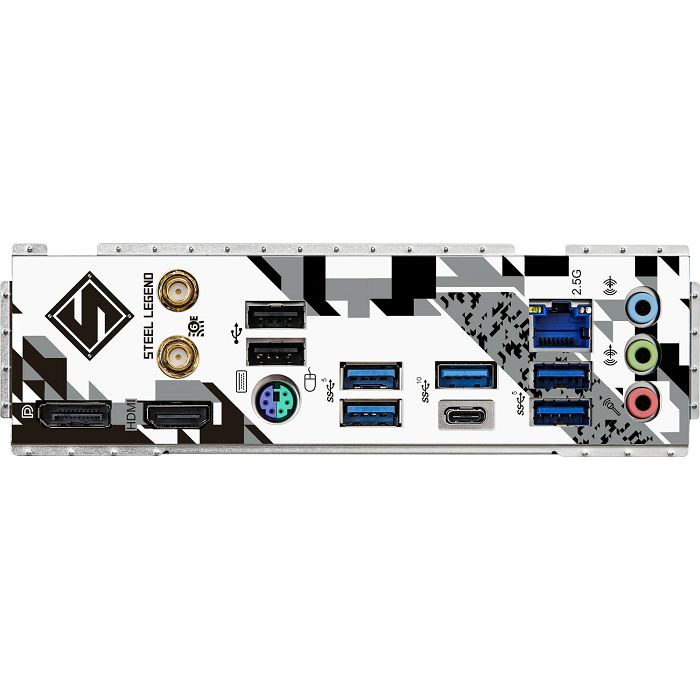

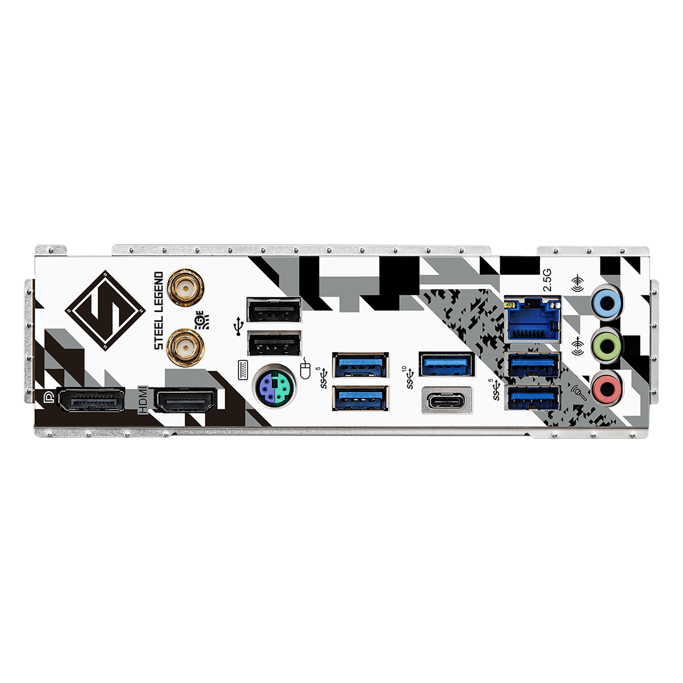

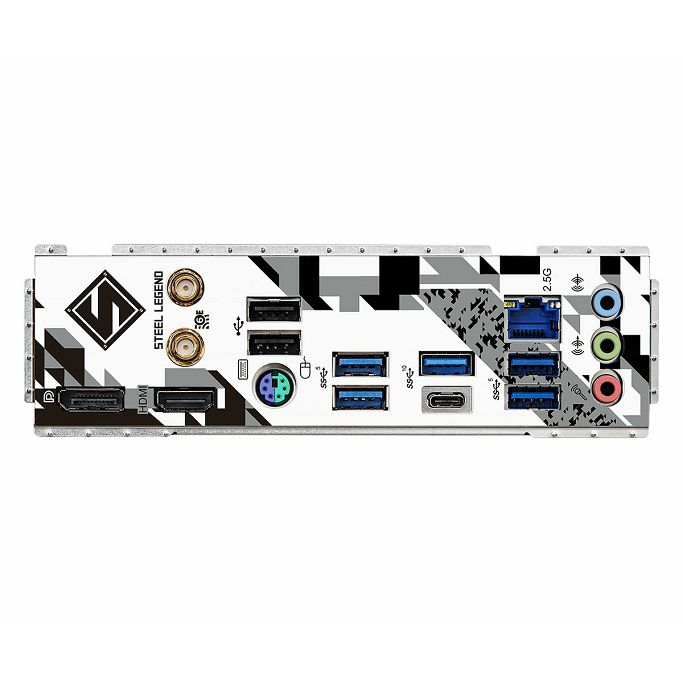

external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 1x PS/2-Combo, 2x antenna connector (RP-SMA)
Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x TPM-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header, 1x eDP-Header
Header Cooling 1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 3x fan/pump 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/Switches not available
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
RAID level 0/1/5/10 (B760)
Multi-GPU not available
Power connections 1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM 13 virtual phases (12+1), 7 real phases (6+1), PWM-Controller: RT3628AE (max. 9 phases)
MOSFETs CPU 12x 50A SiC654
MOSFETs SoC 1x 50A SiC654
Lighting RGB, 3 zones (page right, page top, M.2-cooler)
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), 2x M.2-passive cooler, I/O-shield integrated, onboard TPM 2.0 support (Intel PTT)
