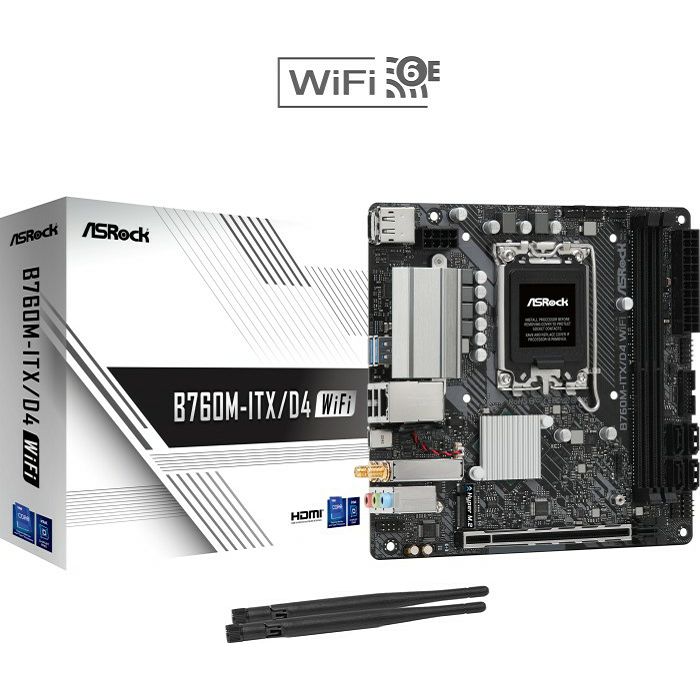

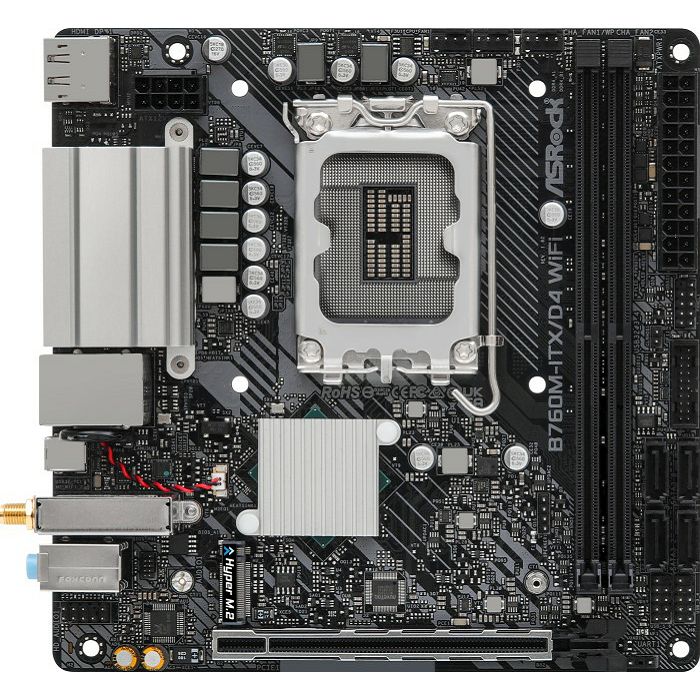

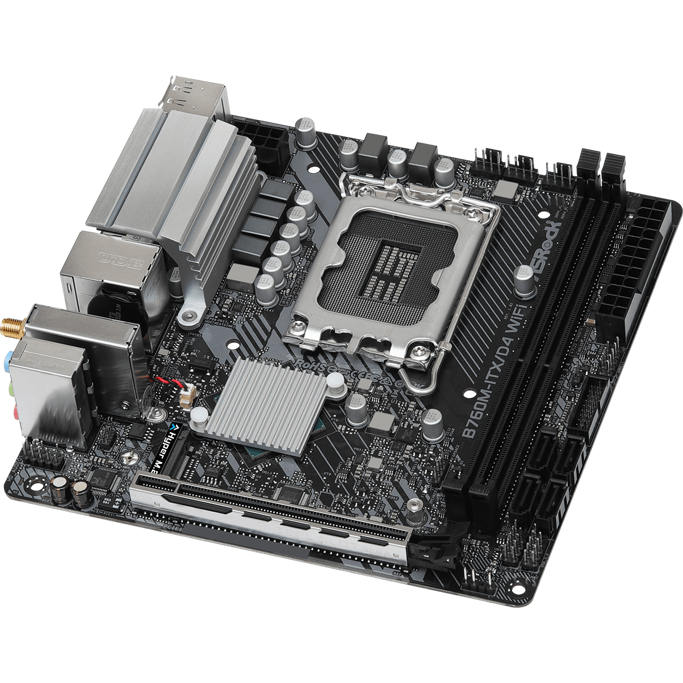

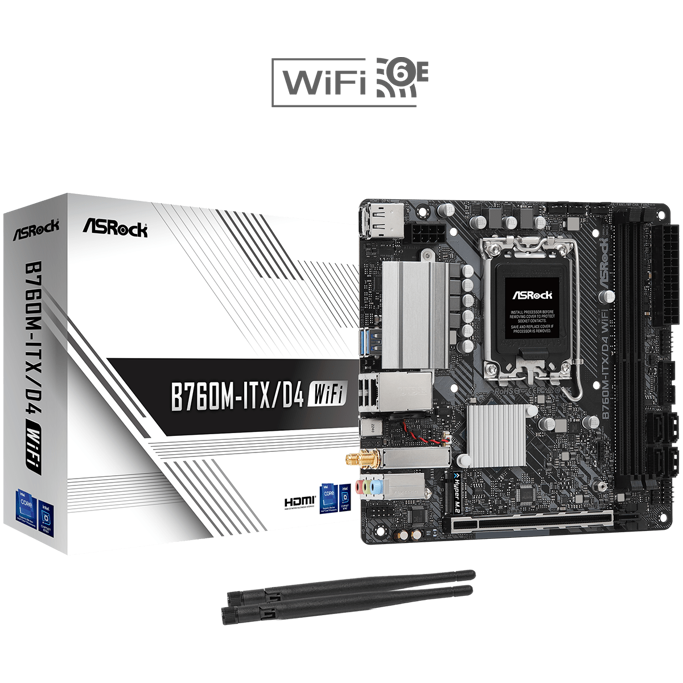

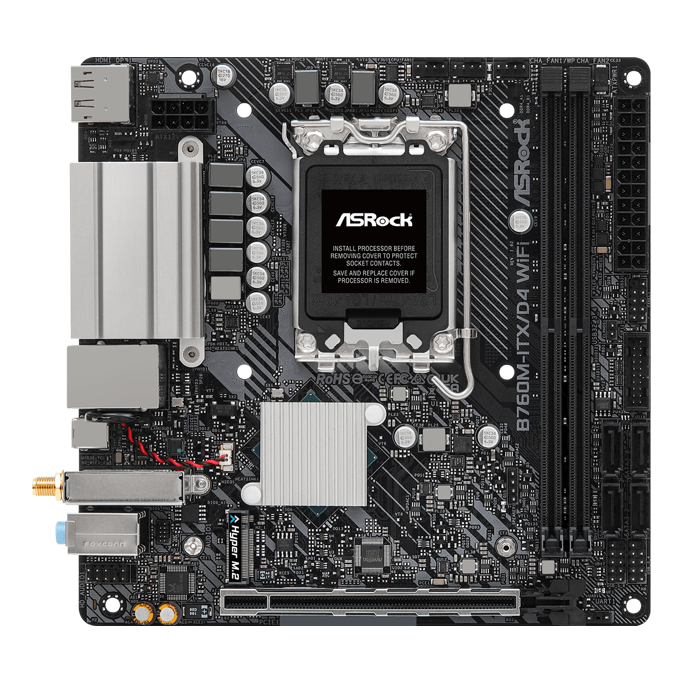

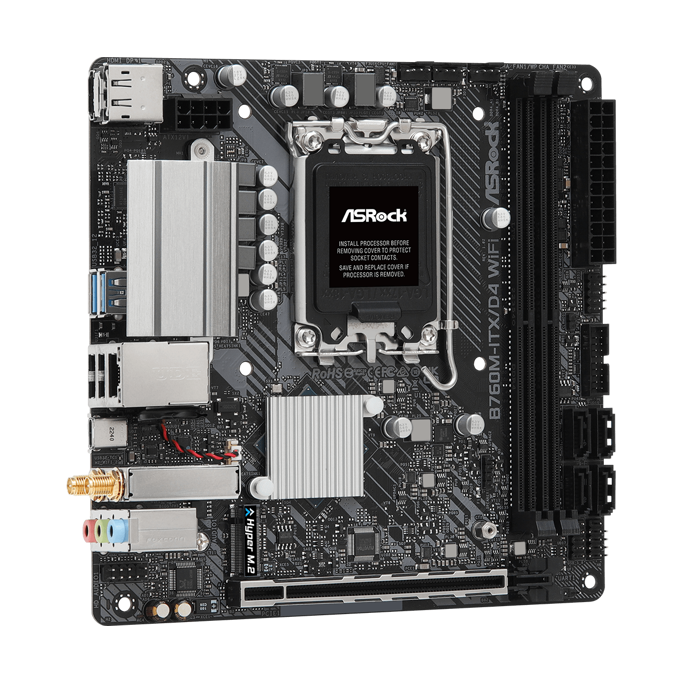

Asrock B760M-ITX/D4 WiFi, DDR4, Intel B760, s.1700, mini itx, 90-MXBKY0-A0CAYZ, 90-MXBKY0-A0AYZ

Form factor Mini-ITX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR4 DIMM, dual PC4-42666U/DDR4-5333 (OC), max. 64GB (UDIMM)
Expansion slots 1x PCIe 4.0 x16, 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/E-Key (PCIe/Intel CNVi, 2230, assigned with WiFi+BT module)

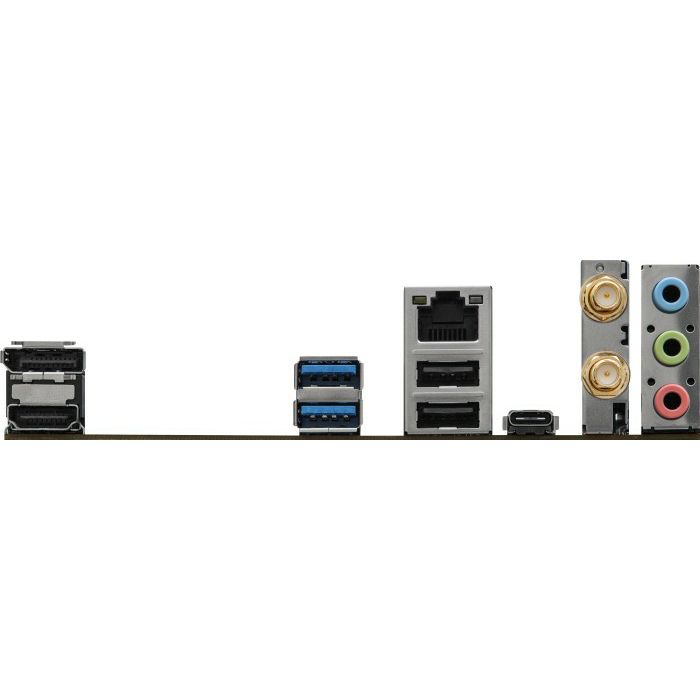

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 2x antenna connector (RP-SMA)
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760)
Header Cooling 1x CPU fan 4-pin, 1x fan 4-pin, 1x fan/pump 4-pin
Header Lighting N/A
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless Wi-Fi 6E (Wi-Fi 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
RAID Level 0/1/5/10 (B760)
Multi-GPU N/A
Electricity connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 6 virtual phases (5+1), 6 real phases (5+1), PWM controller: RT3628AE (max. 9 phases)
MOSFETs CPU 5x 50A SiC654
MOSFETs SoC 1x 50A SiC654
Lighting N/A
BIOS 1x 16MB (128Mb)
Particularities Audio+solid capacitors, onboard TPM 2.0 support (Intel PTT)
