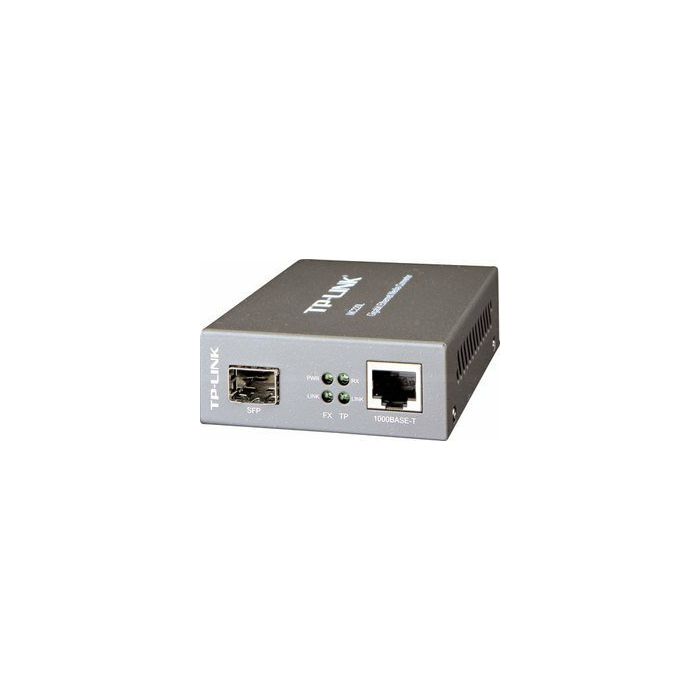

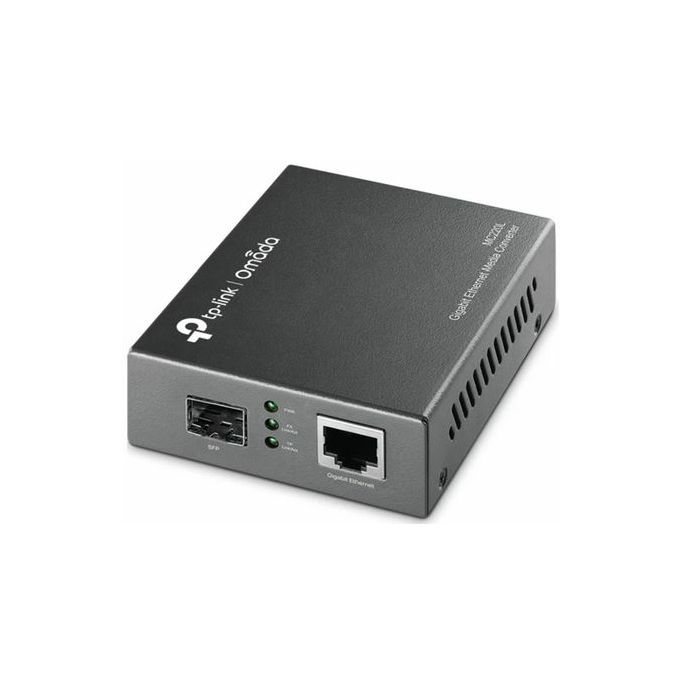

TP-Link MC220L Gigabit SFP Media Converter

Opis/specifikacija:

Features
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- FX port support hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply

Specification
- Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
- Basic Function:
* Full Duplex Flow Control (IEEE 802.3x)
* Extends fiber distance up to 0.5km using 50/125um fiber
- Ports:
1 Gigabit SFP port
1 1000M RJ45 port (Auto MDI/MDIX)
- Wave Length: Depends on the used SFP module
- Network Media 1000BASE-FX: Multi-mode/Single-mode SFP module
- Network Media 1000BASE-T:
* UTP category 5, 5e, 6 cable (maxium 100m)
* EIA/TIA-568 100? STP (maximum 100m)
- LED Indicators: PWR, LINK, RX
- Dimensions (W×D×H): 94.5×73×27 mm)
- Power Supply: External Power Adapter
- Environment:
* Operating Temperature: 0-40 (32-104)
* Storage Temperature: -40 - 70 (-40 - 158)
* Operating Humidity: 10%-90% non-condensing
* Storage Humidity: 5%-90% non-condensing
