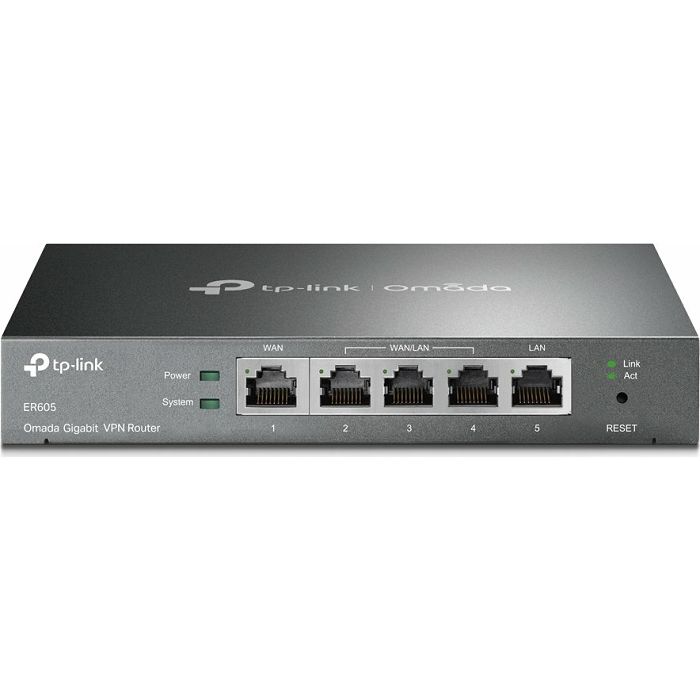

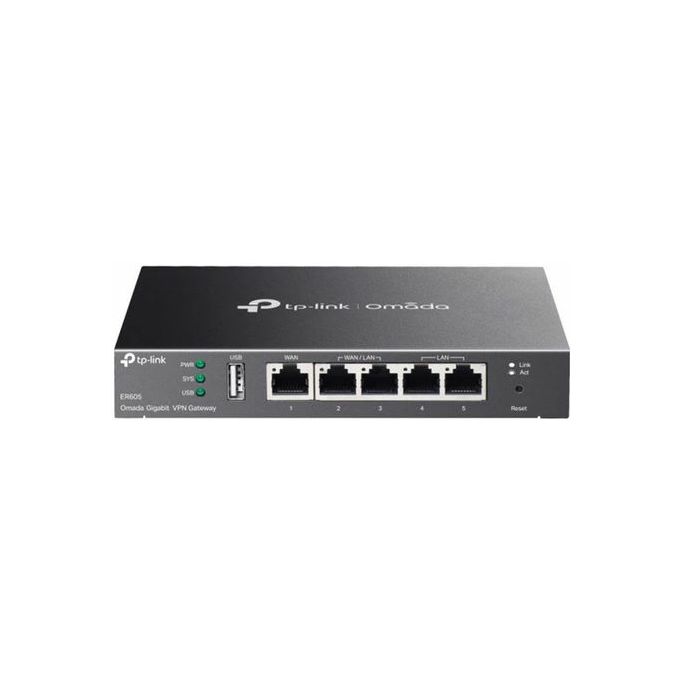

TP-Link ER605 Omada Gigabit VPN Router

Opis/specifikacija:

Features
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Five Gigabit Ports: High-speed wired connectivity
- Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN, 16× L2TP, and 16× PPTP VPN connections
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data

Specification
HARDWARE FEATURES
- Standards and Protocols:
* IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
* TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
- Interface:
* 1 Fixed Gigabit WAN Port
* 1 Fixed Gigabit LAN Port
* 3 Changeable Gigabit WAN/LAN Ports
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100? STP (Max 100m)
* 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100? STP (Max 100m)
* 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Button: Reset Button
- Power Supply: External 9V/0.9A DC Adapter
- Flash: SPI 16MB
- DRAM: 128 MB
- LED: PWR, SYS, WAN, LAN
- Dimensions ( W x D x H ): 158×101×25mm

PERFORMANCE
- Concurrent Session: 25,000
- IPsec VPN Throughput: 41.5 Mbps

BASIC FUNCTIONS
- WAN Connection Type:
* Static/Dynamic IP
* PPPoE
* PPTP
* L2TP
- MAC Clone: Modify WAN/LAN MAC Address†
- DHCP:
* DHCP Server/Client
* DHCP Address Reservation
* Multi-net DHCP
* Multi-IP Interfaces
- VLAN: 802.1Q VLAN
- IPTV: IGMP v2/v3 Proxy

ADVANCED FUNCTIONS
- ACL: IP/Port/Protocol/Domain Name Filtering
- Advanced Routing:
* Static Routing
* Policy Routing
- Bandwidth Control:
* IP/Port-based Bandwidth Control
* Guarantee & Limited Bandwidth
- Load Balance:
* Intelligent Load Balance
* Application Optimized Routing
* Link Backup (Timing§, Failover)
* Online Detection
- NAT:
* One-to-One NAT§
* Multi-Net NAT
* Virtual Server
* Port Triggering§
* NAT-DMZ
* FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
- Security:
* SPI Firewall
* VPN Passthrough
* FTP/H.323/PPTP/SIP/IPsec ALG
* DoS Defence, Ping of Death
* Local Management
- Session Limit: IP-based Session Limit

VPN
- IPsec VPN:
* 20 IPsec VPN Tunnels
* LAN-to-LAN, Client-to-LAN
* Main, Aggressive Negotiation Mode
* DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
* IKEv1/v2*
* MD5, SHA1 Authentication Algorithm
* NAT Traversal (NAT-T)
* Dead Peer Detection (DPD)
* Perfect Forward Secrecy (PFS)
(These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller)
- PPTP VPN:
* PPTP VPN Server
* 10 PPTP VPN Clients
* 16 Tunnels
* PPTP with MPPE Encryption
- L2TP VPN:
* L2TP VPN Server
* 10 L2TP VPN Clients
* 16 Tunnels
* L2TP over IPSec
- OpenVPN:
* OpenVPN Server
* 10 OpenVPN Clients
* 16 OpenVPN Tunnels

SECURITY
- Filtering: WEB Group Filtering, URL Filtering, Web Security
- ARP Inspection:
* Sending GARP Packets
* ARP Scanning
* IP-MAC Binding
- Attack Defense
* TCP/UDP/ICMP Flood Defense
* Block TCP Scan (Stealth FIN/Xmas/Null)
* Block Ping from WAN
- Access Control:Source/Destination IP Based Access Control

AUTHENTICATION
- Web Authentication:
* No Authentication
* Simple Password
* Hotspot(Local User/Voucher/SMS/Radius)
* External Radius Sever
* External Portal Sever
* Facebook

MANAGEMENT
- Omada App: Yes
- Centralized Management:
* Omada Cloud-Based Controller
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
- Maintenance:
* Time Setting
* Diagnostic
* Firmware Upgrade
* Factory Defaults/Reboot
* Backup&Restore
* System Log
* Remote Management
* Statistics
* Controller Settings
* SNMP
- Management Features:
* Automatic Device Discovery
* Intelligent Network Monitoring
* Abnormal Event Warnings
* Unified Configuration
* Reboot Schedule
* Captive Portal Configuration
* ZTP (Zero-Touch Provisioning)

OTHERS
- Certification: CE,FCC,RoHS
- Package Contents:
* Gigabti VPN Router ER605
* Power Adapter
* RJ45 Ethernet Cable
* Quick Installation Guide
- Environment:
* Operating Temperature: 0–40 ?
* Storage Temperature: -40–70 ?
* Operating Humidity: 10–90% RH non-condensing
* Storage Humidity: 5–90% RH non-condensing
