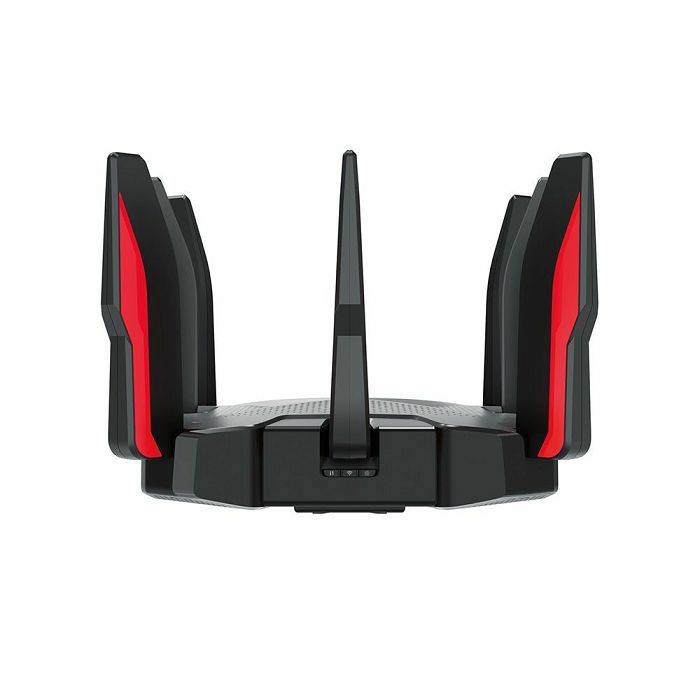

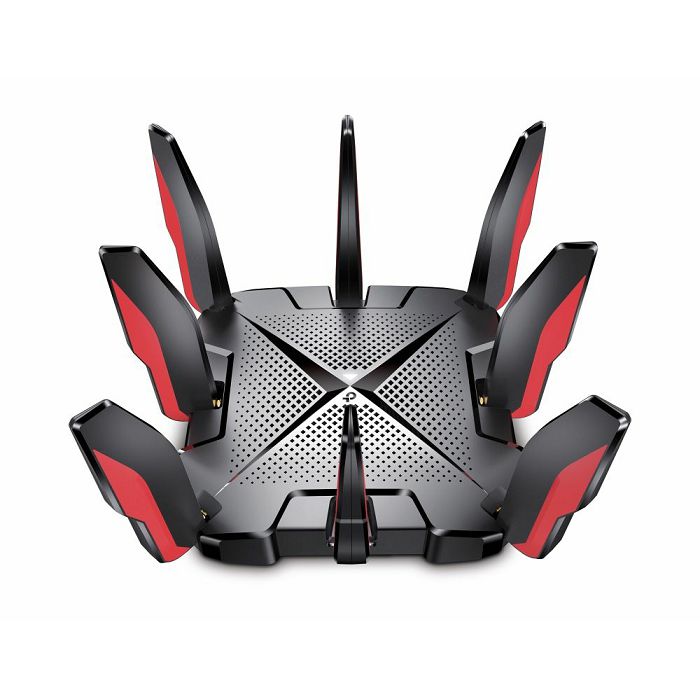

TP-Link Archer GX90, AX6600 Tri-Band Wi-Fi 6 Gaming Router, 8× Antennas, Beamforming

WIRELESS

Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High

Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

Working Modes

Router Mode
Access Point Mode

HARDWARE


Processor 1.5 GHz Quad-Core CPU

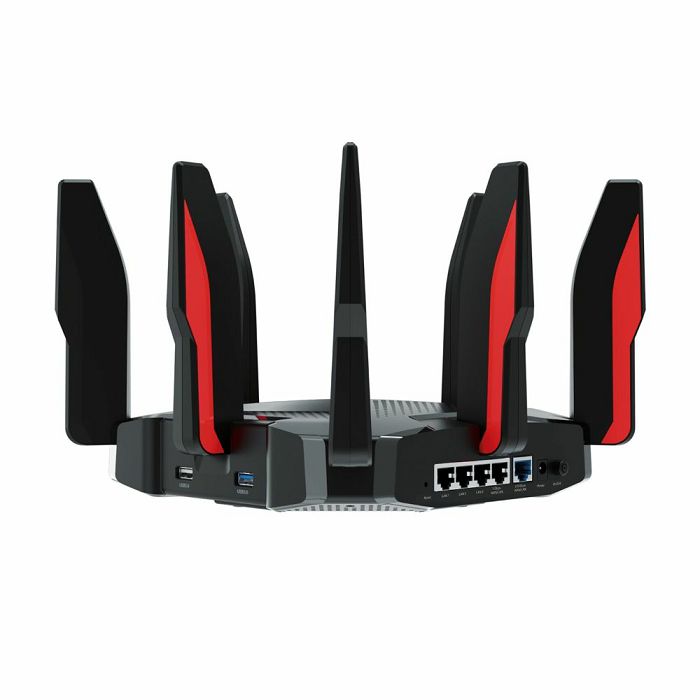

Ethernet Ports
1× 2.5 Gbps WAN/LAN Port
1× Gigabit WAN/LAN Port
3× Gigabit LAN Ports

USB Support
1× USB 3.0 Port
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

SECURITY

WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

Guest Network
2× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server OpenVPN
PPTP
SOFTWARE
Protocols
IPv4
IPv6

Game Center
Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection

OneMesh™

OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link

Parental Controls

HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
Game Accelerator QoS.
QoS by Device
HomeCare™ QoS
QoS by Application

Cloud Service

Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP

IPTV

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP

Address Reservation
DHCP Client List
Server

DDNS

TP-Link
NO-IP
DynDNS

Management
Tether App
Webpage

OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS
Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
