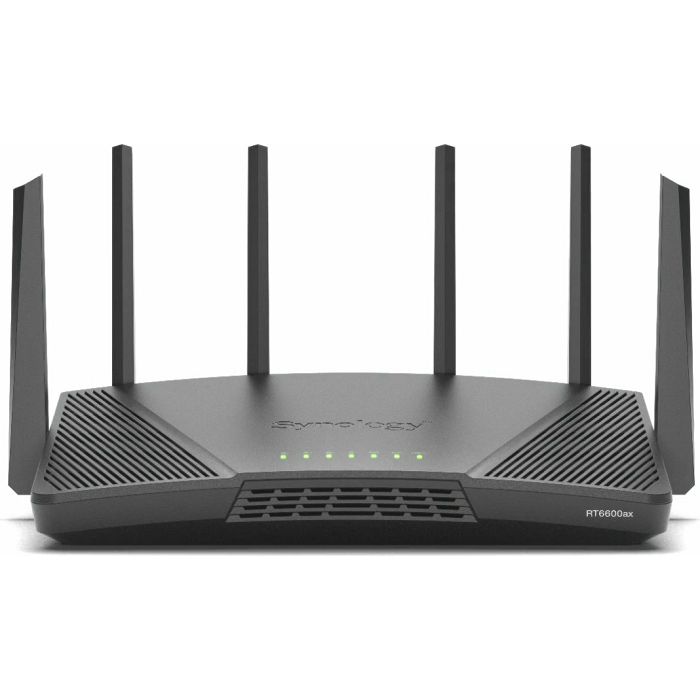

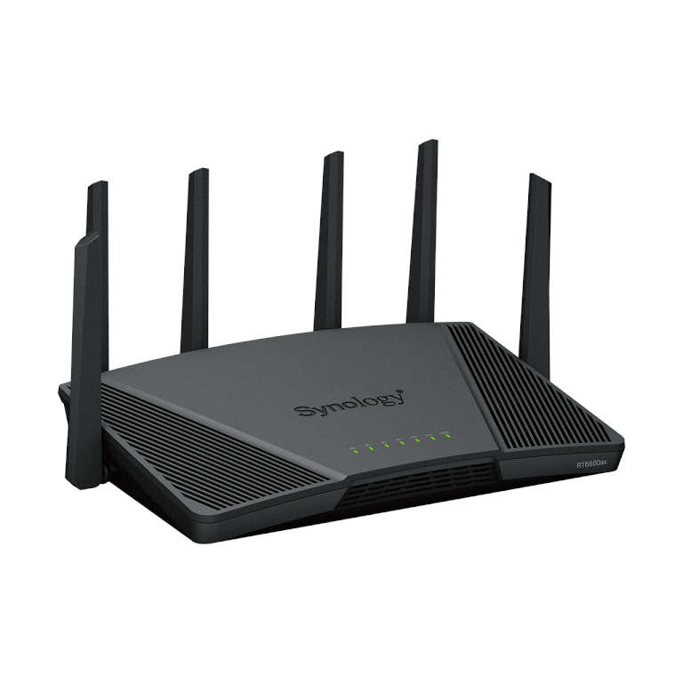

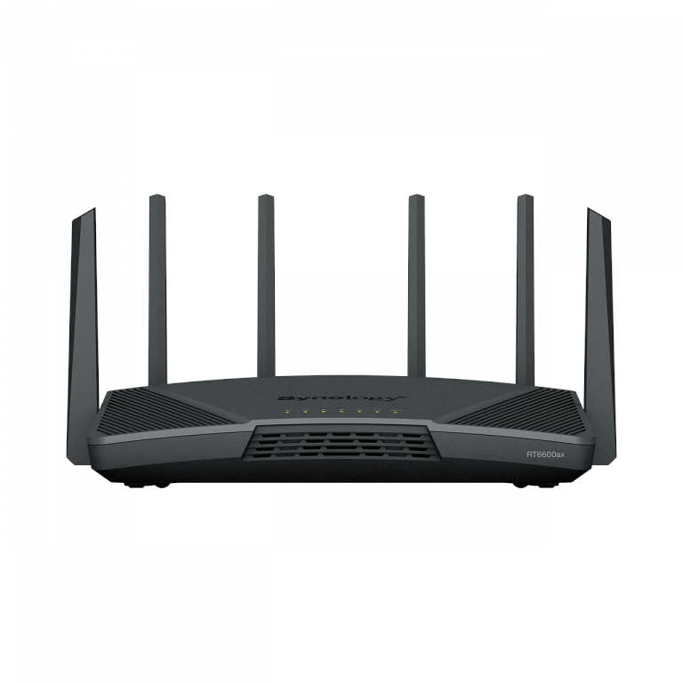

Synology RT6600ax Tri-Band Wi-Fi 6 Router, SYRT6600AX

Ultrafast and secure wireless connectivity for your home, office, and everything in between
Tri-band Wi-Fi for easy distribution of your devices between radios, optimizing range and performance while avoiding bottlenecks.
Quad-core 1.8 GHz processor for snappy management and fast connection speeds, even with multiple devices connected and all features enabled.
Support for the new 5.9 GHz band, resulting in more dependable high-speed networks using clearer 80 and 160 MHz channels.

CPU
Quad core 1.8 GHz
Hardware Acceleration Engine
Layer 4 / Layer 7
Memory
1 GB DDR3
Antenna Type


4x4 MIMO Omni-directional high-gain dipole (5GHz)
2x2 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)

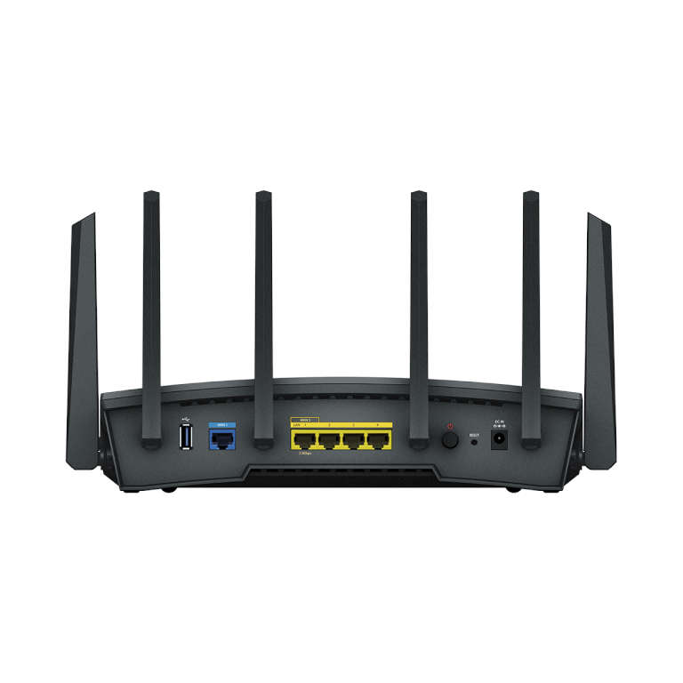

LAN Port


Gigabit (RJ-45) x 3 (Dual WAN)
2.5GbE (RJ-45) x 1

WAN Port


Gigabit (RJ-45) x 1
2.5 GbE (RJ-45) x 1 (Dual WAN)

External Ports
USB 3.2 Gen 1 x 1 (5V, 0.9A power output)
IEEE 802.11ax


IEEE 802.11a/b/g/n/ac/ax
5GHz-1: 4800Mbps
5GHz-2: 1200Mbps
2.4GHz: 600Mbps
4x4 160MHz
Simultaneous tri-band Wi-Fi

Wi-Fi Encryption
WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
Button and Switch
WPS, Power, Reset, Wi-Fi On/Off
Size (Height x Width x Depth)
175 mm x 320 mm x 200 mm
Notes Antennas in upright position
Weight
1.6 kg
Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification


FCC
CE
BSMI
VCCI
RCM
KC
iDA
TELEC
JATE
IC

Wi-Fi Certification


CE
FCC
NCC
RCM
iDA
TELEC
KC
IC

Warranty
2 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption*
11.11 W (Access)
6.77 W (Idle)
Environment
RoHS Compliant
Packaging Content


Main Unit X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1
