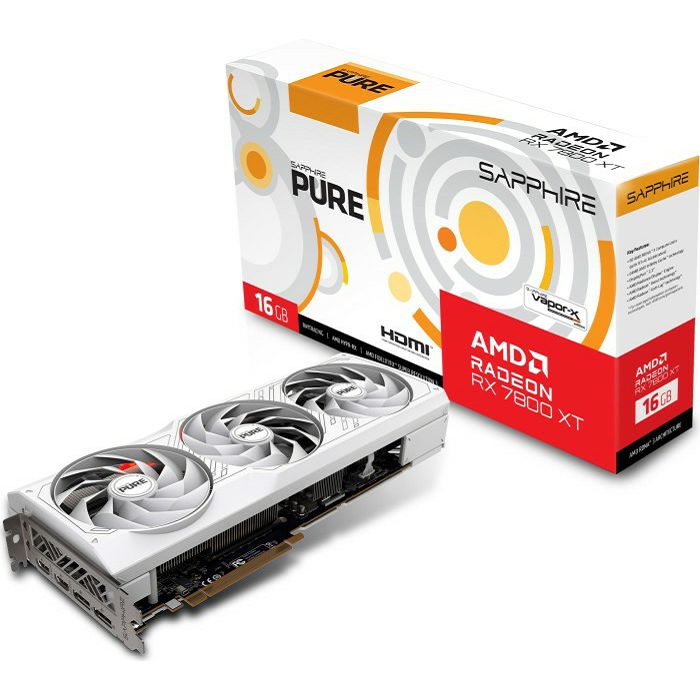

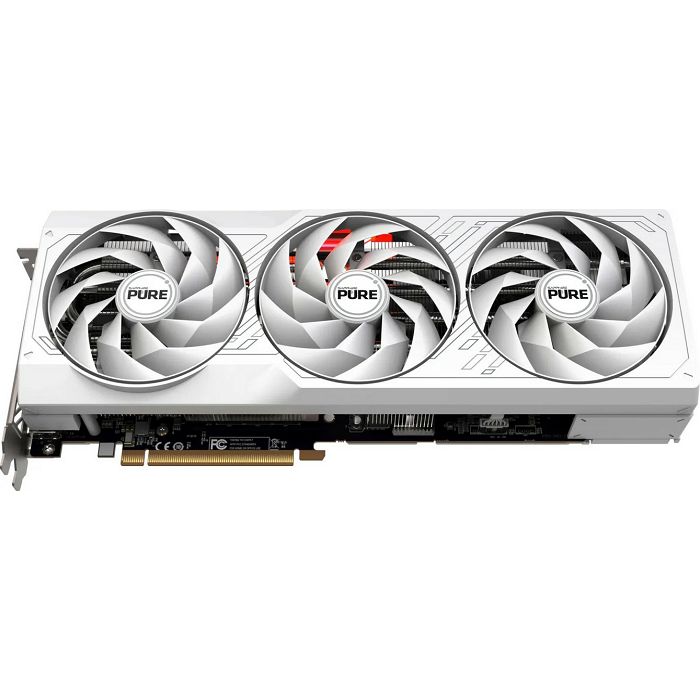

Sapphire RX7800XT, 16GB, GDDR6, White, 11330-03-20G

GPU AMD Radeon RX 7800 XT
Memory 16GB GDDR6, 256bit, 19.4Gbps, 2425MHz, 621GB/s
Overclocking +45MHz Boost, +45MHz Game
Clock Boost 2169-2475MHz
Clock Base unknown
Cooling 3x axial fans (95mm) with 0dB zero-fan mode
TDP/TGP 263W (AMD), max. 270W (Sapphire)
Power connections 2x 8-pin PCIe
Connections 2x HDMI 2.1, 2x DisplayPort 2.1
Connection PCIe 4.0 x16
Particularities Backplate, LED lighting (red)
Overall depth Triple Slot (2.5 Slots)
Dimensions 320x128.75x52.57mm (LxWxH)
Construction PCIe card (full height)
Slot bezel full height
Computing power 76.03 TFLOPS (FP16), 38.02 TFLOPS (FP32), 2.38 TFLOPS (FP64)
Chip Data
Chip Architecture RDNA 3 (from 2022/Q4)
Chip Designation Navi 32 XT
Chip Configuration 60CU (3840 ALUs / 240 TMUs / 96 ROPs), 60 RT Cores, 4MB L2 Cache, 64MB L3 Cache
Chip Manufacturing TSMC 5nm + TSMC 6nm
Chip Size 346mm2, multi-chip module (4 MCM chiplets)
Chip Functions Ray tracing, AMD Infinity Cache (64MB), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine VCN 4.0, Info
Encoding AV1, H.265, H.264
Decoding AV1, H.265, H.264, VP9
