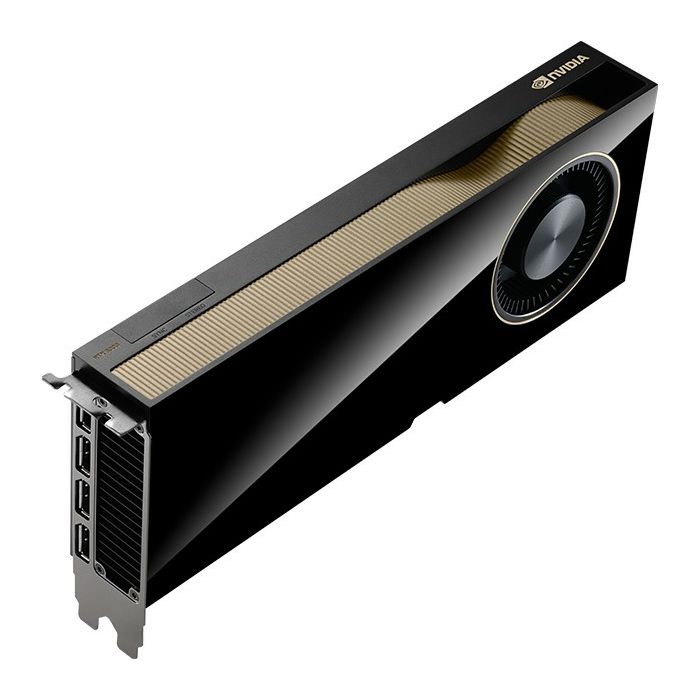

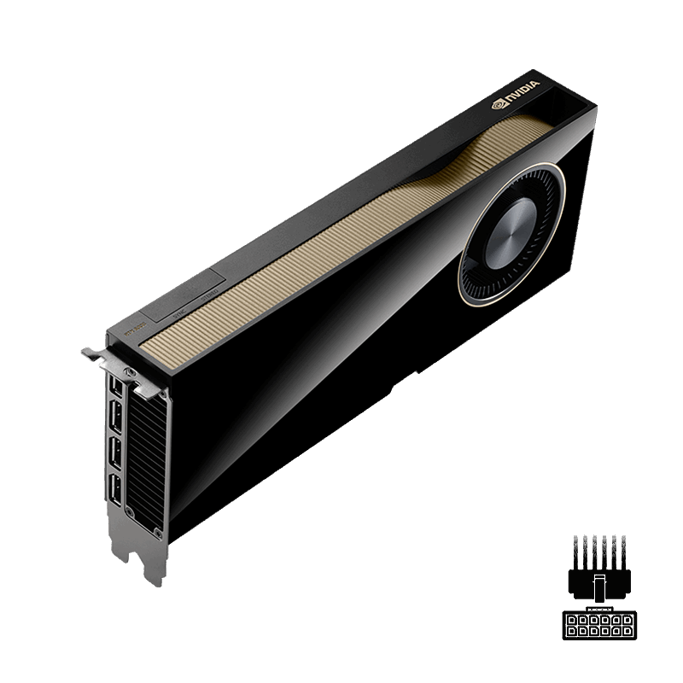

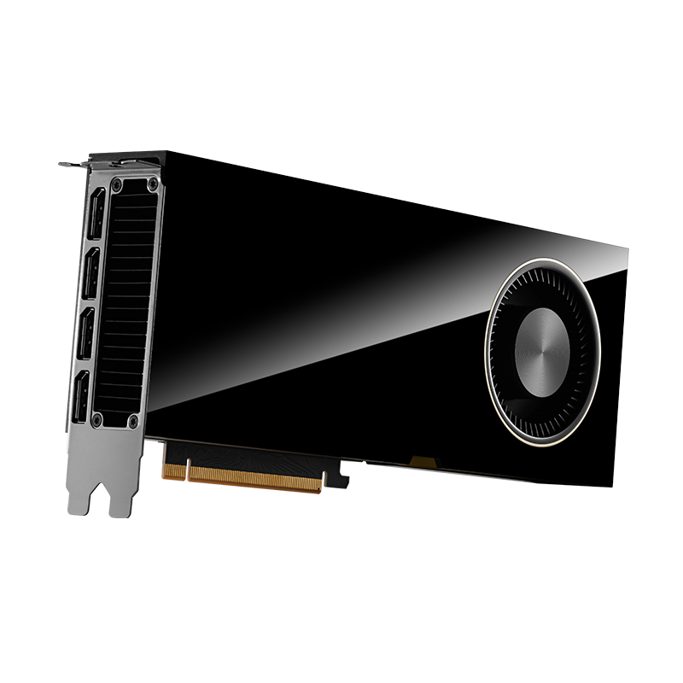

PNY RTX 6000 ADA gen., 48GB GDDR6 ECC, PCIe 4.0 x16, 4x DP 1.4a, VCNRTX6000ADA-SB

GPU NVIDIA RTX 6000 Ada Generation
Memory 48GB GDDR6 with ECC mode, 384bit, 20Gbps, 2500MHz, 960GB/s
Clock Base 915MHz
Clock Boost 2505MHz
Overclocking -
Cooling 1x Radial Fan (65mm)
TDP/TGP 300W (NVIDIA)
Power connections 1x 16-pin PCIe 5.0

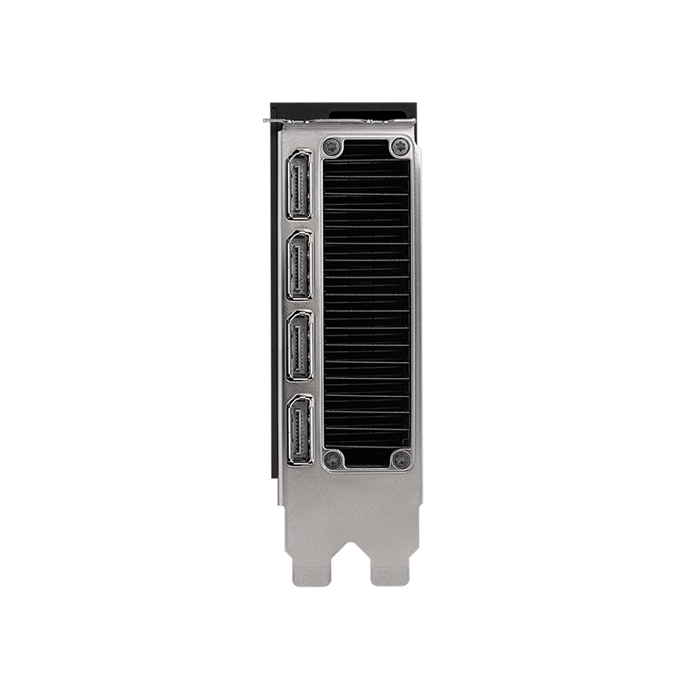

Connections 4x DisplayPort 1.4a
Connection PCIe 4.0 x16
Particularities NVIDIA Reference Design, Backplate
Overall depth Dual Slot
Dimensions 268x112mm (LxW)
Construction PCIe card (full height)
Slot bezel full height
Computing power 91.06 TFLOPS (FP16), 91.06 TFLOPS (FP32), 1.42 TFLOPS (FP64)
Chip Data
Chip Architecture Ada Lovelace (from 2022/Q3)
Chip Designation AD102
Chip Configuration 142SM (18176SP / 568TMU / 192ROP), 142 RT Cores, 568 Tensor Cores, 96MB L2 cache
Chip Manufacturing TSMC 5nm "NVIDIA 4N"
Chip Size 608mm2, monolithic, 76.3 billion transistors
Chip Functions Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), 10bit Color Channel Depth, HDCP 2.3
API support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine 3x NVENC (8th Gen, max. sessions: unrestricted), 3x NVDEC (5th Gen), Info
Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
