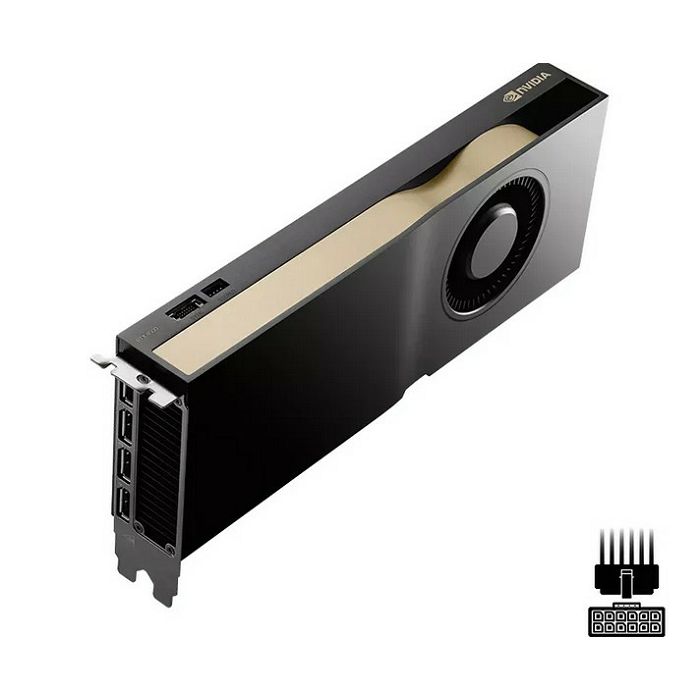

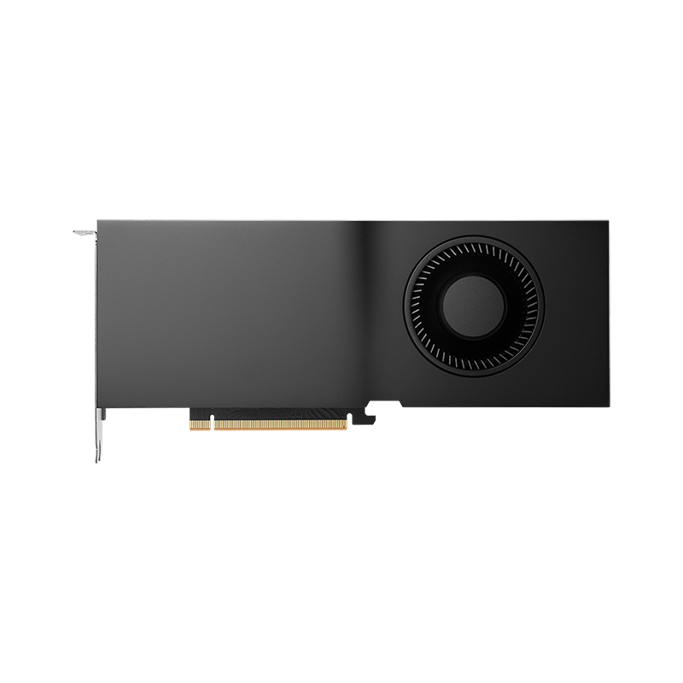

PNY RTX 4500 ADA gen., 24GB GDDR6 ECC, PCIe 4.0 x16, 4x DP 1.4a, VCNRTX4500ADA-SB

GPU NVIDIA RTX 4500 Ada Generation
Memory 24GB GDDR6 with ECC mode, 192bit, 18Gbps, 2250MHz, 432GB/s
clock Base 720MHz
clock Boost 2578MHz
overclock -
Cooling 1x radial-fan (65mm)
TDP/TGP 210W (NVIDIA)
Power connections 1x 16-Pin PCIe 5.0

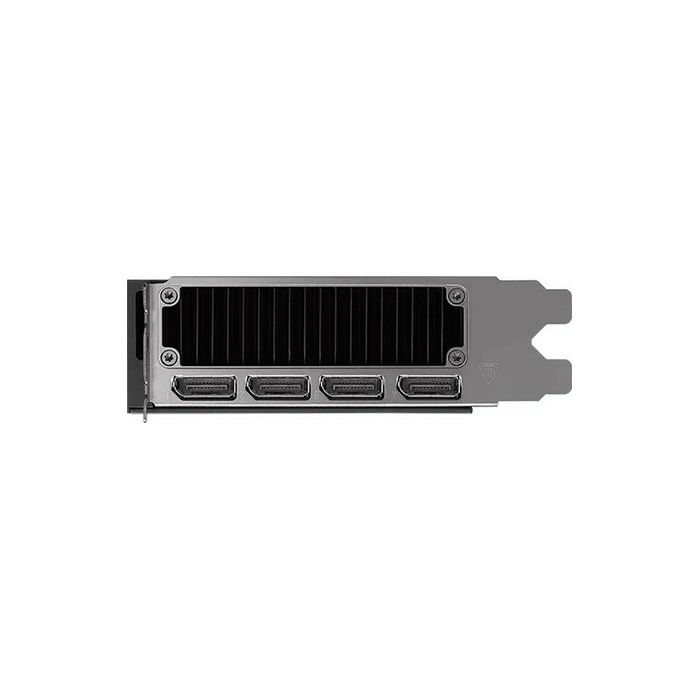

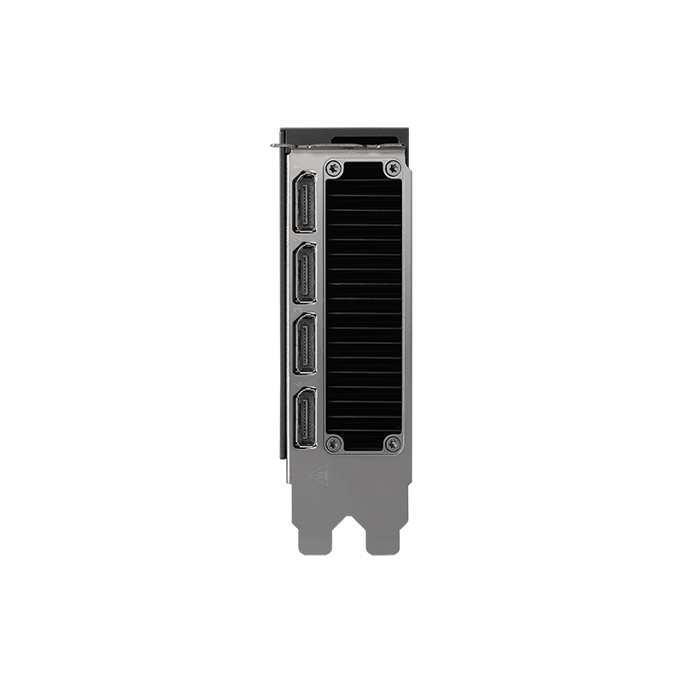

Connectors 4x DisplayPort 1.4a
Interface PCIe 4.0 x16
Special features NVIDIA-reference design, Backplate
total height Dual Slot
Dimensions 266.7x111.76mm (LxW), Weight: 1.08kg
Type PCIe card (full height)
PCI slot bracket full height
Computing power 39.6 TFLOPS (FP16), 39.6 TFLOPS (FP32), 0.62 TFLOPS (FP64)
Chip-data
Chip-Architecture Ada Lovelace (from 2022/Q3)
Chip-title AD104
Chip-Configuration 60SM (7680SP / 240TMU / 80ROP), 60 RT Cores, 240 Tensor Cores, 48MB L2 cache
Chip-Manufacturing Process TSMC 5nm "NVIDIA 4N"
Chip size 295mm2, monolithisch, 35.8 Mrd. Transistoren
Chip-functions Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), 10bit colour channel depth, HDCP 2.3
API-support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding-Engine 2x NVENC (8th Gen, max. Sessions: unbeschränkt), 2x NVDEC (5th Gen), Info
encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
Multi-GPU-Interface -
Vorstellung (series) Launch: 09.08.2023, UVP: 2250 USD (NVIDIA)
Graphics NVIDIA RTX 4500 Ada Generation - 24GB GDDR6 - desktop
Note Smallbox variant in OEM packaging and without accessories.
