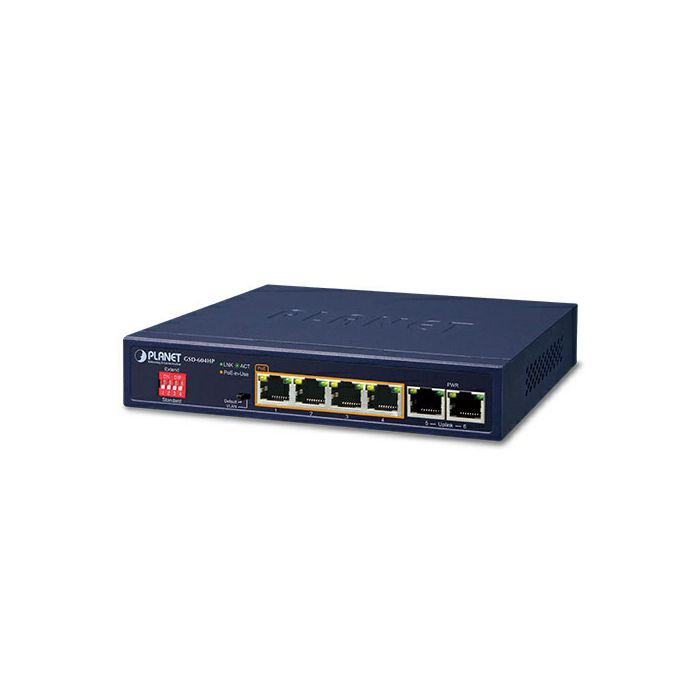

Planet GSD-604HP 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch, PLT-GSD-604HP

Hardware Specifications
Network Connector 6 10/100/1000BASE-T RJ45 auto MDI/MDIX ports
PoE Inject Port 4 ports with 802.3at/af PoE injector function (Ports1 to 4)
LED Display System: Power (Orange)
Per PoE port: PoE (Orange, port 1 to port 4)
Ethernet port: LNK(Green)
Thermal Fan Fanless design
Switch Architecture Store and Forward
MAC Address Table 4K MAC address table with auto learning function
Switch Fabric 12Gbps
Switch Throughput 8.92Mpps @64 bytes
Jumbo Packet 9K bytes
Flow Control Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
Power Requirements 54V DC, 1.3A
ESD Protection 6KV DC
Power Consumption Max. 66.69 watts, 227.5 BTU
Dimensions (W x D x H) 168 x 93 x 32mm
Weight 374g
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output Per Port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per Port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget 65 watts
Standard Conformance
EMI Safety FCC Part 15 Class A, CE
Standard Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
