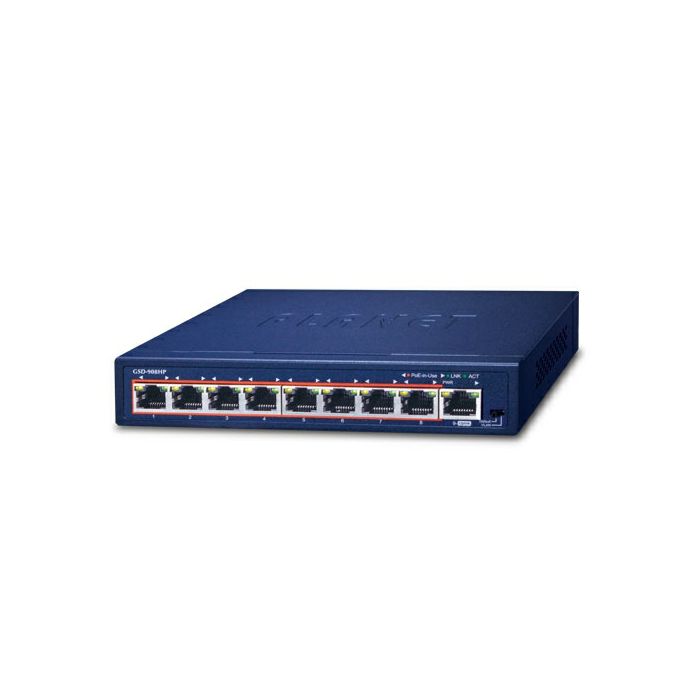

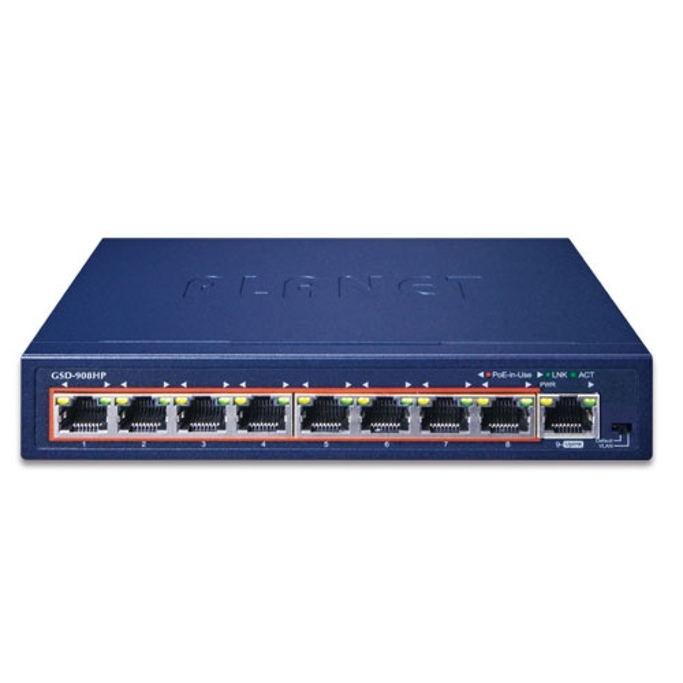

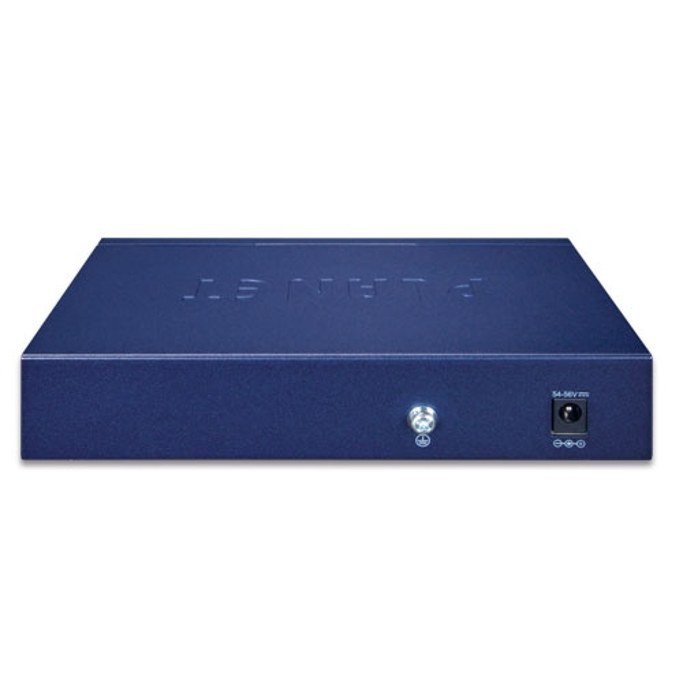

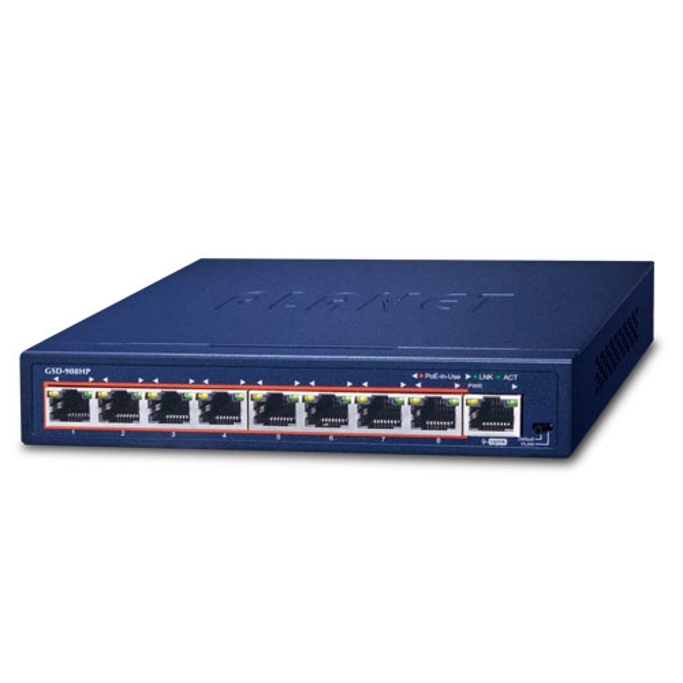

Planet GSD-908HP 8-Port Gigabit Desktop Switch 10/100/1000T 802.3at PoE + 1-Port, PLT-GSD-908HP

Hardware Specifications
Copper Port 10 10/100/1000BASE-T MDI/MDIX Ports
PoE Injector Port 8-port with 802.3af/at PoE injector function with Port-1 to Port-8
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps
Switch Throughput@64 bytes 13.4Mpps@64 bytes
MAC Address Table 2K entries, automatic source address learning and aging
Maximum Frame Size 9K bytes
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
LED Indicators System:

Power (Green)


10/100/1000BASE-T RJ45 interfaces:

10/100/1000Mbps LNK/ACT (Green)


PoE interfaces:

PoE-in-Use (Amber)

DIP Switch Selectable operation mode

Standard
VLAN
Extend

Dimensions (W x D x H) 220 x 150 x 43 mm (1U height)
Enclosure Metal
Weight 1205 g
Power Requirements AC 100~240V, 50/60Hz, 2.5A max.
Power Consumption/ Dissipation System On: Max. 4.1 watts/13.9 BTU
PoE Full Loading: Max. 124 watts/423.1 BTU
ESD Protection Contact discharge of 6KV DC
Air discharge of 8KV DC
Thermal Fan 1
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 54V DC, 600mA. max. 32 watts
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 120 watts
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
