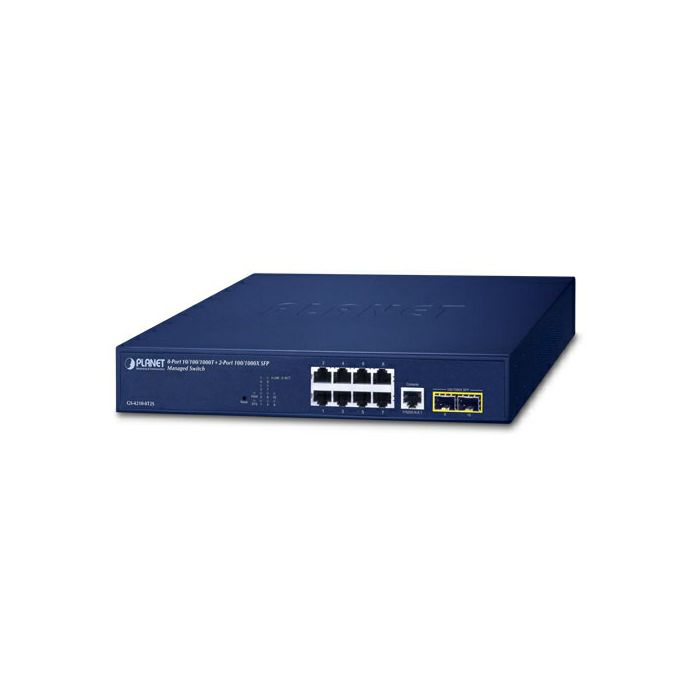

Planet GS-4210-8T2S 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch, PLT-GS-4210-8T2S

Hardware Specifications
Copper Ports 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP Ports 2 x 100/1000BASE-X SFP interfaces
Supports 100/1000Mbps dual mode and DDM
Console 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 280 x 180 x 44 mm, 1U height
Weight 1315g
Enclosure Metal
Power Requirements AC 100~240V, 50/60Hz, 2.5A, auto-sensing
Power Consumption/ Dissipation 6.8 watts/ 23.2 BTU
ESD Protection Contact Discharge 6KV DC
Air Discharge 8KV DC
Fan Fanless design
LED System:
PWR x1 (Green)
SYS x1 (Green)
Per PoE Port (Port 1 to Port 8):
LNK/ACT x1 (Green)
Per Gigabit SFP Port (Port 9 to Port 10):
100/1000 LNK/ACT x1 (Green)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps/non-blocking
Switch Throughput@64Bytes 14.88Mpps
Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10K bytes
Layer 2 Functions
Port Mirroring TX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN IEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/Static Trunk
Supports1 trunk group with 2 ports per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IPv4 IGMP (v2/v3) Snooping
IPv4 IGMP Querier
Up to 256 multicast groups
MLD Snooping IPv6 MLD (v1/v2) Snooping
Up to 256 multicast groups
QoS 8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR
Ring Supports ERPS, and complies with ITU-T G.8032
Security Functions
Access Control List IPv4/IPv6 IP-based ACL
MAC-based ACL
Security P-MAC port binding
MAC filter
Static MAC address
DHCP Snooping and DHCP Option82
DoS attack prevention
ARP inspection
IP source guard
AAA Built-in RADIUS client to co-operate with RADIUS server
Network Access Control IEEE 802.1X – Port-based authentication
RADIUS/TACACS+ user access authentication
Management Functions
Basic Management Interfaces RS232 console
Web browser
Telnet
SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System
Event Management Remote/Local Syslog
System log
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
