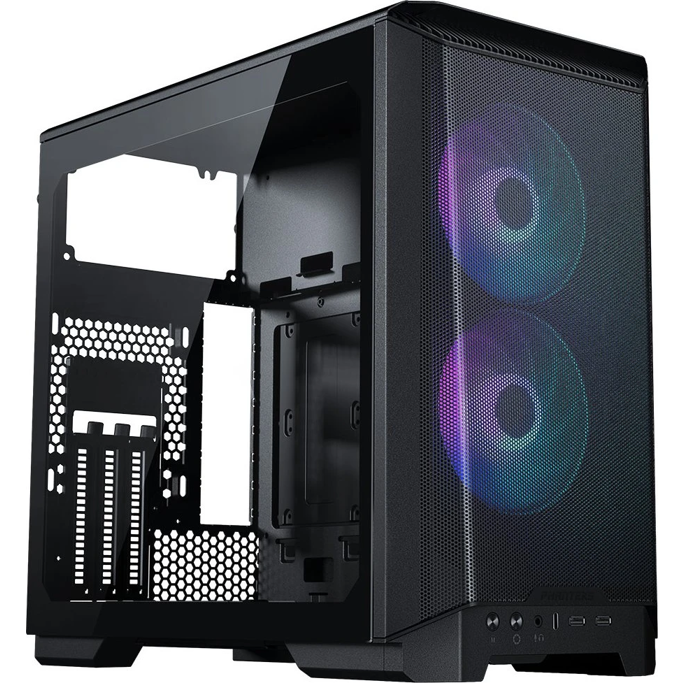

Phanteks Mini ITX Eclipse P200 Air TG Black, PH-EC200ATG_DBK01

external
not available

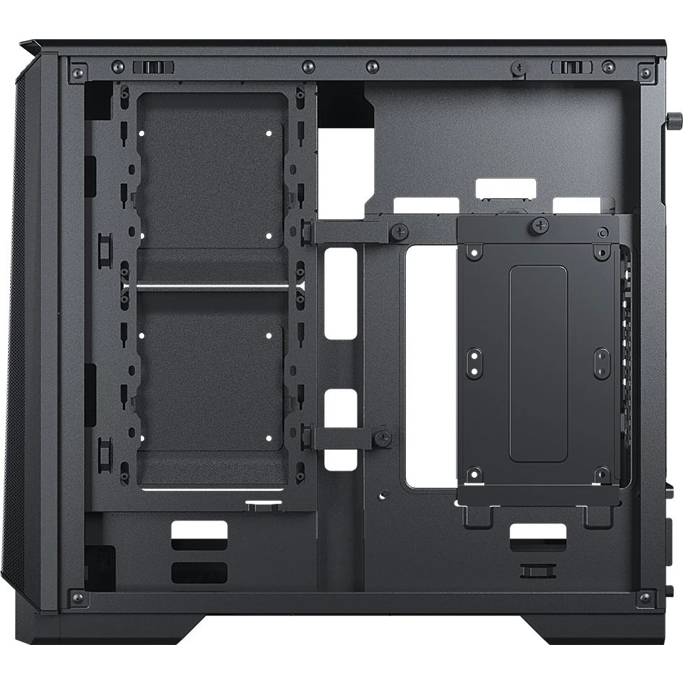

Internal
4x 2.5" or 2x 2.5" + 4x 3.5" (optional)
front I/O
1x USB-C 3.1 (10Gb/s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/s), 1x headphone/microphone
PCI-slots
3
Fan(s) (front)
2x 120mm (RGB illuminated) or 2x 120mm (optional) or 2x 140mm (optional)
Fan(s) (rear)
1x 120mm (optional)
Fans (left)
not available
Fans right
2x 120mm (optional)
Fan(s) (top)
not available
Fan(s) (bottom)
2x 120mm (optional)
Fans (other)
not available
radiator sizes
120/140/240/280mm front, not available top, 120mm rear, 120/240mm right
Motherboard
to Mini-ITX
Supported motherboards
Mini-ITX (6.7"x6.7")/mini-DTX (6.7"x8")
Power supply
ATX (max. 205mm deep)
Power supply position
top
CPU Coolers
max. 165mm height (at horizontal GPU, 72-92mm at vertical GPU)
Graphics Cards
max. 355mm
Colour
black, inside black
Lighting
RGB-Header 3-Pin ARGB (+5V/DATA/GND), integrated LED control, illuminated fan
Dimensions (WxHxD)
205x365x400mm
Capacity
29.93l
Weight
5.50kg
Type
ITX/DTX
front I/O position
Housing side: not specified, Height: not specified, position: not specified
Special features
Cable Management, dust filter, PCI-slots vertical mountable, side panel window made out of glass
