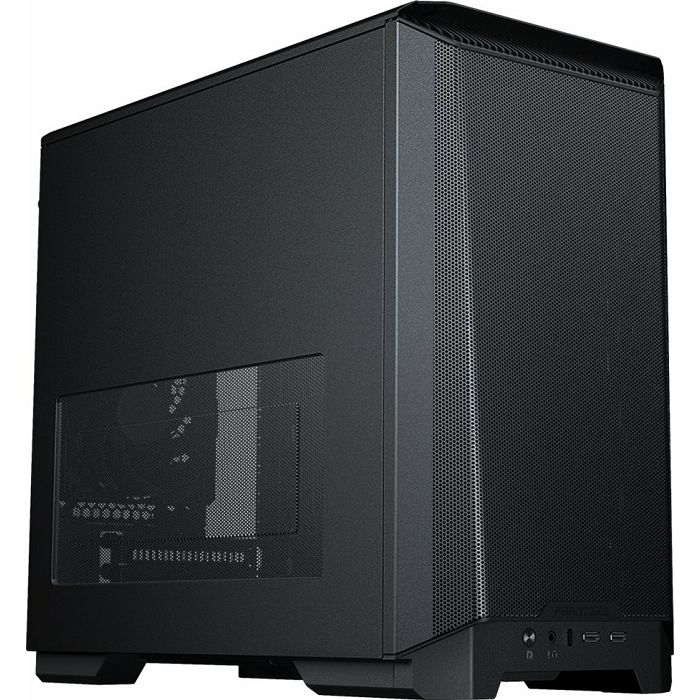

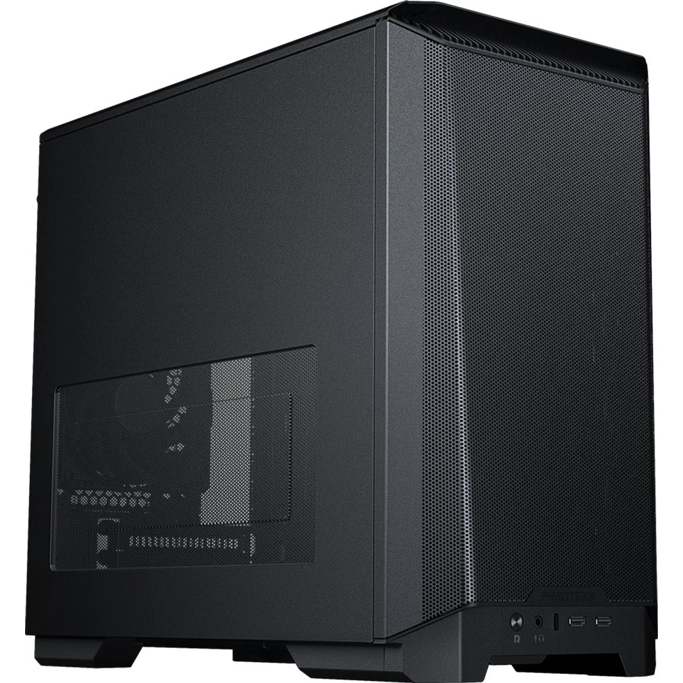

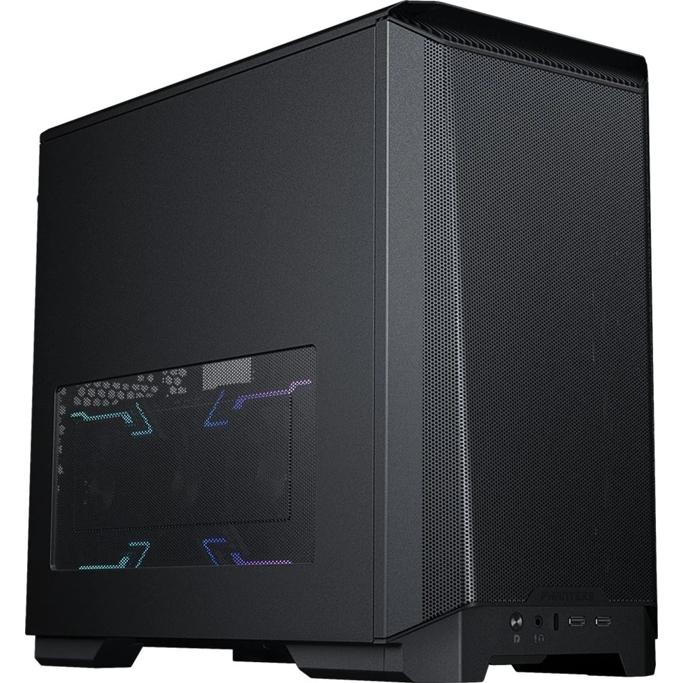

Phanteks Mini ITX Eclipse P200 Air Black, PH-EC200AC_BK01

external not available
Internal 4x 2.5" or 2x 2.5" + 4x 3.5" (optional)

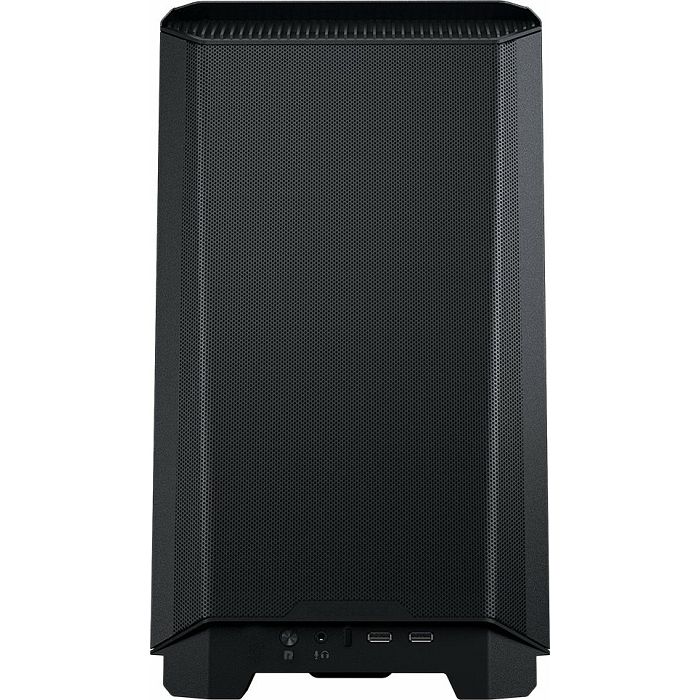

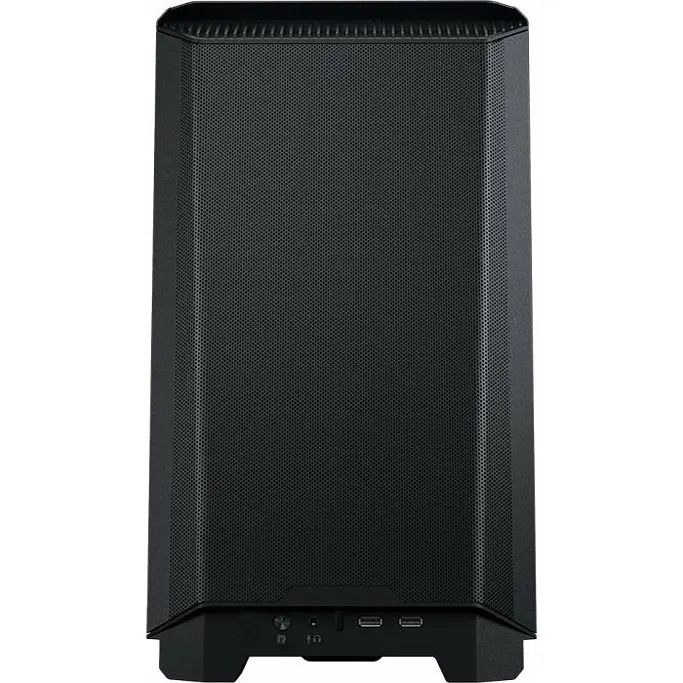

front I/O 2x USB-A 3.0 (5Gb/s), 1x headphone/?microphone

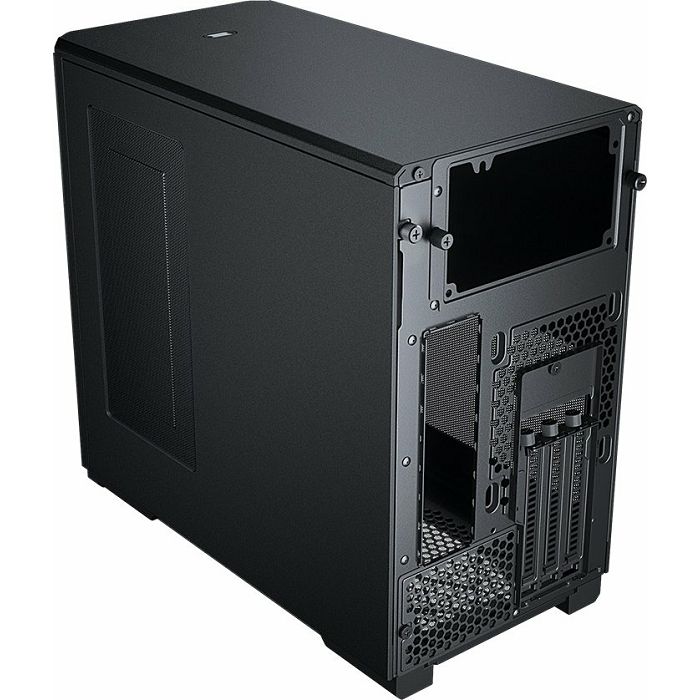

PCI-slots 3
Fan(s) (front) 1x 120mm or 2x 120mm (optional) or 2x 140mm (optional)
Fan(s) (rear) 1x 120mm (optional)
Fans (left) not available
Fans right 2x 120mm (optional)
Fan(s) (top) not available
Fan(s) (bottom) 2x 120mm (optional)
Fans (other) not available
radiator sizes 120/140/240/280mm front, not available top, 120mm rear, 120/240mm right
Motherboard to Mini-ITX
Supported motherboards Mini-ITX (6.7"x6.7")/mini-DTX (6.7"x8")
Power supply ATX (max. 205mm deep)
Power supply position top
CPU Coolers max. 165mm height (at horizontal GPU, 72-92mm at vertical GPU)

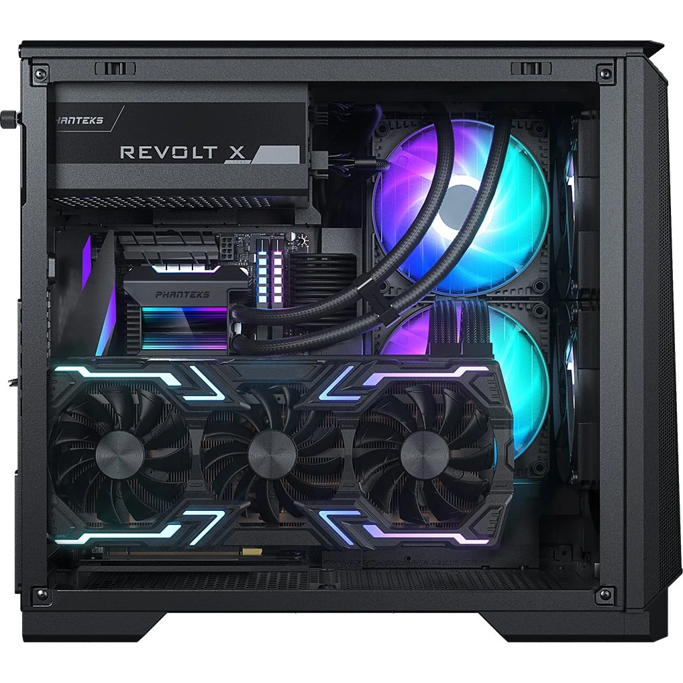

Graphics Cards max. 355mm
Colour black, inside black
Lighting without Illumination
Dimensions (WxHxD) 205x365x400mm
Capacity 29.93l
Weight 5.50kg
Type ITX/DTX
front I/O position Housing side: not specified, Height: not specified, position: not specified
Special features Cable Management, dust filter, PCI-slots vertical mountable
