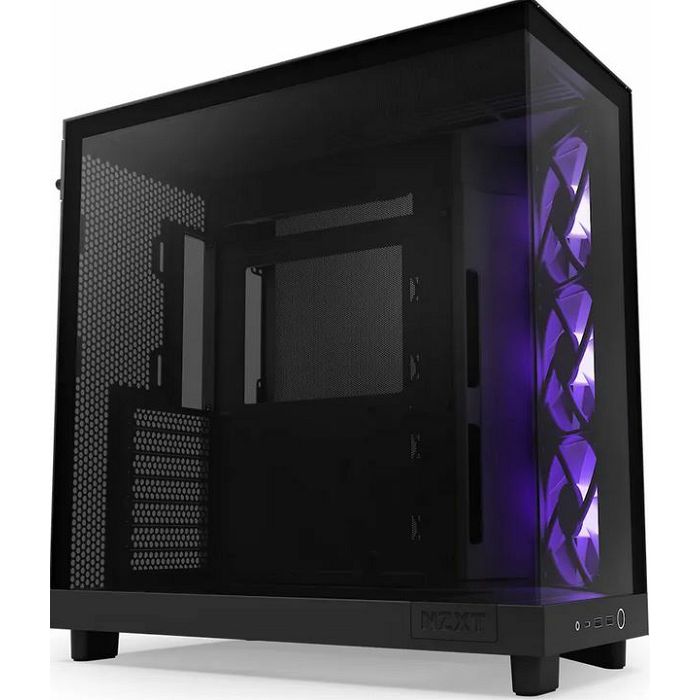

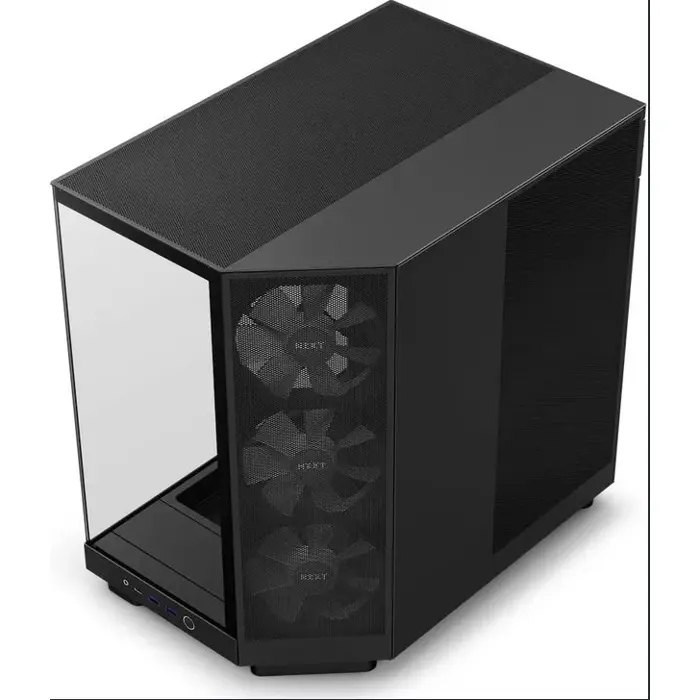

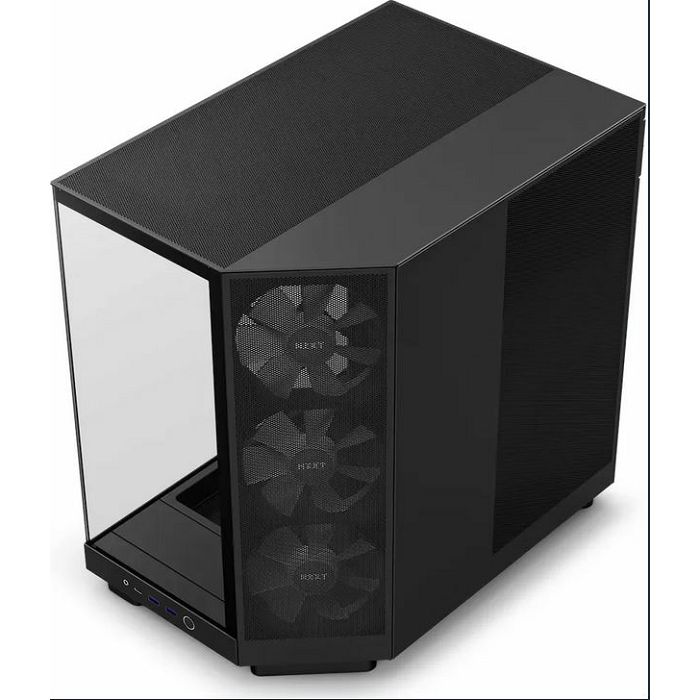

NZXT Midi Tower H6 Flow RGB Black Window, CC-H61FB-R1

external
not available
Internal
1x 3.5" (transverse, HDD rails), 2x 2.5"
Connectors
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x 3.5mm jack (Line-In/?Out)
PCI-slots
7
Fan(s) (front)
not available
Fan(s) (rear)
1x 120mm (optional)
Fans (left)
not available
Fans right
3x 120mm, 1300rpm, 1.27mmH2O, 93.79m3/?h (55.2 CFM), 26.1dB(A) (RGB illuminated)
Fan(s) (top)
3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (bottom)
2x 140mm (optional)
Fans (other)
not available
radiator sizes
not available front, 120/?140/?240/?280/?360mm top, 120mm rear
Motherboard
to ATX
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")
Power supply
ATX (max. 200mm deep)
Power supply position
top (vertical)
CPU Coolers
max. 163mm height
Graphics Cards
max. 365mm
Colour
black, inside black
Lighting
RGB-Header 3-Pin ARGB (+5V/?DATA/?GND), illuminated fan
Dimensions (WxHxD)
287x435x415mm
Capacity
51.81l
Weight
9.40kg
Type
Midi-Tower
front
closed, glass
above
partially closed, Mesh, mainly fan grill
below
partially closed, mainly fan grill
left
closed, glass
right
partially closed, Mesh, mainly fan grill
aft
partially closed, fan grill right top, PCI slots (7x horizontal)
front I/O position
Housing side: front, Height: bottom, position: centered
Motherboard-Alignment
motherboard-Alignment: to left
Special features
Cable Management, graphics card vertical mountable (optional), side panel window made out of glass, Mehrkammerdesign
