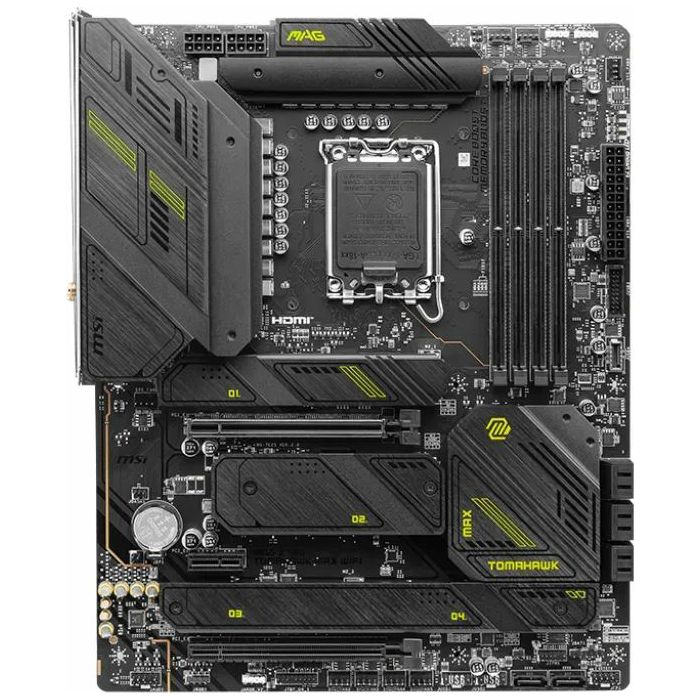

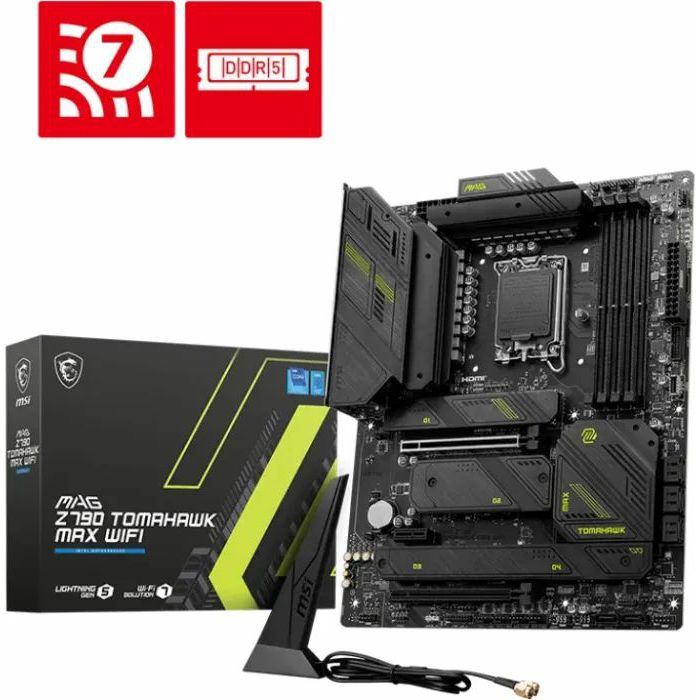

MSI MAG Z790 Tomahawk MAX WiFi, DDR5, s1700, 7E25-002R

Form factor ATX
Plinth Intel 1700
Chipset Intel Z790
CPU Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-62400U/DDR5-7800 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 5.0 x4, 22110/2280/2260), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (PCIe, 2230, assigned to WiFi+BT module)
External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-C 3.1 (10Gb/s), 4x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s, Genesys Logic GL3523), 1x 2.5GBase-T (Intel I226-V), 5x jack, 1x Toslink, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.1 Key-A header (10Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0, Genesys Logic GL3523), 2x USB 2.0 header (480Mb/s, 4x USB 2.0, Genesys Logic GL850), 6x SATA 6Gb/s (Z790), 2x SATA 6Gb/s (ASM1061), 1x TPM header, 1x USB4/Thunderbolt header 17-pin (18-1), 1x chassis intrusion header, 1x MSI Tuning Controller header 5-pin
Header Cooling 1x CPU fan 4-pin, 1x pump 4-pin, 6x fan 4-pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
Buttons/Switches USB BIOS Flashback (external), Clear CMOS button (external)
Audio 7.1 (Realtek ALC4080)
Graphic iGPU
Wireless Wi-Fi 7 (Wi-Fi 802.11a/b/g/n/ac/ax/be, 2x2), Bluetooth 5.4
RAID Level 0/1/5/10 (Z790)
Power connections 1x 24-pin ATX, 2x 8-pin EPS12V
VRM 17 virtual phases (16+1+1), 9 real phases (8+1), PWM controller: RAA229132 (max. 20 phases)
MOSFETs CPU (VCORE) 16x 90A ISL99390
MOSFETs SoC (VCCGT) 1x 75A RAA220075
MOSFETs AUX (VCCAUX) 1x
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 4x M.2 passive cooler, integrated I/O panel, onboard TPM 2.0 support (Intel PTT)
