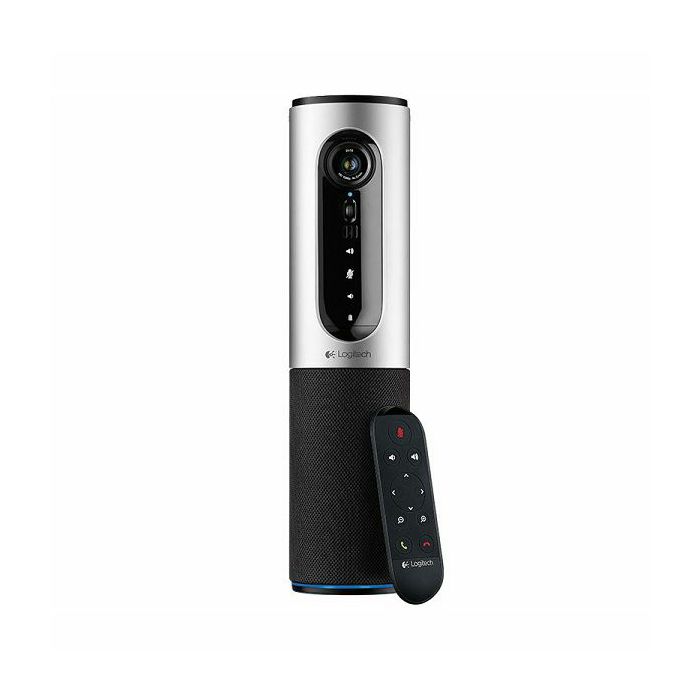

Logitech ConferenceCam CONNECT, 960-001034

Dimensions

Main Unit:
Height x Width x Depth:
304.2 mm x 75 mm x 75 mm
Weight: 766 g

Remote Control:
Height x Width x Depth:
128 mm x 41 mm x 9 mm
Weight: 32 g

System Requirements

Windows® 7, 8.1 or 10
macOS® X 10.10 or higher

Technical Specifications
CAMERA

Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients

H.264 UVC 1.5 with Scalable Video Coding (SVC)

Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video

Field of View
Diagonal: 90°
Horizontal: 82.1°
Vertical: 52.2°

4X digital zoom

Rightlight™ 2 Technology for clarity in various lighting environments, even low light

Digital pan, tilt and zoom from remote control or optional downloadable app

Mechanical tilt wheel

Camera LED for active streaming indication

SPEAKERPHONE

Integrated full duplex speakerphone with echo and noise cancellation

360° wideband audio

Bluetooth® and NFC enabled

LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing

Controls for call answer/end, volume and mute

Microphones (Tx)

Two omni-directional microphones supporting 3.6 m diameter range

Frequency response: 100Hz – 16KHz

Sensitivity: -34dB +/-3dB

Distortion: <1% @ 1KHz at 65dB

Speakers (Rx)

Frequency response: 140Hz – 16KHz

Sensitivity: 89dBSPL +/-3dB at 1W/0.5M

Max output: 91.5dBSPL at 0.5M

Distortion: <5% from 200Hz

REMOTE CONTROL

Docks on device and functions as a lens cover

IR 3 m range

CR2032 battery (included)

CABLES / POWER

AC Power adapter with regional plugs

USB cable 1.8 m

Integrated rechargeable battery

MOUNT

Designed for tabletop use

Kensington security slot

COMPATIBILITY AND CERTIFICATIONS

Plug-and-play USB connectivity

Certified for Skype for Business and ready for Teams

Zoom Certified

Fuze Certified

Compatible with Google Meet

Cisco Jabber® and WebEx compatible

Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
