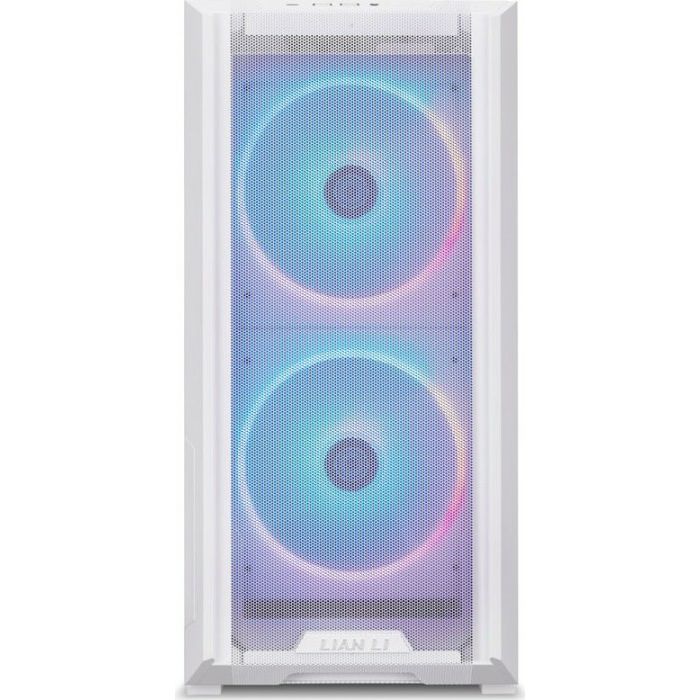

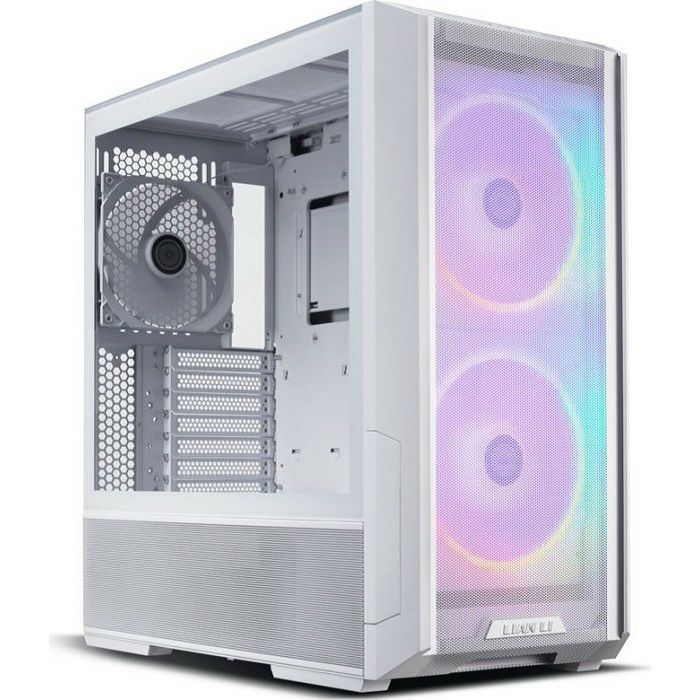

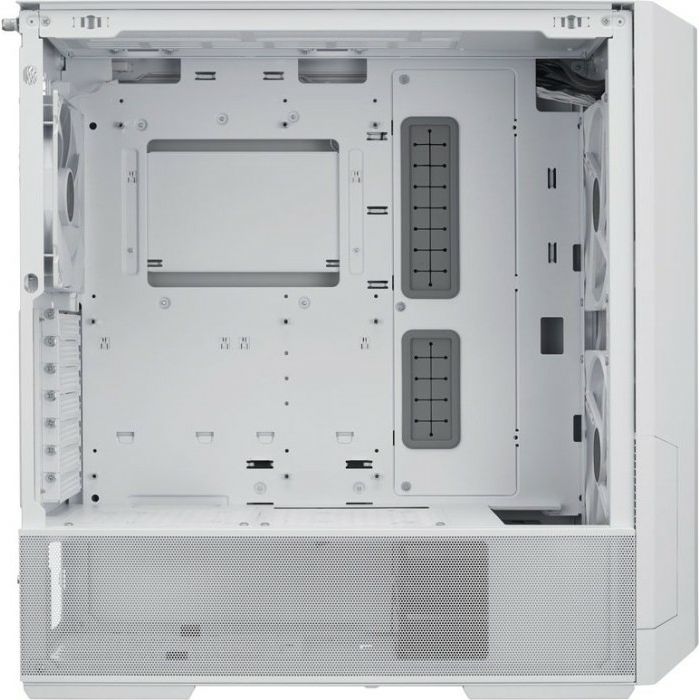

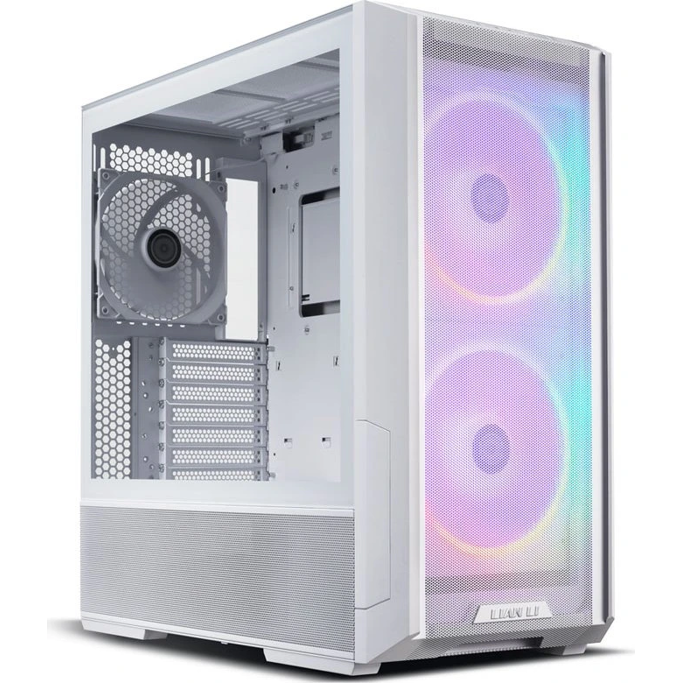

Lian Li Midi Tower LANCOOL 216 RGB, glass window, White, 4718466012951

external
not available
Internal
2x 3.5" (transverse, HDD cage), 6x 2.5"
front I/O
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x headphone, 1x microphone
PCI-slots
7
Fan(s) (front)
2x 160mm, 500-1600rpm, 3.1mmH2O, 202.05m3/?h (RGB illuminated) or 2x 140mm (optional) or 3x 120mm (optional)
Fan(s) (rear)
1x 140mm, 200-1800rpm, 2.4mmH2O, 138.21m3/?h
Fans (left)
not available
Fans right
not available
Fan(s) (top)
3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (bottom)
not available
Fans (other)
2x 140mm (optional, PSU Cover) and 1x 120mm (optional, outdoor an PCI slots)
radiator sizes
120/?140/?240/?280/?360mm front, 120/?140/?240/?280/?360mm top, 240mm other
Motherboard
to ATX (280mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x11")
Power supply
ATX (max. 220mm deep)
Power supply position
bottom
CPU Coolers
max. 180.5mm height
Graphics Cards
max. 392mm
Colour
white, inside white
Lighting
RGB-Header 3-Pin ARGB (+5V/?DATA/?GND), integrated RGB-LED lighting, integrated LED control, illuminated fan
Dimensions (WxHxD)
235x491.7x480.9mm
Capacity
55.57l
Type
Midi-Tower
front
Mesh
above
partially closed, mainly fan grill, Mesh
below
partially closed, fan grill rear, dust filter outdoor
left
partially closed, mainly glass, partially Mesh
right
closed
aft

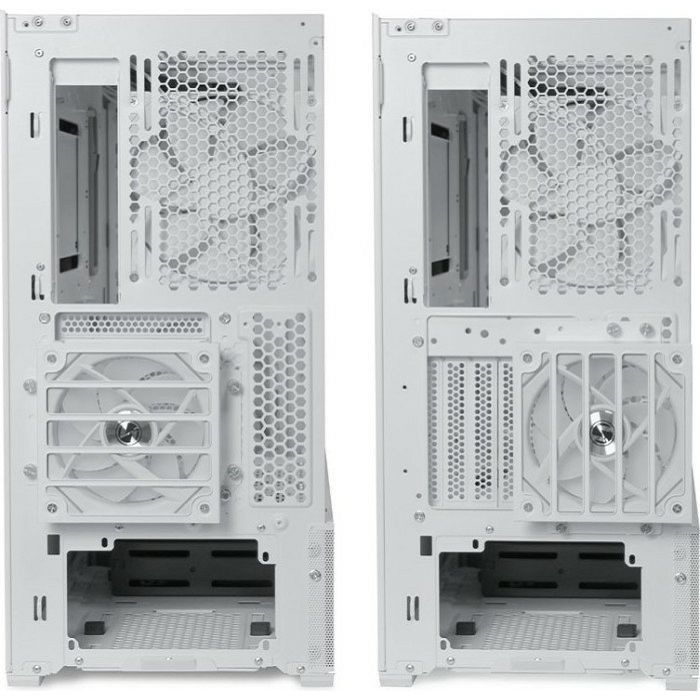

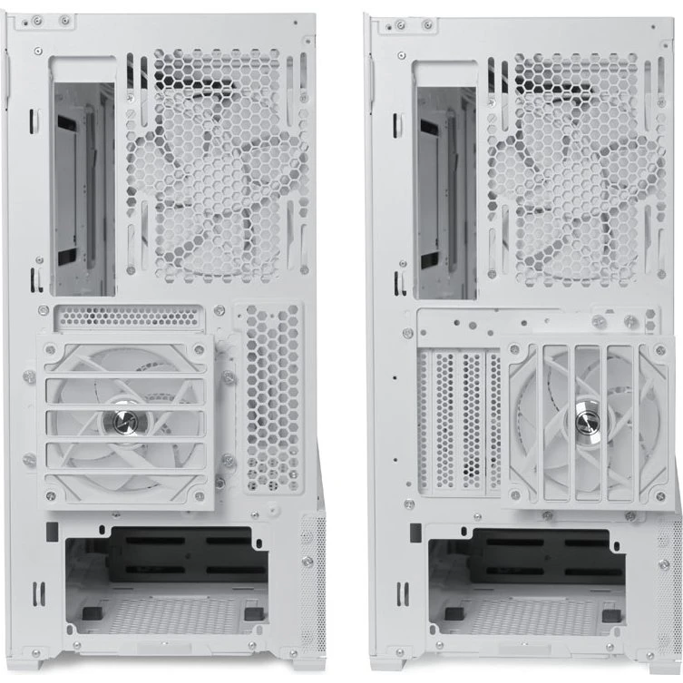

partially closed, fan grill right top, PCI slots (modular, 7x horizontal or 7x vertical)
front I/O position
Housing side: modular (top/?left), Height: front, position: modular (centered/?bottom)
Special features

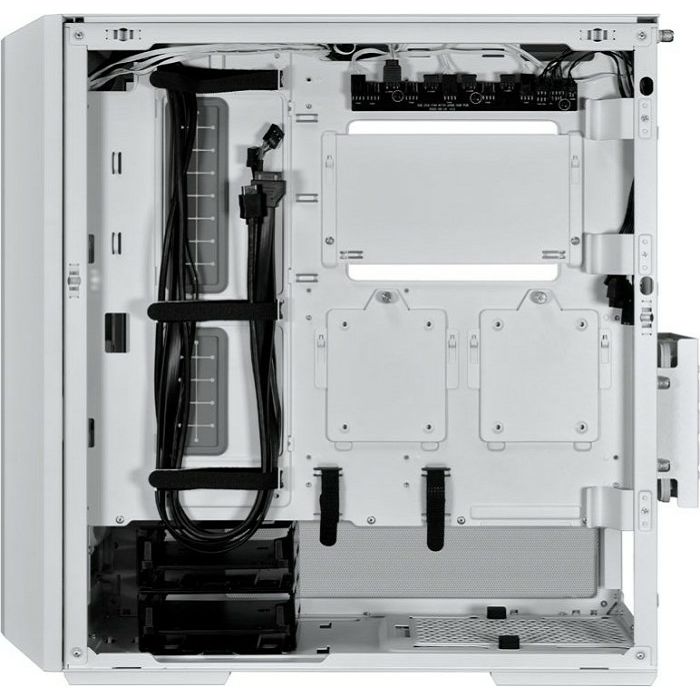

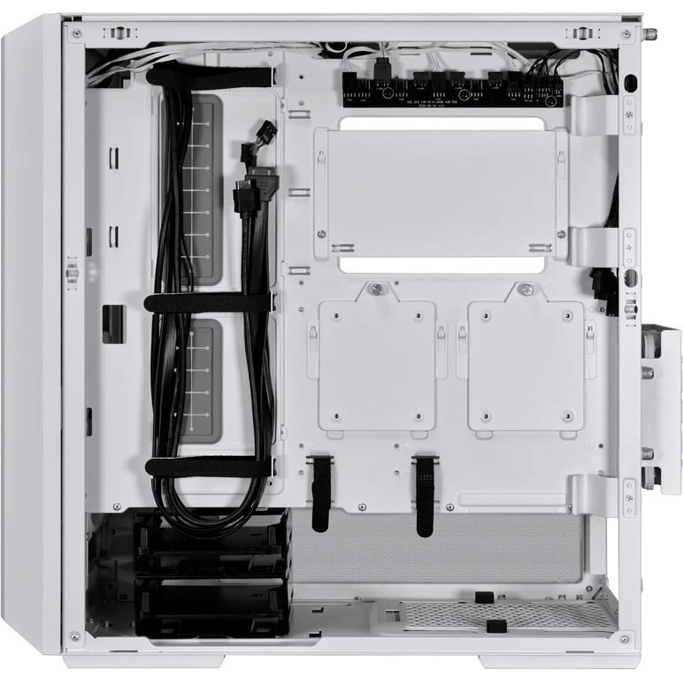

Cable Management, dust filter, side panel window made out of glass, I/?O-panel-position modular (two I/?O-panel-positions), PCI-slots vertical mountable
Note
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
