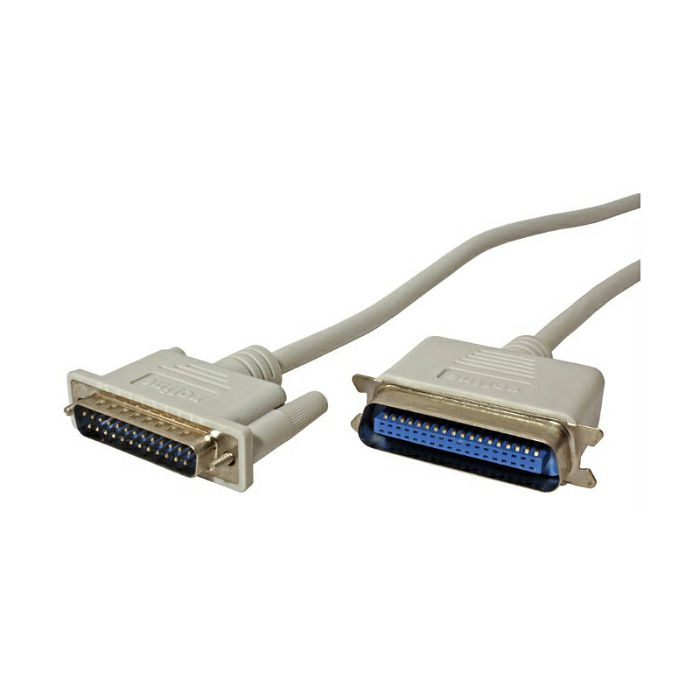

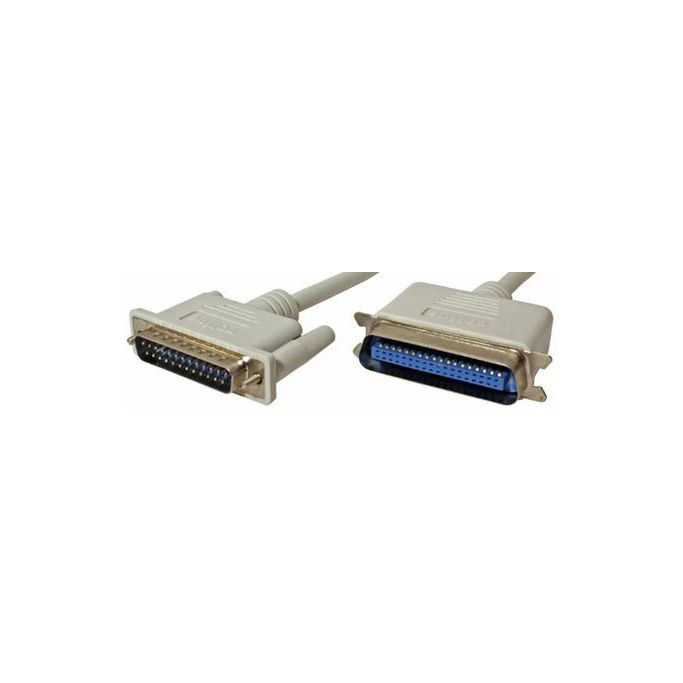

Kabel za printer 1.8m, paralelni DB25/C36, Roline, 11.01.1018

Opis/specifikacija:

Description
- For printers with Centr. connection
- Cable with 25-pole D-Sub plug and 36-pole Centronics plug
- 25 lines
- Screen line connected with the foil screen and both plugs
- Connector casing moulded with special plastic, so optimal strain reduction, cable break not possible
- Very good screening prevents data loss and electromagnetic interference
- Hand locking screws
- Bronze contacts with gold coating

Connection list for parallel printer cable
25-pole connector 1-14|15|16|17|18|19|20|21|22|23|24|25
36-pole connector 1-14|32|31|36|33|19|21|23|25|27|29|30

Technical Data
- Area of application: External
- Colour (Cable): grey
- Hand locking screws: Partially
- Cable shielding: Screened
- side 1 connector: 25 pol. Sub D
- side 2 connector: 36 pol. Centronics
- Connector Casing: moulded
