Intel Core i9-12900F 2.4-5.10GHz, LGA1700, boxed with cooler, BX8071512900F

Socket 1700 (LGA)
Codename alder Lake-S
Graphics no
TDP 65-202W
Cores 16 (8+8)
Threads 24 (16+8)
Base Clock 2.40GHz (P-Core), 1.80GHz (E-Core)
Turbo Clock 5.10GHz (Max Turbo), 5.00GHz (P-Core), 3.80GHz (E-Core)
SMT yes (Intel Hyper-Threading)
Memory controller Dual Channel PC5-38400U (DDR5-4800), supports also PC4-25600U (DDR4-3200)
ECC support no
Unlocked no
Remote management no
CPU-Features GNA 3.0, Thread Director, DL Boost, Optane Memory support, Speed shift, Turbo Boost Max 3.0 (5.10GHz), Turbo Boost 2.0, Hyper-Threading, VT-x, VT-d, VT-x EPT, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, VMD, AES-NI, Secure Key, OS Guard, XD bit, Boot Guard, MBE, CET
chipset suitability B660, H610, H670, W680, Z690

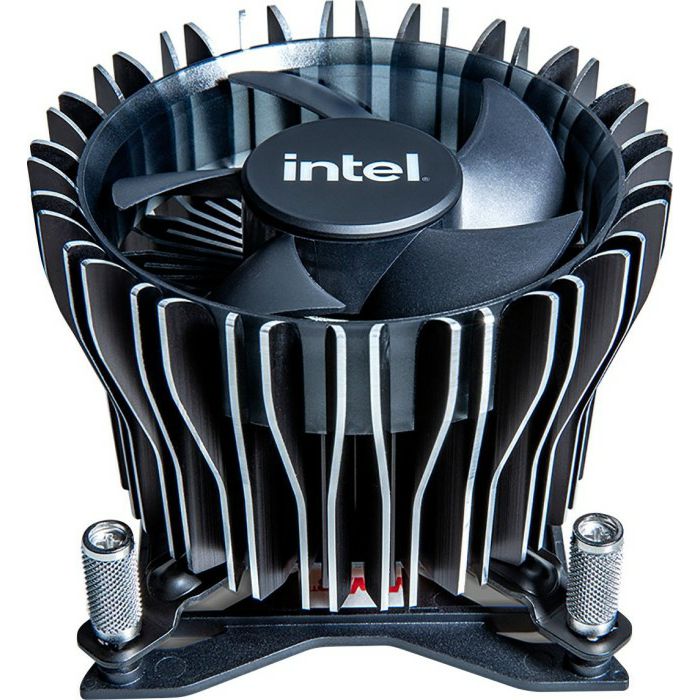

Scope of Delivery with CPU cooler (Intel Laminar RH1)
Segment desktop (Mainstream)
Architecture golden Cove + Gracemont (hybrid-Design)
Manufacturing Process Intel 7 (10nm Enhanced SuperFin, Intel)
Stepping C0
L2 cache 14MB (8x 1.25MB + 8x 512kB)
L3 cache 30MB
chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
Memory max. 128GB
Memory bandwidth 76.8GB/s
Scalability 1 socket
Thermal Interface material metal/soldered
