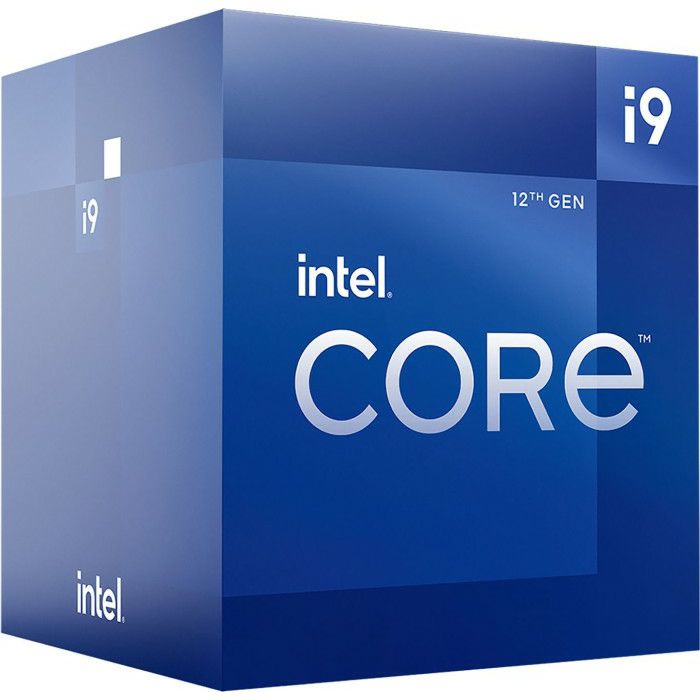

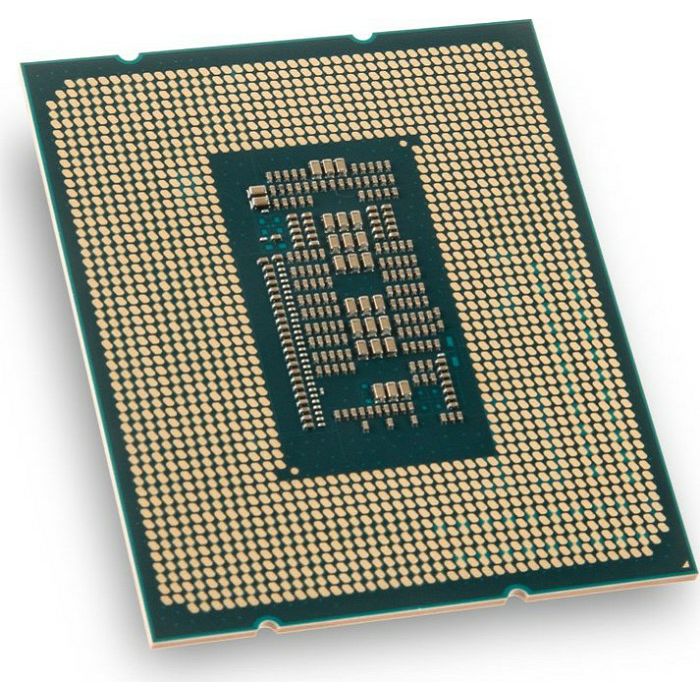

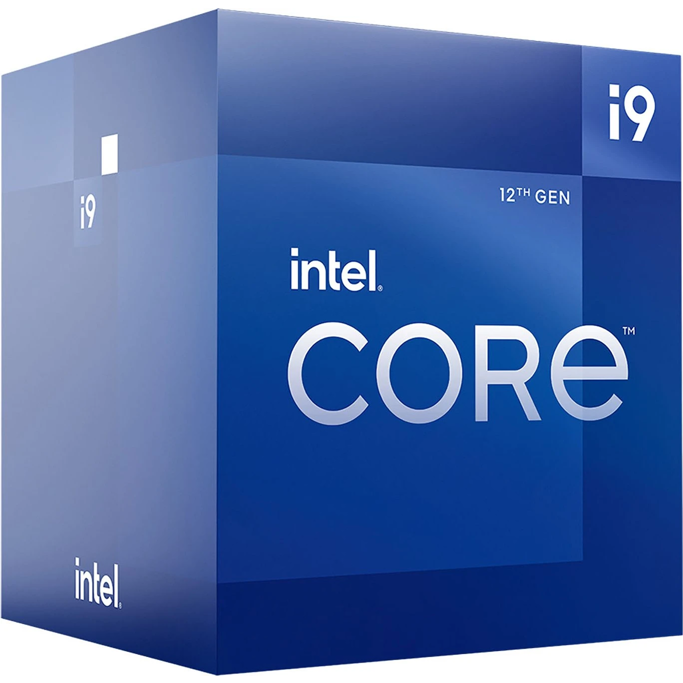

Intel Core i9-12900 2.4-5.10GHz, LGA1700, boxed with cooler, BX8071512900

Socket 1700 (LGA)
Codename alder Lake-S
Graphics Intel UHD Graphics 770 (iGPU), 32EU/?256SP, 0.30-1.55GHz
TDP 65-202W
Cores 16 (8+8)
Threads 24 (16+8)
Base Clock 2.40GHz (P-Core), 1.80GHz (E-Core)
Turbo Clock 5.10GHz (Max Turbo), 5.00GHz (P-Core), 3.80GHz (E-Core)
SMT yes (Intel Hyper-Threading)
Memory controller Dual Channel PC5-38400U (DDR5-4800), supports also PC4-25600U (DDR4-3200)
ECC support yes
Unlocked no
Remote management yes (Intel vPro Enterprise)
CPU-Features
GNA 3.0, Thread Director, DL Boost, Optane Memory support, Speed shift, Turbo Boost Max 3.0 (5.10GHz), Turbo Boost 2.0, vPro, Hyper-Threading, VT-x, VT-d, VT-x EPT, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, SIPP, VMD, vPro Enterprise Platform Eligibility, vPro Essentials Platform Eligibility, TDT, AMT, ISM, One-click Recovery, Hardware Shield, AES-NI, Secure Key, OS Guard, TXT, XD bit, Boot Guard, MBEC, CET, total Memory encryption
chipset suitability
B660, H610, H670, W680, Z690
Scope of Delivery

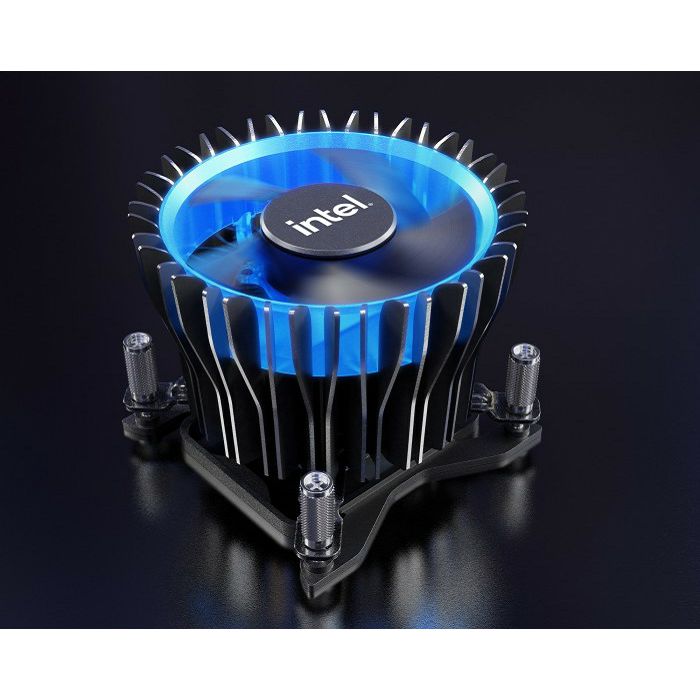

with CPU cooler (Intel Laminar RH1)
Segment
desktop (Mainstream)
Architecture
golden Cove + Gracemont (hybrid-Design)
Manufacturing Process
Intel 7 (10nm Enhanced SuperFin, Intel)
Stepping
C0
Launch
2022/?Q1 (2022-01-04)
L2 cache
14MB (8x 1.25MB + 8x 512kB)
L3 cache
30MB
chipset Interface
DMI 4.0, 16GT/s (PCIe 4.0 x8)
PCIe Lanes
16x PCIe 5.0, 4x PCIe 4.0
Memory max.
128GB
Memory bandwidth
76.8GB/?s
Scalability
1 socket
Thermal Interface material
metal/?soldered
Max Temperature
100°C
iGPU-Units
32EU
iGPU-Shader
256
iGPU-Clock
0.30-1.55GHz
iGPU-Architecture
Gen12 Xe
iGPU-Codename
alder Lake GT1
iGPU Interface
HDMI 2.1 (4096x2160@60Hz), DisplayPort 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz)
iGPU processing Power
0.79 TFLOPS (FP32)
iGPU-Features
DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0, Quick Sync Video, clear Video HD, 4x display support, H.265 encode/?decode, VP9 encode/?decode, AV1 decode, HDCP 2.3
