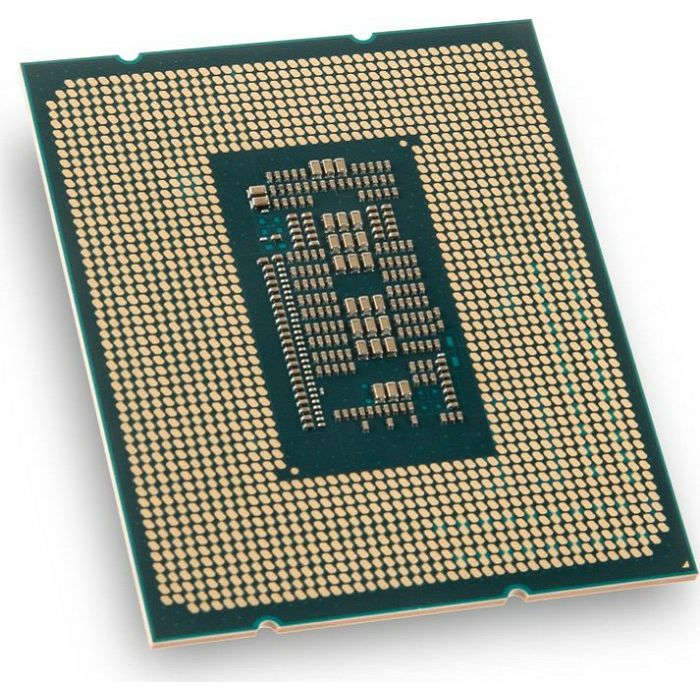

Intel Core i7-12700F 2.1GHz LGA1700, box, BX8071512700F

Socket 1700 (LGA)
Codename alder Lake-S
Graphics no
TDP 65-180W
Cores 12 (8+4)
Threads 20 (16+4)
Base Clock 2.10GHz (P-Core), 1.60GHz (E-Core)
Turbo Clock 4.90GHz (Max Turbo), 4.80GHz (P-Core), 3.60GHz (E-Core)
SMT yes (Intel Hyper-Threading)
Memory controller Dual Channel PC5-38400U (DDR5-4800), supports also PC4-25600U (DDR4-3200)
ECC support no
Unlocked no
Remote management no
CPU-Features GNA 3.0, Thread Director, DL Boost, Optane Memory support, Speed shift, Turbo Boost Max 3.0 (4.90GHz), Turbo Boost 2.0, Hyper-Threading, VT-x, VT-d, VT-x EPT, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, VMD, AES-NI, Secure Key, OS Guard, XD bit, Boot Guard, MBE, CET
chipset suitability B660, H610, H670, Z690
Scope of Delivery

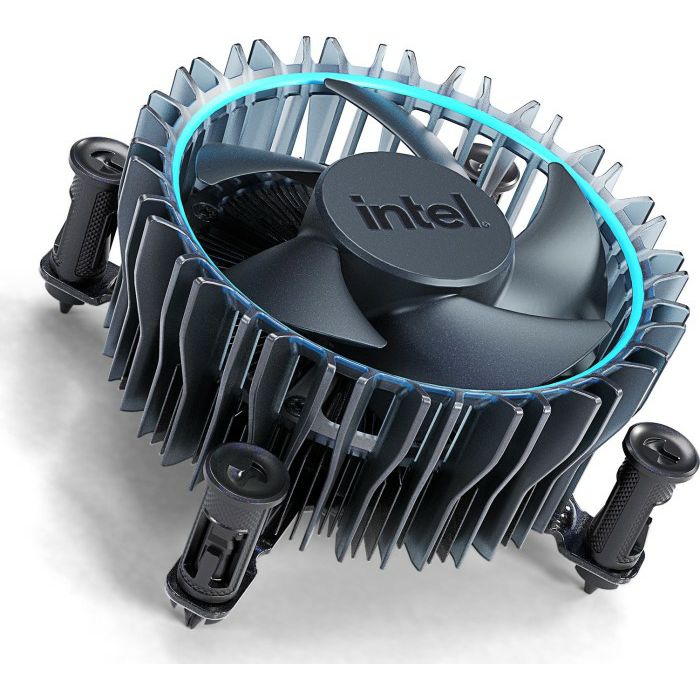

with CPU cooler (Intel Laminar RM1)
Segment
desktop (Mainstream)
Architecture
golden Cove + Gracemont (hybrid-Design)
Manufacturing Process
Intel 7 (10nm Enhanced SuperFin, Intel)
Stepping
C0
Launch
2022/Q1 (2022-01-04)
L2 cache
12MB (8x 1.25MB + 4x 512kB)
L3 cache
25MB
chipset Interface
DMI 4.0, 16GT/s (PCIe 4.0 x8)
PCIe Lanes
16x PCIe 5.0, 4x PCIe 4.0
Memory max.
128GB
Memory bandwidth
76.8GB/?s
Scalability
1 socket
Thermal Interface material
metal/?soldered
