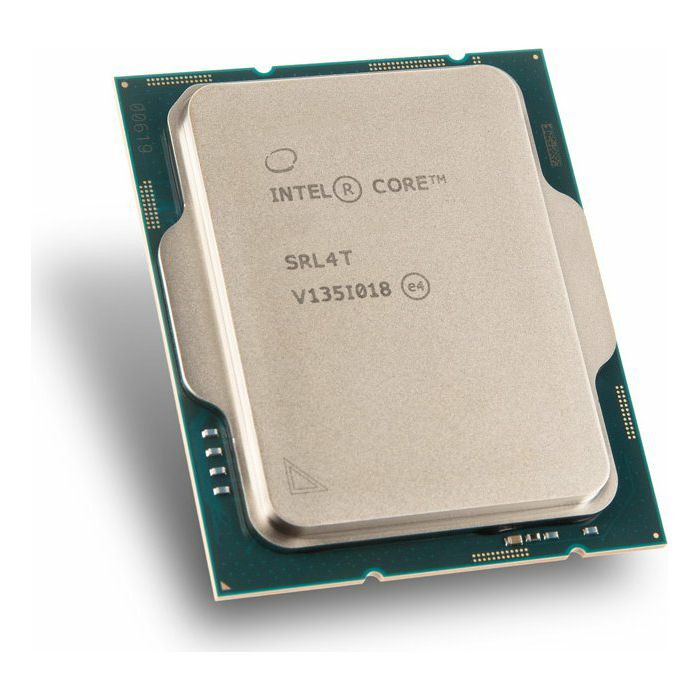

Intel Core i5-12600 3.3GHz(4.8GHz), LGA1700, boxed, BX8071512600

Socket 1700 (LGA)
Codename alder Lake-S
Graphics Intel UHD Graphics 770 (iGPU), 32EU/256SP, 0.30-1.45GHz
TDP 65-117W
Cores 6
Threads 12
Base Clock 3.30GHz
Turbo Clock 4.80GHz
SMT yes (Intel Hyper-Threading)
Memory controller Dual Channel PC5-38400U (DDR5-4800), supports also PC4-25600U (DDR4-3200)
ECC support no
Unlocked no
Remote management no
CPU-Features GNA 3.0, DL Boost, Optane Memory support, Speed shift, Turbo Boost 2.0, Hyper-Threading, VT-x, VT-d, VT-x EPT, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, VMD, AES-NI, Secure Key, OS Guard, XD bit, Boot Guard, MBE, CET
chipset suitability B660, H610, H670, Z690

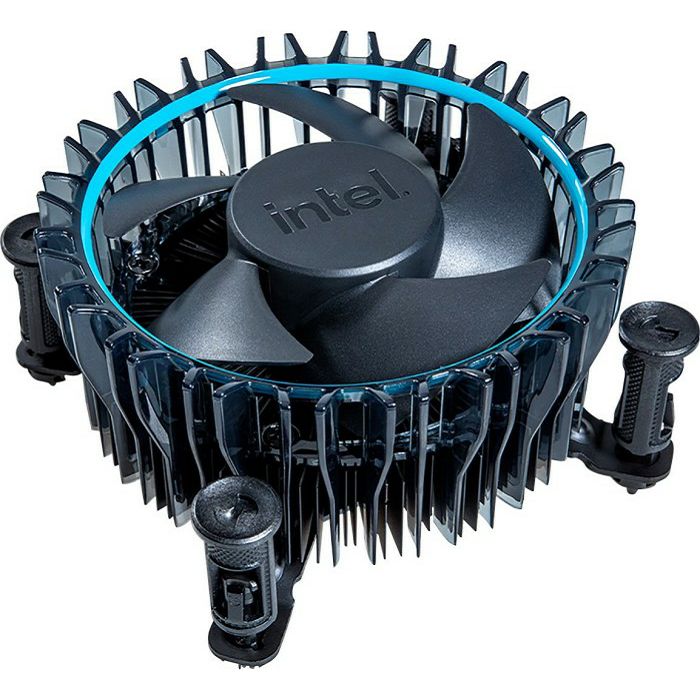

Scope of Delivery with CPU cooler (Intel Laminar RM1)
Segment desktop (Mainstream)
Architecture golden Cove
Manufacturing Process Intel 7 (10nm Enhanced SuperFin, Intel)
Stepping H0
Launch 2022/?Q1 (2022-01-04)
L2 cache 7.5MB (6x 1.25MB)
L3 cache 18MB
chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
Memory max. 128GB
Memory bandwidth 76.8GB/s
Scalability 1 socket
Thermal Interface material metal/soldered
Max Temperature 100°C
iGPU-Units 32EU
iGPU-Shader 256
iGPU-Clock 0.30-1.45GHz
iGPU-Architecture Gen12 Xe
iGPU-Codename alder Lake GT1
iGPU Interface HDMI 2.1 (4096x2160@60Hz), DisplayPort 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz)
iGPU processing Power 0.74 TFLOPS (FP32)
iGPU-Features DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0, Quick Sync Video, clear Video HD, 4x display support, H.265 encode/decode, VP9 encode/decode, AV1 decode, HDCP 2.3
