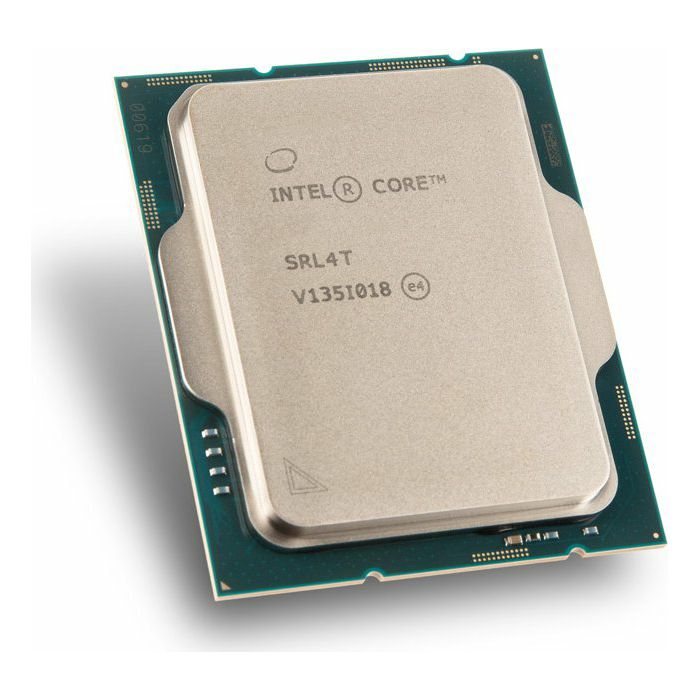

Intel Core i5-12500 3.0GHz LGA1700, BOX, BX8071512500

Socket 1700 (LGA)
Codename alder Lake-S
Graphics Intel UHD Graphics 770 (iGPU), 32EU/?256SP, 0.30-1.45GHz
TDP 65-117W
Cores 6
Threads 12
Base Clock 3.00GHz
Turbo Clock 4.60GHz
SMT yes (Intel Hyper-Threading)
Memory controller Dual Channel PC5-38400U (DDR5-4800), supports also PC4-25600U (DDR4-3200)
ECC support yes
Unlocked no
Remote management yes (Intel vPro Enterprise)
CPU-Features GNA 3.0, DL Boost, Optane Memory support, Speed shift, Turbo Boost 2.0, Hyper-Threading, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, VMD, vPro, vPro Enterprise Platform Eligibility, vPro Essentials Platform Eligibility, TDT, AMT, ISM, One-click Recovery, Hardware Shield, AES-NI, Secure Key, OS Guard, TXT, XD bit, Boot Guard, MBEC, CET, total Memory encryption - Multi Key, total Memory encryption, SIPP, VT-rp, VT-x, VT-d, VT-x EPT
chipset suitability B660, H610, H670, W680, Z690

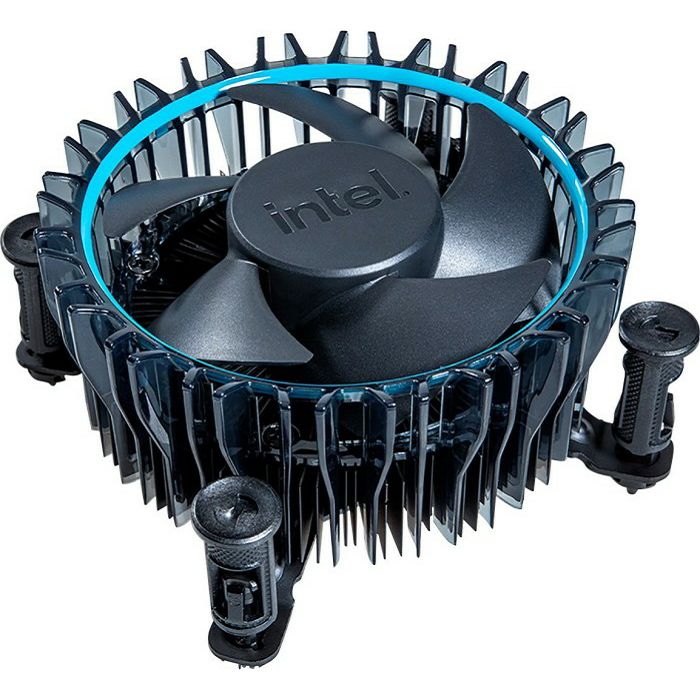

Scope of Delivery with CPU cooler (Intel Laminar RM1)
Segment desktop (Mainstream)
Architecture golden Cove
Manufacturing Process Intel 7 (10nm Enhanced SuperFin, Intel)
Stepping H0
L2 cache 7.5MB (6x 1.25MB)
L3 cache 18MB
chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
Memory max. 128GB
Memory bandwidth 76.8GB/?s
Scalability 1 socket
Thermal Interface material metal/?soldered
Max Temperature 100°C
iGPU-Units 32EU
iGPU-Shader 256
iGPU-Clock
0.30-1.45GHz
iGPU-Architecture
Gen12 Xe
iGPU-Codename
alder Lake GT1
iGPU Interface
HDMI 2.1 (4096x2160@60Hz), DisplayPort 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz)
iGPU processing Power
0.74 TFLOPS (FP32)
iGPU-Features
DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0, Quick Sync Video, clear Video HD, 4x display support, H.265 encode/?decode, VP9 encode/?decode, AV1 decode, HDCP 2.3
