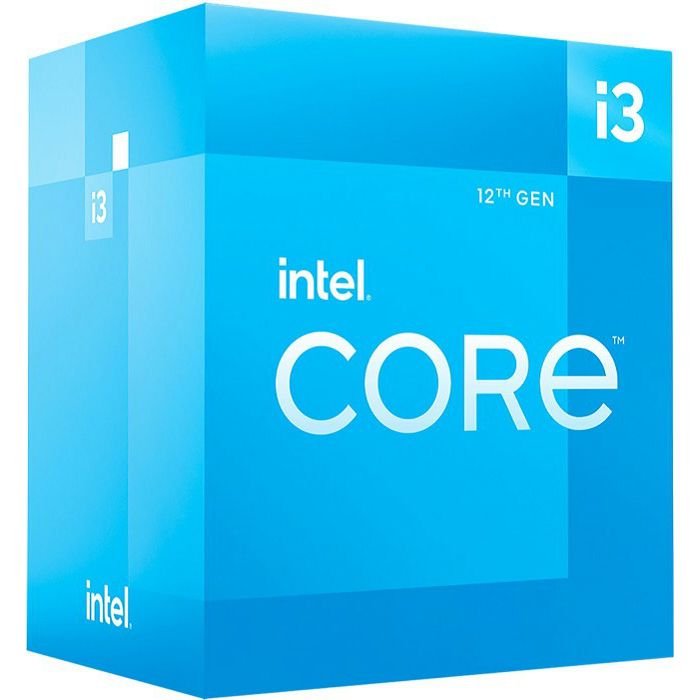

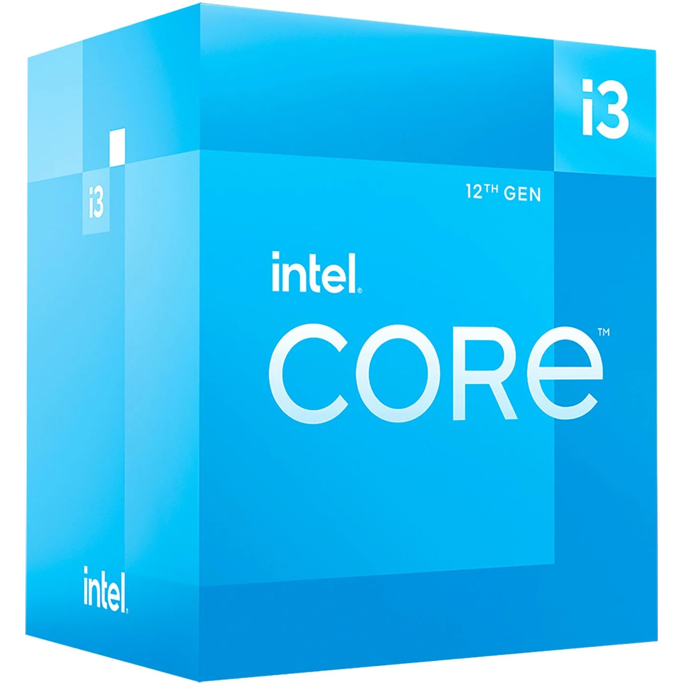

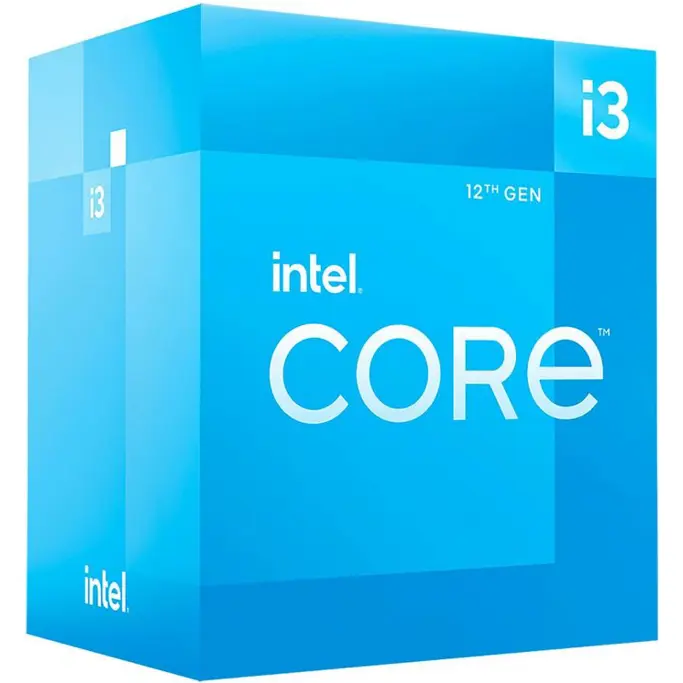

Intel Core i3-12100 3.3GHz LGA1700, BOX, BX8071512100

Socket 1700 (LGA)
Codename alder Lake-S
Graphics Intel UHD Graphics 730 (iGPU), 24EU/192SP, 0.30-1.40GHz
TDP 60-89W
Cores 4
Threads 8
Base Clock 3.30GHz
Turbo Clock 4.30GHz
SMT yes (Intel Hyper-Threading)
Memory controller Dual Channel PC5-38400U (DDR5-4800), supports also PC4-25600U (DDR4-3200)
ECC support no
Unlocked no
Remote management no
CPU-Features GNA 3.0, DL Boost, Optane Memory support, Speed shift, Turbo Boost 2.0, Hyper-Threading, VT-x, VT-d, VT-x EPT, Intel 64, SSE4.1, SSE4.2, AVX, AVX2, Idle States, EIST, Thermal Monitoring, VMD, AES-NI, Secure Key, OS Guard, XD bit, Boot Guard, MBE, CET
chipset suitability B660, H610, H670, Z690

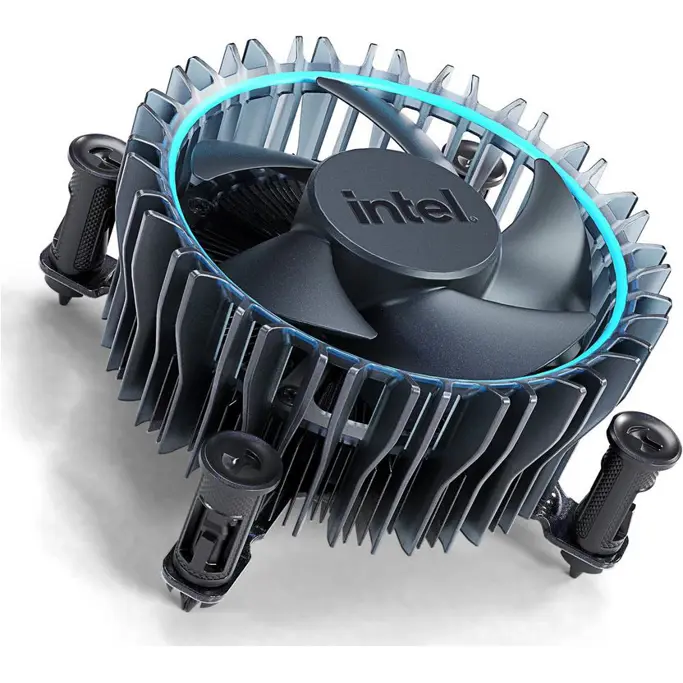

Scope of Delivery with CPU cooler (Intel Laminar RM1)
Segment desktop (Mainstream)
Architecture golden Cove
Manufacturing Process Intel 7 (10nm Enhanced SuperFin, Intel)
Stepping H0
Launch 2022/Q1 (2022-01-04)
L2 cache 5MB (4x 1.25MB)
L3 cache 12MB
chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
Memory max. 128GB
Memory bandwidth 76.8GB/s
Scalability 1 socket
Thermal Interface material metal/soldered
Max Temperature 100°C
iGPU-Units 24EU
iGPU-Shader 192
iGPU-Clock 0.30-1.40GHz
iGPU-Architecture Gen12 Xe
iGPU-Codename alder Lake GT1
iGPU Interface HDMI 2.1 (4096x2160@60Hz), DisplayPort 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz)
iGPU processing Power 0.54 TFLOPS (FP32)
iGPU-Features DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0, Quick Sync Video, clear Video HD, 4x display support, H.265 encode/decode, VP9 encode/decode, AV1 decode, HDCP 2.3
