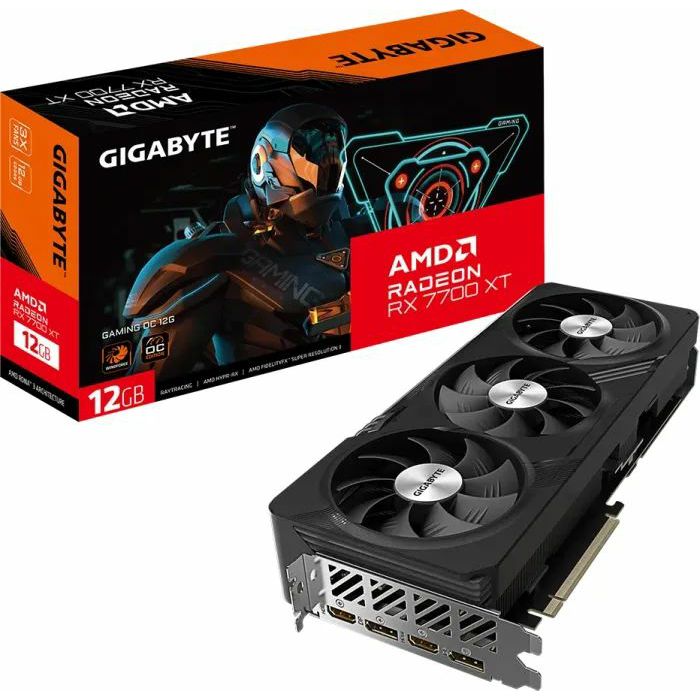

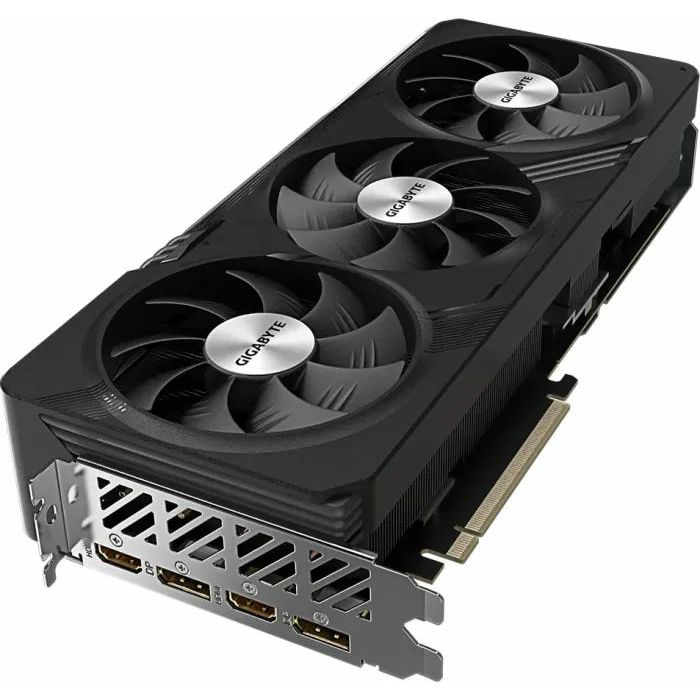

Gigabyte RX7700XT Gaming OC 12G, 12GB GDDR6, GV-R77XTGAMING OC-12GD

GPU AMD Radeon RX 7700 XT
Memory 12GB GDDR6, 192bit, 18Gbps, 2250MHz, 432GB/s
Overclocking +55MHz Boost, +105MHz Game
Clock Boost 2276-2599MHz
Clock Base unknown
Cooling 3x axial fans (90mm) with 0dB zero-fan mode
TDP/TGP 245W (AMD)
Power connections 2x 8-pin PCIe
Connections 2x HDMI 2.1, 2x DisplayPort 2.1
Connection PCIe 4.0 x16
Particularities LED lighting (RGB), backplate
Overall depth Triple Slot
Dimensions 302x130x56mm (LxWxH)
Construction PCIe card (full height)
Slot bezel full height
Computing power 71.86 TFLOPS (FP16), 35.93 TFLOPS (FP32), 2.25 TFLOPS (FP64)
Chip Data
Chip Architecture RDNA 3 (from 2022/Q4)
Chip Designation Navi 32
Chip Configuration 54CU (3456 ALUs / 216 TMUs / 96 ROPs), 54 RT Cores, 2MB L2 Cache, 48MB L3 Cache
Chip Manufacturing TSMC 5nm + TSMC 6nm
Chip Size 346mm2, multi-chip module (3 MCM chiplets)
Chip Functions Ray tracing, AMD Infinity Cache (48MB), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine VCN 4.0, Info
Encoding AV1, H.265, H.264
Decoding AV1, H.265, H.264, VP9
