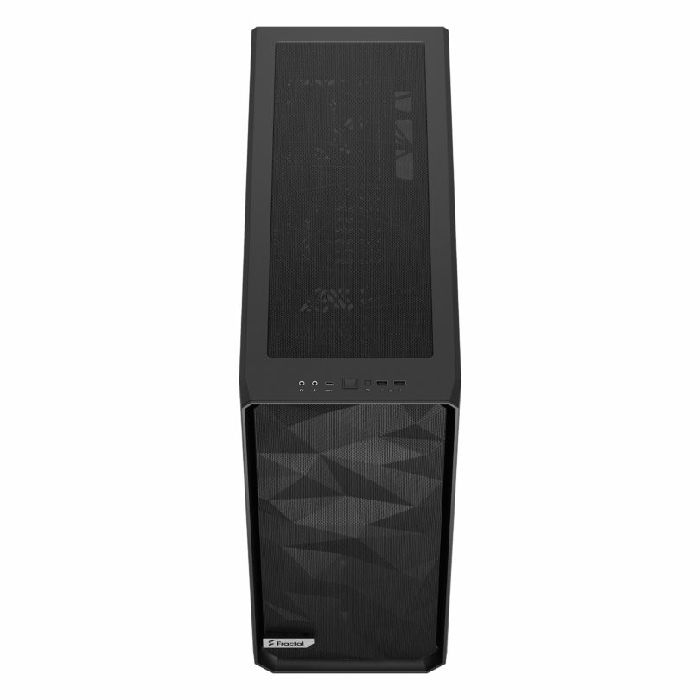

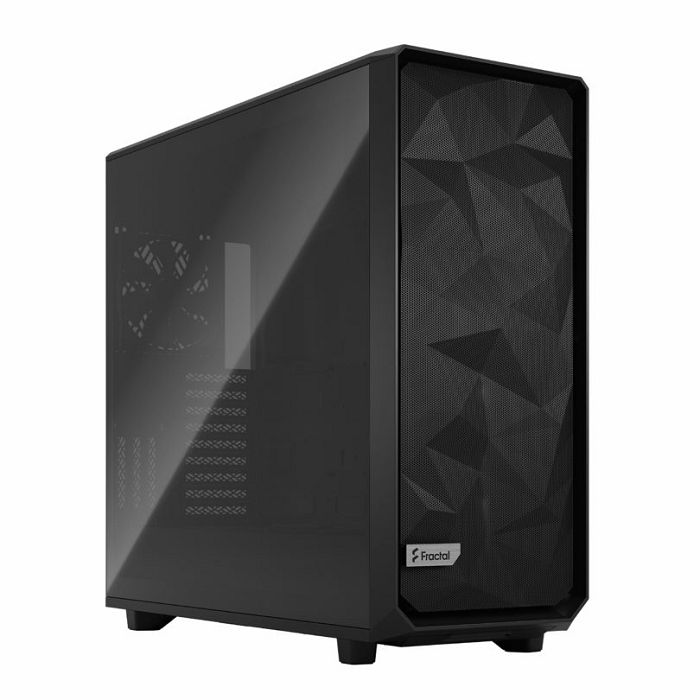

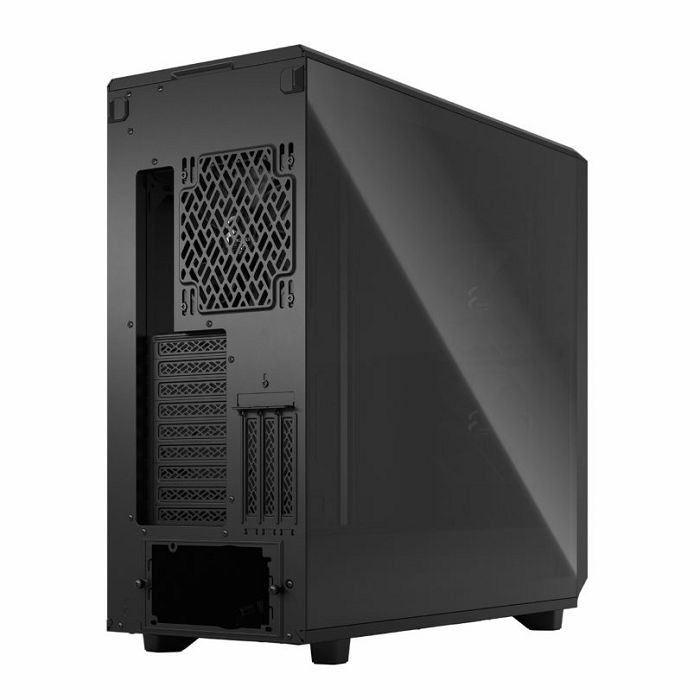

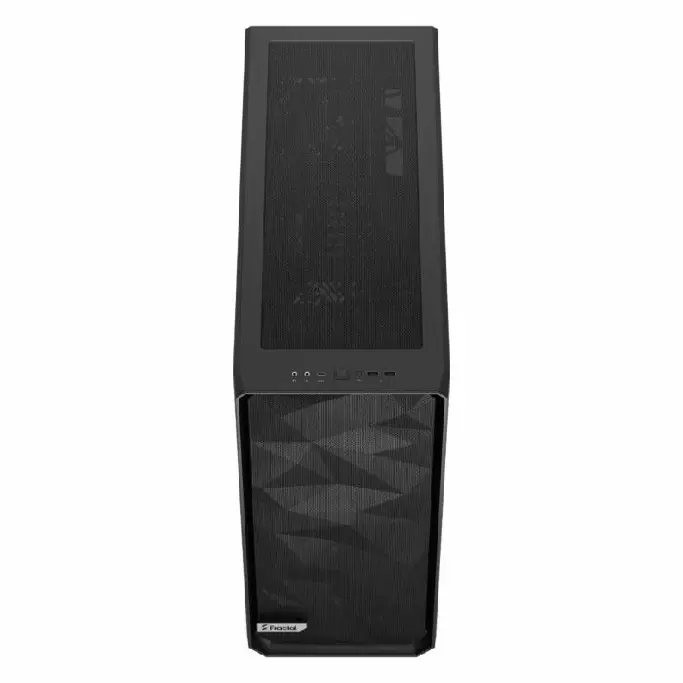

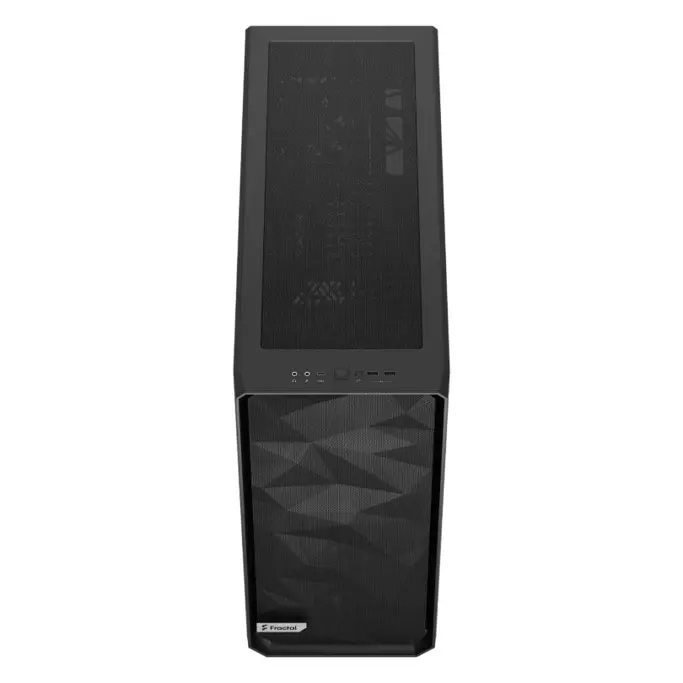

Fractal Full Tower Design Meshify 2 XL Black TG Light Tint, FD-C-MES2X-02

external not available
Internal 6x 2.5"/3.5" (transverse, HDD rails), 2x 2.5", 12x 2.5"/3.5" (optional), 3x 2.5" (optional)
front I/O 1x USB-C 3.1 (20-Pin Key-A Header), 2x USB-A 3.0, 1x microphone, 1x headphone
PCI-slots 12 (3x Riser Card)
Fan(s) (front) 2x 140mm, 1000rpm, 18.9dB(A) or 3x 140mm (optional) or 4x 120mm (optional)
Fan(s) (rear) 1x 140mm, 1000rpm, 18.9dB(A)
Fans (left) not available
Fans right not available
Fan(s) (top) 3x 140mm (optional) or 4x 120mm (optional)
Fan(s) (bottom) not available
Fans (other) 2x 140mm (optional)
radiator sizes 120/?140/?240/?280/?360/?420/?480mm front, 120/?140/?240/?280/?360/?420/?480mm top, 120/?140/?240/?280mm bottom, 120mm rear
Motherboard to EE-ATX
Supported motherboards mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (SSI CEB, 12"x10.5")/E-ATX (SSI EEB, 12"x13")/EE-ATX (13.68"x13")
Power supply ATX (max. 250mm deep)
Power supply position bottom
CPU Coolers max. 185mm height
Graphics Cards max. 359mm (549mm without HDD-cage without front fan, 524mm without HDD-cage with front fan)
Colour black, inside black
Lighting without Illumination
Dimensions (WxHxD) 240x566x600mm
Capacity 81.50l
Weight 14.10kg
Type Big-Tower
Special features Cable Management, dust filter, integrated fan control, side panel window made out of glass
