ASUS Router EBM68 ExpertWiFi AX7800 Tri-Band WiFi 6 Business Mesh Router, 1-pack, 90IG07V0-MO3A60

Network Device Type
Network Device Type Router/Range Extender/Access Point
Data Link Protocol Supports (New) Wi-Fi + LAN
CPU and Memory
CPU Core Quantity 4
Internal Clock Rate 1.7 GHz
Installed Flash Memory Storage Capacity 256 MB
Installed RAM 1 GB
External Connections
WAN up to 2.5 Gbps RJ-45
Wireless Networking
Wireless Networking IEEE 802.11a , up to 54 Mbps
IEEE 802.11b , up to 11 Mbps
IEEE 802.11g , up to 54 Mbps
IEEE 802.11n , up to 300 Mbps
IEEE 802.11ac , up to 4333 Mbps
IEEE 802.11ax 2.4 GHz, up to 574 Mbps
IEEE 802.11ax 5 GHz, up to 2402 Mbps
IEEE 802.11ax 5 GHz, up to 4804 Mbps
Encryption Algorithm WPS
LAN Connections
LAN 3 x 10Base-T/100Base-TX/1000Base-T up to 1 Gbps RJ-45
Switching and Routing Features
Line Modulation Type 1024QAM
OFDMA
Supported Networking Compliant Standards IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n Wi-Fi 4
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6
Supported Protocols
Protocols (OSI Model) PPPoE
IPv4
IPv6
IPsec
IGMP
L2TP
PPTP
TLS
Application Layer DHCP
DNS
SSH
DDNS
Features
Firewall Functions and Protocols URL Filter
DMZ Support
MAC address filtering
Router Features Web Interface
Beamforming Technology
DHCP Server
Antenna Internal
Wireless LAN Antenna Quantity 6
Device Location External
Status LED Indicators Activity Status
Built-in Devices Reset Button
WPS Button

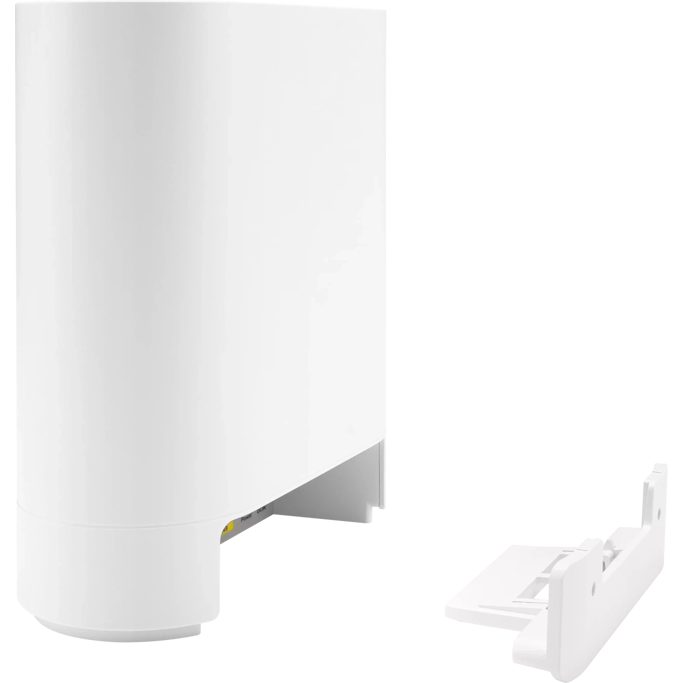

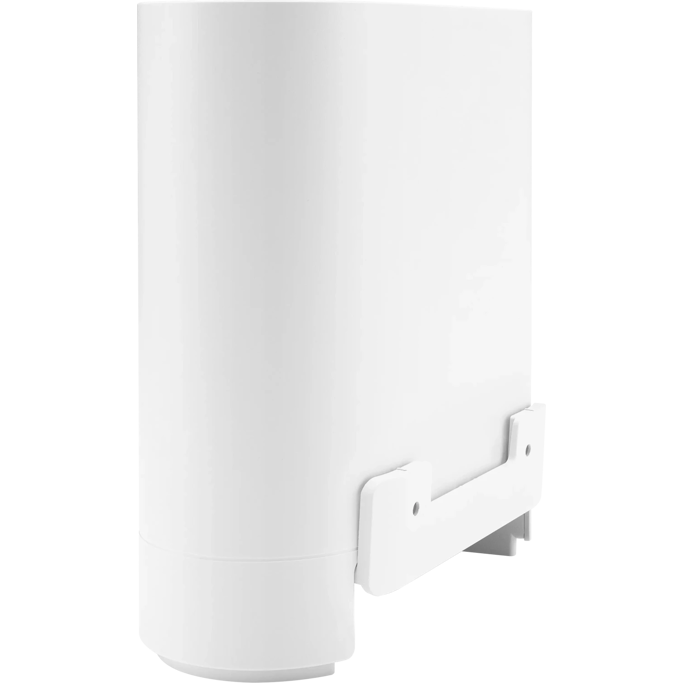

Included Accessories Wall-Mount Bracket
Power Adapter
Quick Start Guide
Warranty Card
Cable Included LAN Cable

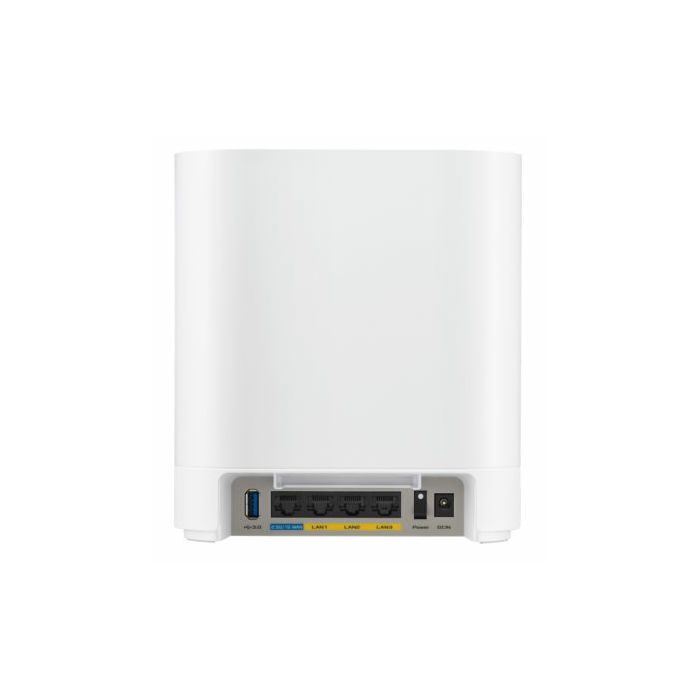

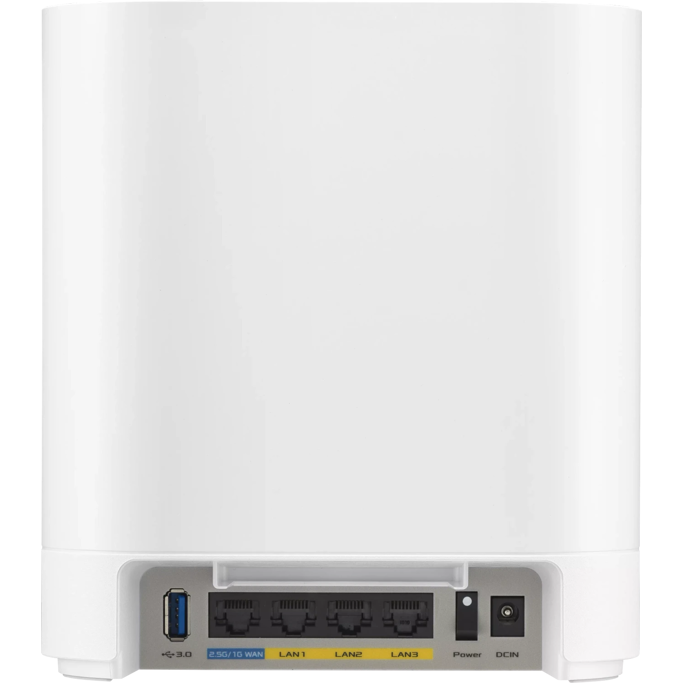

Interface Provided
WAN 1 (RJ-45)
LAN 3 (RJ-45)
USB 3.2 Gen 1 1 (USB 3.2 (type A))
