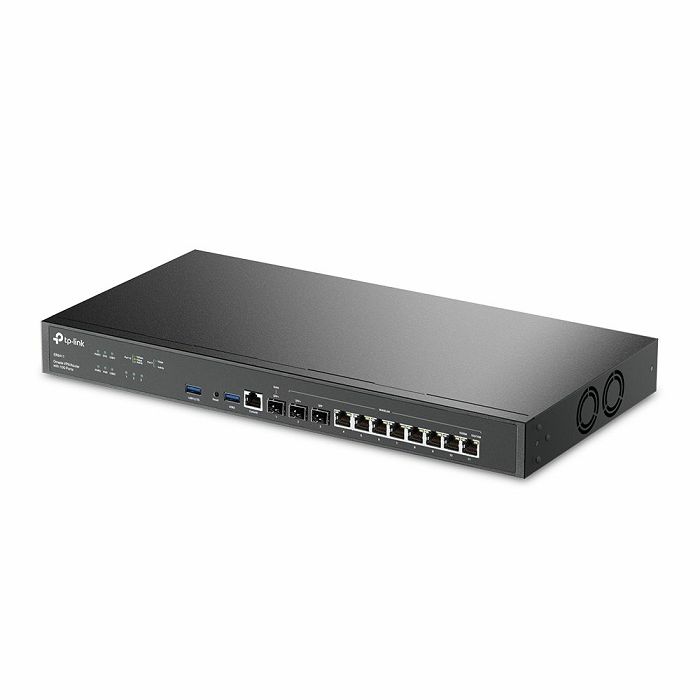

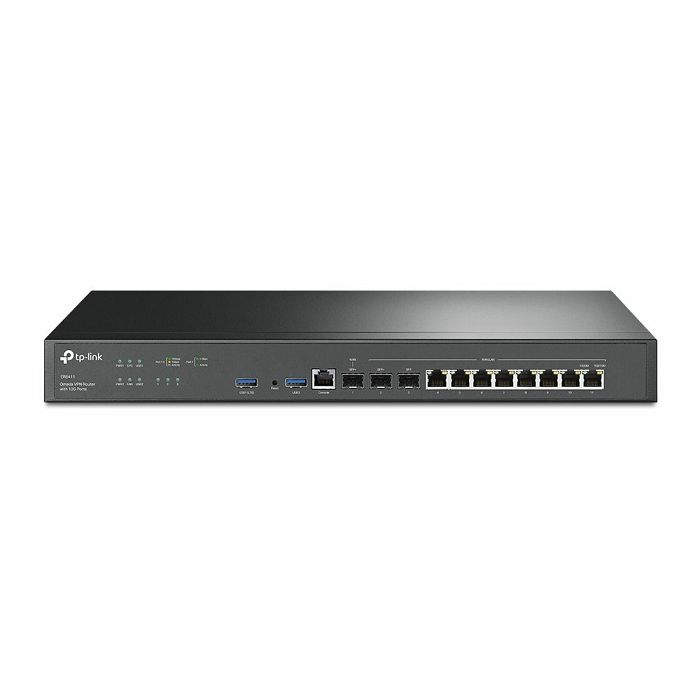

TP-Link ER8411 OMADA 10-Port VPN Router

HARDWARE FEATURES

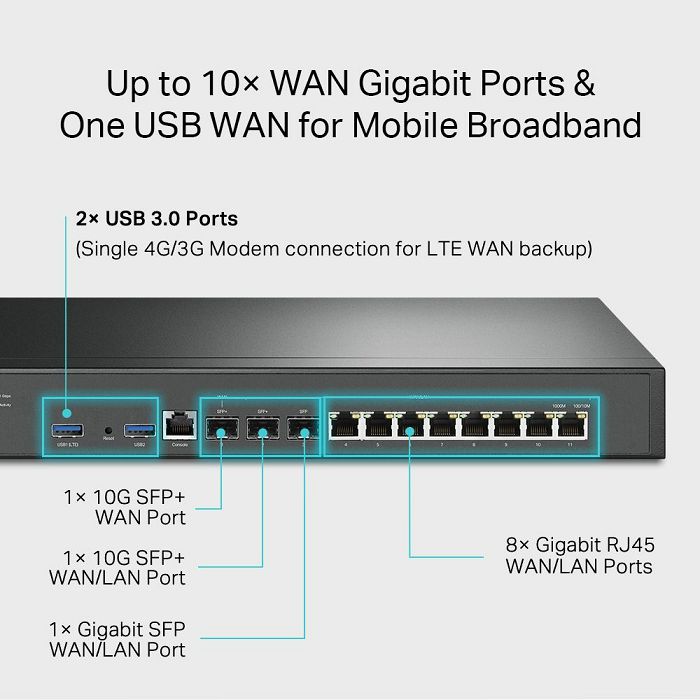

Interface
• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Ports
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Ports
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)

Power Supply

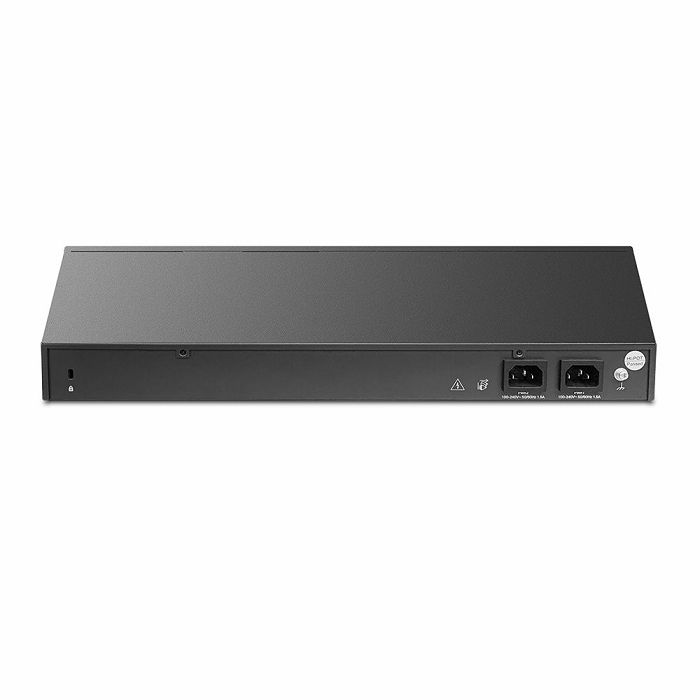

Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash 4MB SPI NOR + 256 MB NAND
DRAM 4 GB DDR4
LED PWR, SYS, WAN, LAN, USB, FAN

Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Max Power Consumption
• 26.36 W (with USB 3.0 connected)
• 19.12 W (without USB 3.0 connected)

PERFORMANCE

Concurrent Session 2,300,000
New Sessions /Second 20,000
NAT (Static IP)
• Upload: 9445.82 Mbps
• Download: 9449.26 Mbps
NAT(DHCP)
• Upload: 9426.83 Mbps
• Download: 9426.20 Mbps
NAT(PPPoE)
• Upload: 9413.96 Mbps
• Download: 9102.01 Mbps
NAT (L2TP)
• Upload: 4230.62 Mbps
• Download: 4169.53 Mbps
NAT (PPTP)
• Upload: 3933.86 Mbps
• Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate
• Upload: 1080 Mbps
• Download: 1030 Mbps
IPsec VPN Throughput
• SHA1-AES256: 2140.45 Mbps
• SHA2-AES256: 2080.20 Mbps
OpenVPN 1665.64 Mbps
L2TP VPN Throughput
• Unencrypted: 5013.50 Mbps
• Encrypted: 2274.74 Mbps
SSL VPN Throughput 1511.10 Mbps

BASIC FUNCTIONS

WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• 6to4 Tunnel
• Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address*4
DHCP
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
IPv6 WAN Connection
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing
• Static Routing
• Policy Routing
Bandwidth Control
• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing*5, Failover)
• Online Detection
NAT
• One-to-One NAT*5
• Multi-Net NAT
• Virtual Server
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit IP-based Session Limit

VPN

SSL VPN
• SSL VPN Server
• SSL VPN Client
• 500 SSL VPN Tunnels
IPsec VPN
• 300 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (32)*6
• 300 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (32)*6
• 300 Tunnels (Shared with PPTP)
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (10)*6
• 110 OpenVPN Tunnels

SECURITY

Filtering
• WEB Group Filtering*5
• URL Filtering
• Web Security*5
ARP Inspection
• Sending GARP Packets*5
• ARP Scanning*5
• IP-MAC Binding*5
Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication
• No Authentication
• Simple Password*2
• Hotspot(Local User / Voucher*2 / SMS*2 / Radius*2)
• External Radius Sever
• External Portal Sever*2
• Facebook Check-In*2
• Instagram Follow*2

MANAGEMENT

Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS

Certification CE, FCC, RoHS
Package Contents
• Omada 10G Multi-WAN Security Gateway ER8411
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment
• Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
