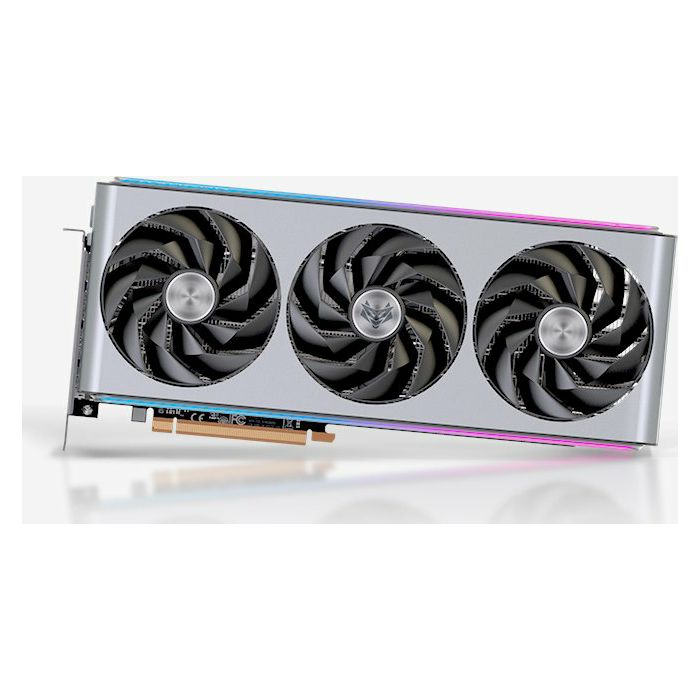

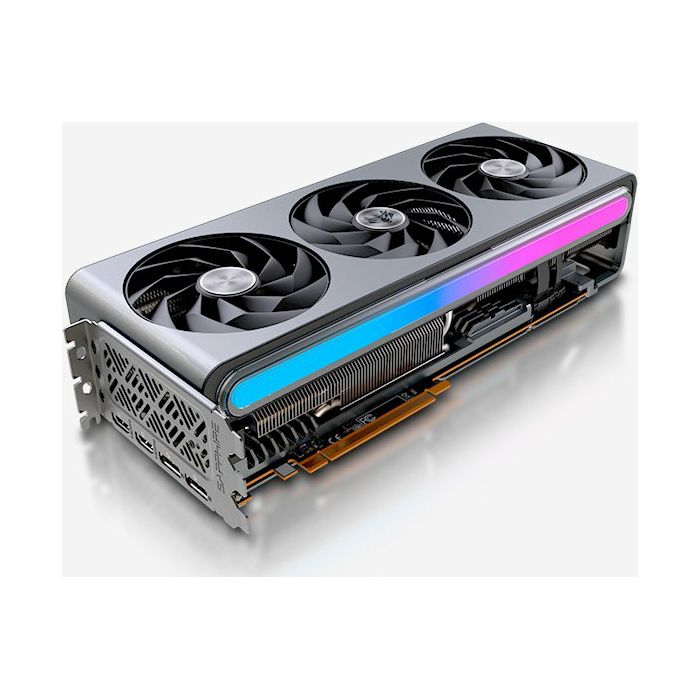

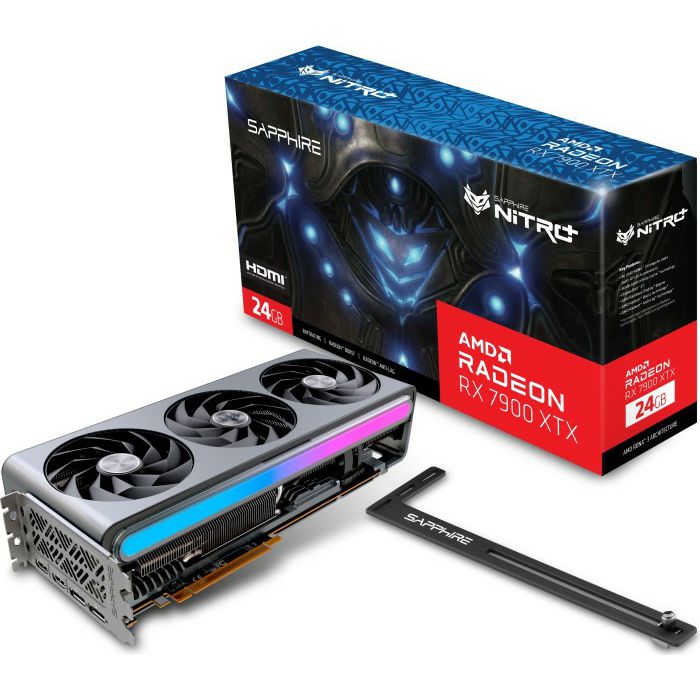

Sapphire RX7900XTX Nitro+, Vapor-X, 24GB GDDR6, 11322-01-40G

Connections 2x HDMI 2.1, 2x DisplayPort 2.1
Graphic AMD Radeon RX 7900 XTX - 24GB GDDR6 - Desktop (03.11.2022, MSRP: 999 USD))
Architecture AMD RDNA 3 (TSMC 5nm + TSMC 6nm)
Chip Navi 31 XTX, 533mm2, 58 billion transistors, multi-chip module
Chip Configuration 96 CUs (6144 ALUs / 384 TMUs / 192 ROPs), 96 RT cores, 6MB L2 cache
Base Clock unknown, Game Clock: 2510MHz, Boost Clock: 2680MHz
Overclocking unknown (Base Clock), +210MHz (Game Clock), +180MHz (Boost Clock)
Memory 24GB GDDR6, 2500MHz, 20Gbps, 384bit, 960GB/s
TDP/TGP 355W (AMD), 420W max (Sapphire)
Power supply 3x 8-pin PCIe
Cooling 3x axial fan (100mm)
Overall depth Quad Slot (3.5 Slots)
Dimensions 320x135.8x71.6mm (LxWxH)
Slot bracket full height
Construction PCIe card (full height)
Interface PCIe 4.0 x16
Chip Features Raytracing, AV1 Decode, AMD Infinity Cache (96MB)
Particularities 0dB zero-fan mode, backplate, LED lighting (RGB)
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
Multi-GPU connectivity N/A
Computing power 131.73 TFLOPS (FP16), 65.86 TFLOPS (FP32), 4.12 TFLOPS (FP64)
