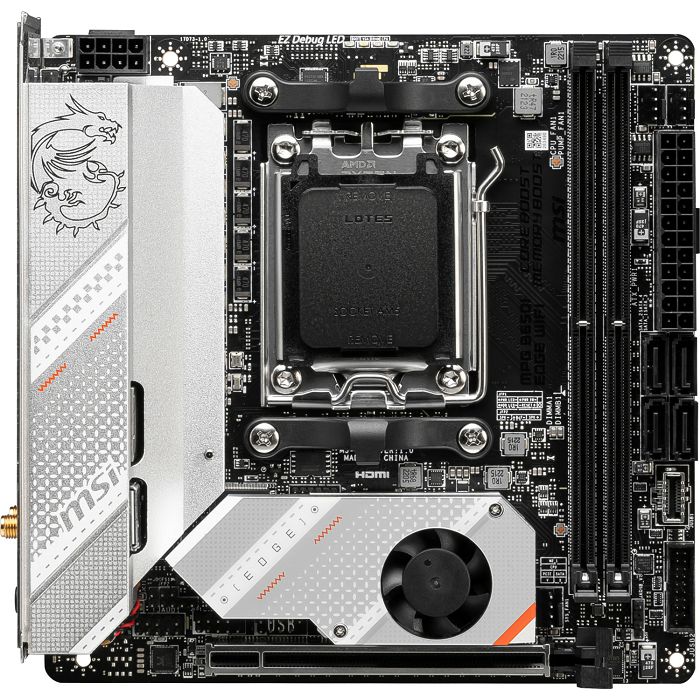

MSI MPG B650I EDGE WIFI, AM5, DDR5, ITX, 7D73-001R

Shape factor Mini-ITX
Socket AMD AM5
chipset AMD B650
CPU-Compatibility Ryzen 7000
RAM 2x DDR5 DIMM, dual PC5-52800U/DDR5-6600 (OC), max. 64GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)

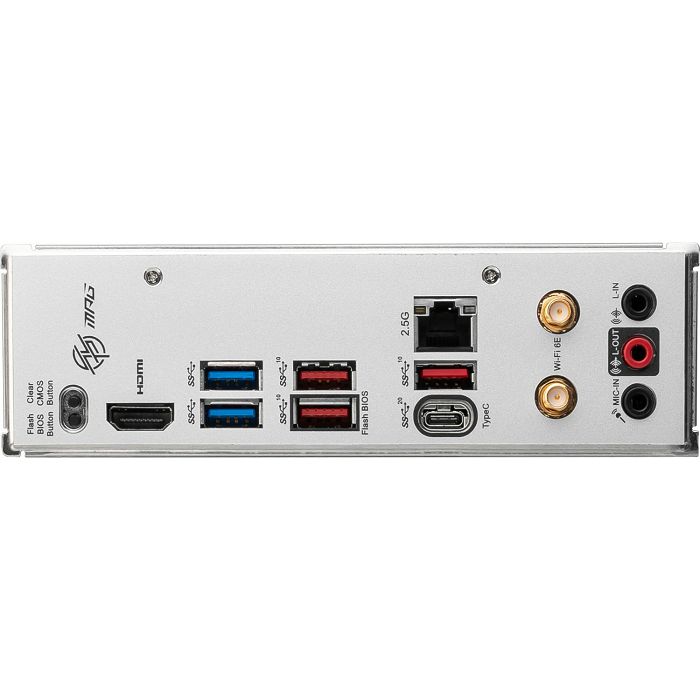

external connectors 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 3x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack
Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (B650), 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 1x fan 4-Pin, 1x pump 4-Pin
Header Lighting 1x 3-Pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
buttons/Switches clear-CMOS-Button (external), USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC4080)
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.2
RAID level 0/1/10 (B650)
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 10 virtual phases (8+2)
Lighting not available
Special features audio+solid capacitors, Diagnostic LED (LED indicators), I/O-shield integrated, 1x M.2-active cooler, onboard TPM 2.0 support (AMD fTPM)
Warranty three years (from date of manufacture, handling by merchant)
