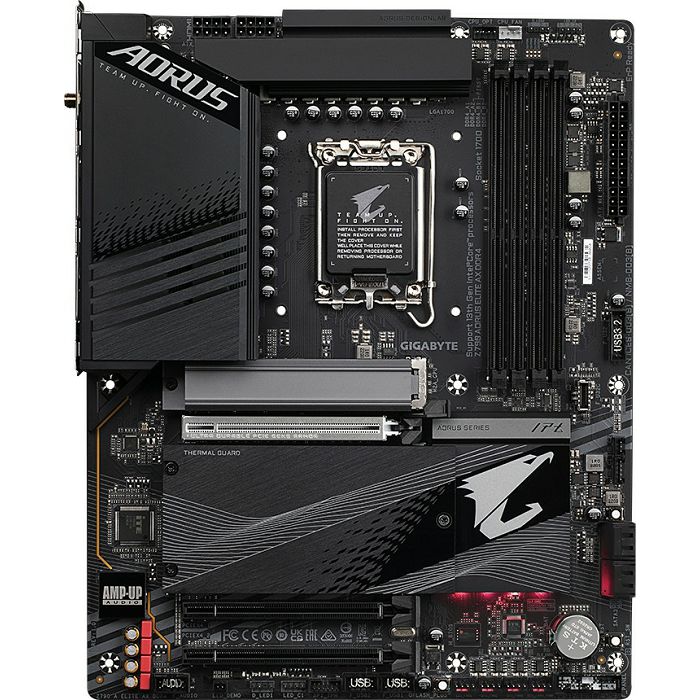

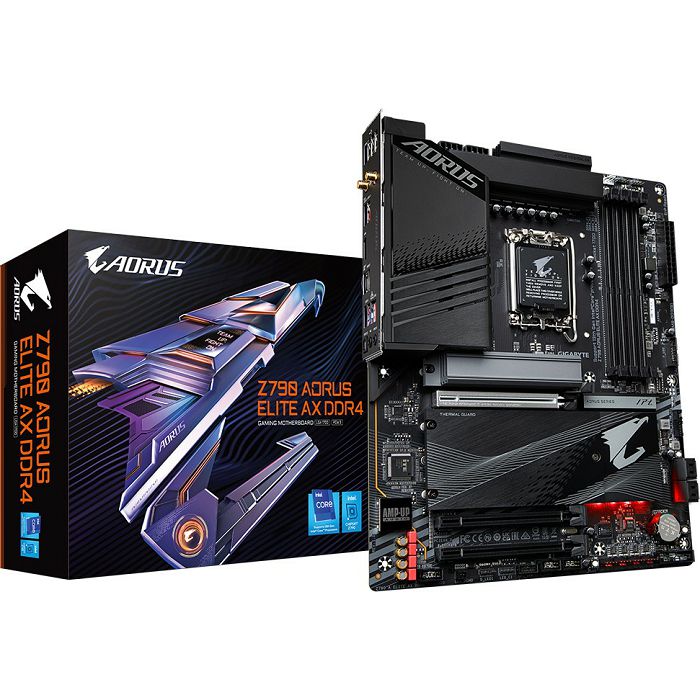

Gigabyte Z790 AORUS Elite AX, DDR4, s1700

shape factor ATX
Socket Intel 1700
chipset Intel Z790
CPU-Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR4 DIMM, dual PC4-25600U/DDR4-3200 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x4), 3x M.2/M-Key (PCIe 4.0 x4, 22110/2280), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)

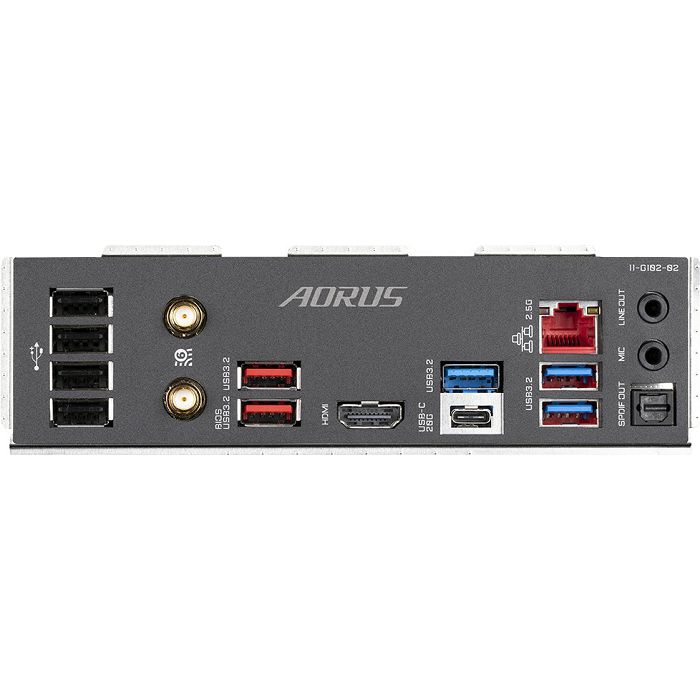

external connectors 1x HDMI 2.0 (iGPU), 1x USB-C 3.2 (20Gb/s), 2x USB-A 3.1 (10Gb/s), 3x USB 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 2x jack, 1x toslink, 2x antenna connector (RP-SMA)
Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790), 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x RTD3-Header, 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin, 3x fan 4-Pin, 1x fan/pump 4-Pin
Header Lighting 2x 4-Pin RGB (+12V/G/R/B, max. 2A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 5A)
buttons/Switches Power-Button (internal), Reset-Button (internal), clear-CMOS-Button (internal), USB BIOS Flashback/Q-Flash Plus (internal)
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
RAID level 0/1/5/10 (Z790)
Multi-GPU AMD 2-Way-CrossFireX (x16/x4)
Power connections 1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM 17 virtual phases (16+1), 9 real phases (8+1), PWM-Controller: NCP81530R (max. 10 phases)
MOSFETs CPU 16x 60A NCP303160
MOSFETs SoC 1x 60A NCP303160
Lighting RGB, 1 zone (chipset cooler)
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), I/O-shield integrated, 4x M.2-passive cooler, onboard TPM 2.0 support (Intel PTT)
