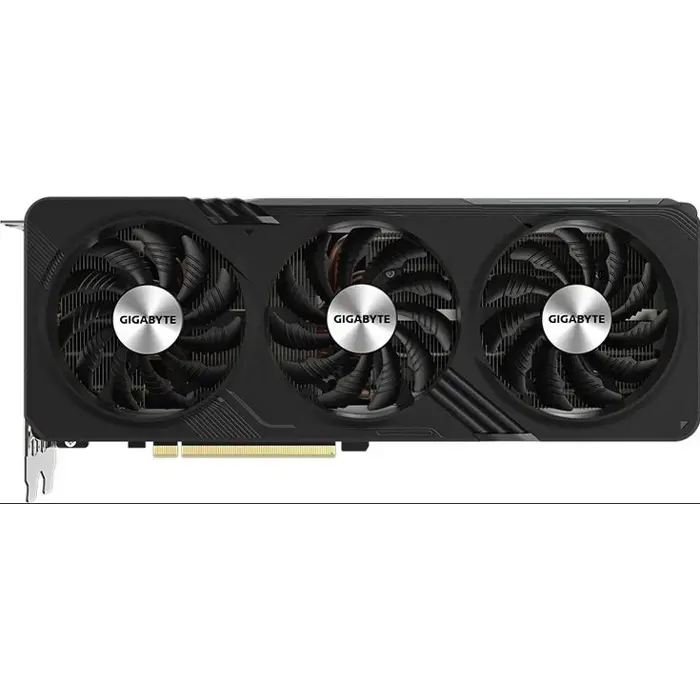

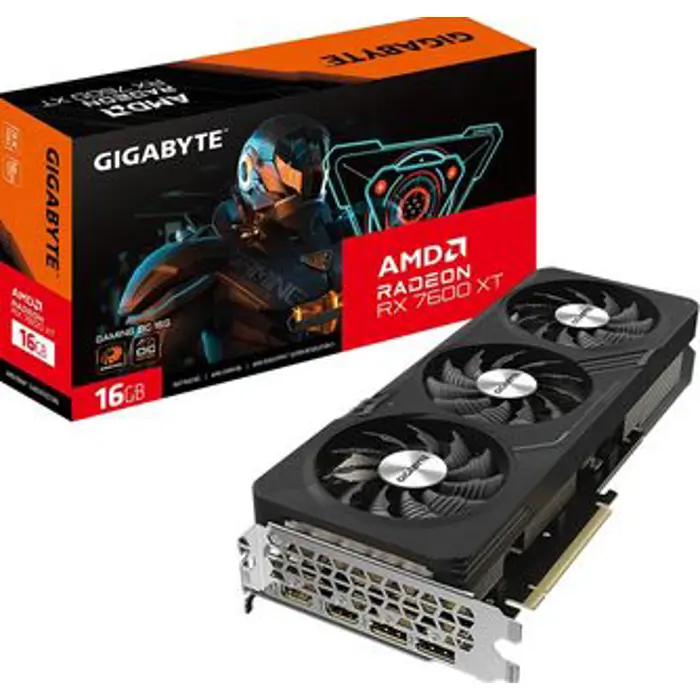

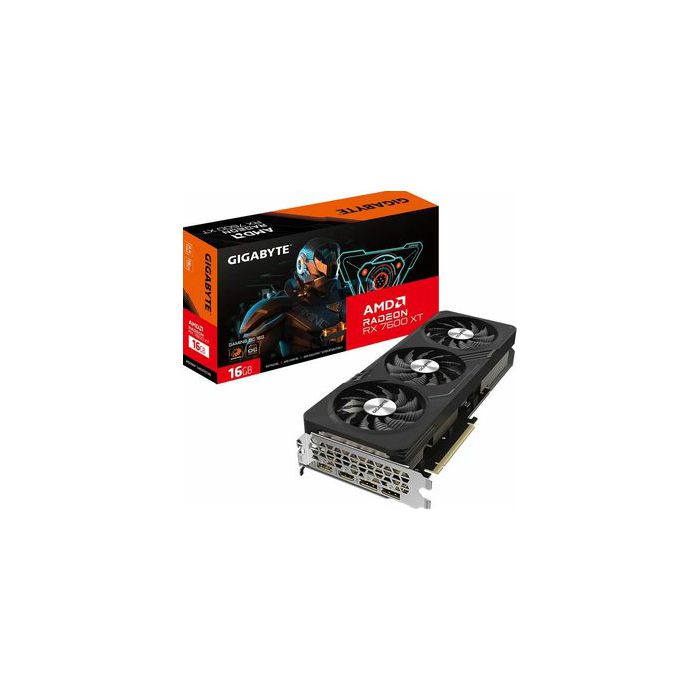

Gigabyte RX7600XT Gaming OC 16G, AMD Radeon, 16GB GDDR6, GV-R76XTGAMING OC-16GD

GPU AMD Radeon RX 7600 XT
Memory 16GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
clock Base unknown
clock Boost unknown
overclock -
Cooling 3x Axial-fan (80mm) with 0dB-zero-fan-mode
TDP/TGP 190W (AMD)
Power connections 2x 8-Pin PCIe

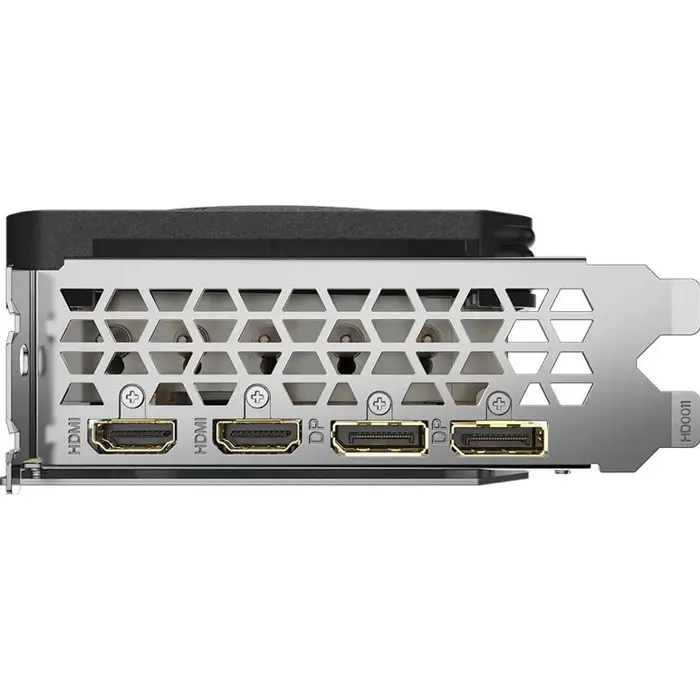

Connectors 2x HDMI 2.1, 2x DisplayPort 2.1 UHBR13.5
Interface PCIe 4.0 x16 (x8)
Special features LED lighting (RGB), Backplate
total height Triple Slot
Dimensions 281.4x116.6x52.6mm (LxWxH)
Type PCIe card (full height)
PCI slot bracket full height
Computing power not available (FP16), not available (FP32), not available (FP64)
Chip-data
Chip-Architecture RDNA 3 (from 2022/Q4)
Chip-title Navi 33 XT
Chip-Configuration 32CU (2048SP / 128TMU / 64ROP), 32 RT Cores, 2MB L2 cache, 32MB L3 cache
Chip-Manufacturing Process TSMC 6nm
Chip size 204mm2, monolithisch, 13.3 Mrd. Transistoren
Chip-functions Raytracing, AMD Infinity cache (32MB), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.2 / OpenGL 4.6 / Shader Model 6.7
