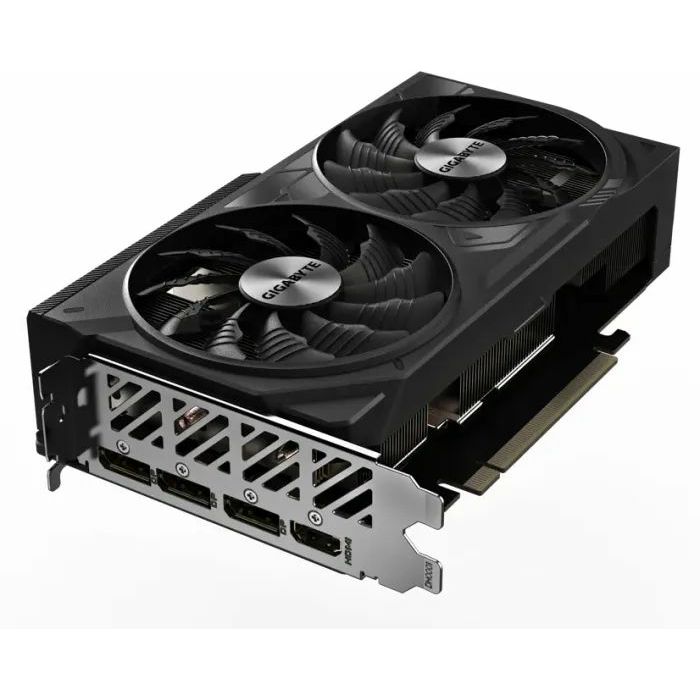

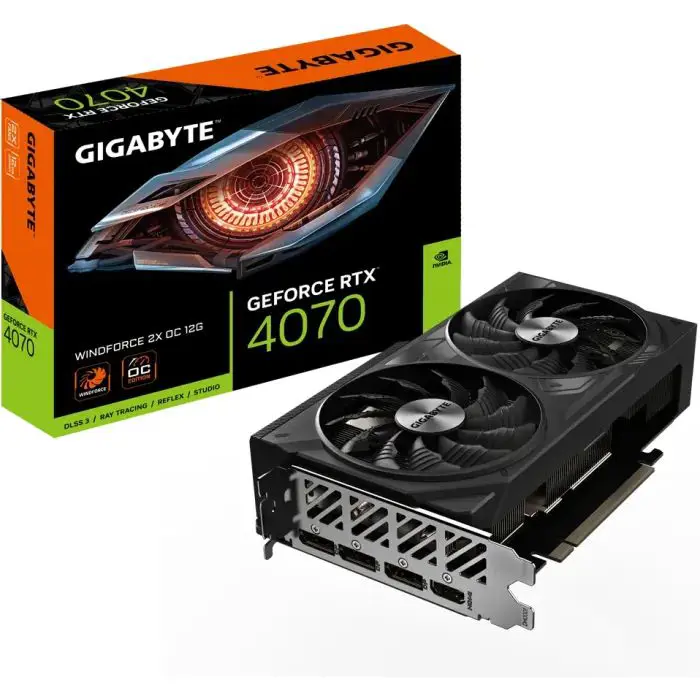

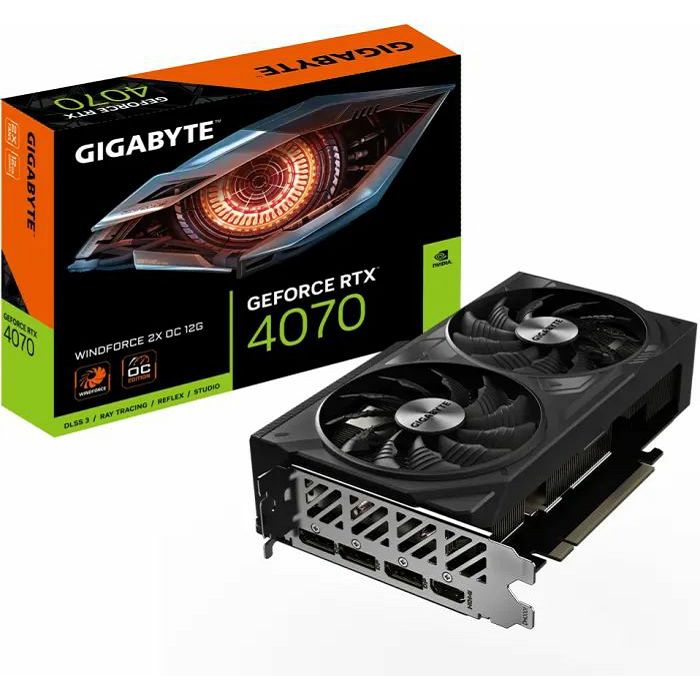

Gigabyte RTX4070 Windforce 12GB OC, 12GB GDDR6X, GV-N4070WF2OC-12GD

GPU NVIDIA GeForce RTX 4070
Memory 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
Clock Base 1920MHz (Standard Profile), 1920MHz (OC Profile)
Clock Boost 2475MHz (Standard Profile), 2490MHz (OC Profile)
Overclocking +15MHz Boost (OC Profile)
Cooling 2x axial fan (90mm) with 0dB zero-fan mode
TDP/TGP 200W (NVIDIA)
Power connections 1x 8-pin PCIe
Connections 1x HDMI 2.1a, 3x DisplayPort 1.4a
Connection PCIe 4.0 x16
Particularities Clock Profiles (Silent Mode/OC Mode), Backplate
Overall depth Triple Slot
Dimensions 201x122.3x48.4mm (LxWxH)
Construction PCIe card (full height)
Slot bezel full height
Computing power 29.32 TFLOPS (FP16), 29.32 TFLOPS (FP32), 0.46 TFLOPS (FP64)
Chip Data
Chip Architecture Ada Lovelace (from 2022/Q3)
Chip Designation AD104-250-A1 / AD104-251-A1
Chip Configuration 46SM (5888SP / 184TMU / 64ROP), 46 RT Cores, 184 Tensor Cores, 36MB L2 cache
Chip Manufacturing TSMC 5nm "NVIDIA 4N"
Chip Size 294mm2, monolithic, 35.8 billion transistors
Chip Functions Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine 1x NVENC (8th Gen, max. sessions: 8), 1x NVDEC (5th Gen), Info
Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
