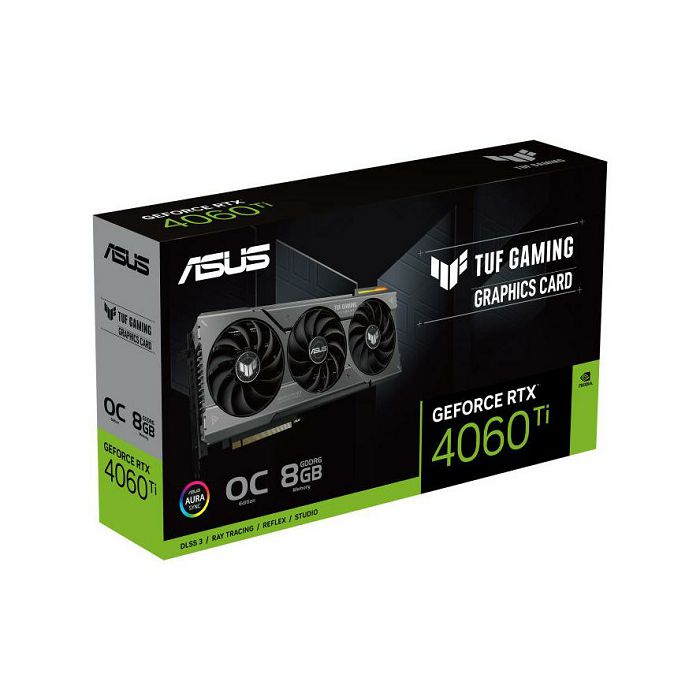

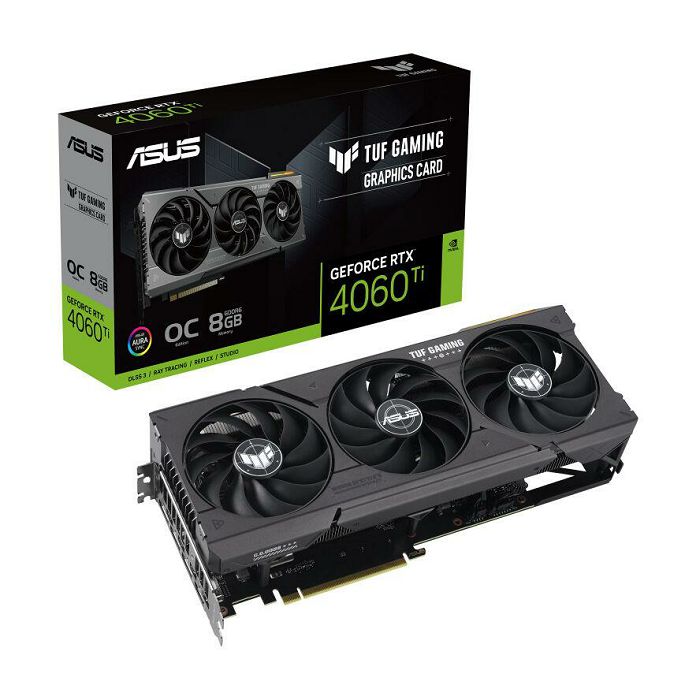

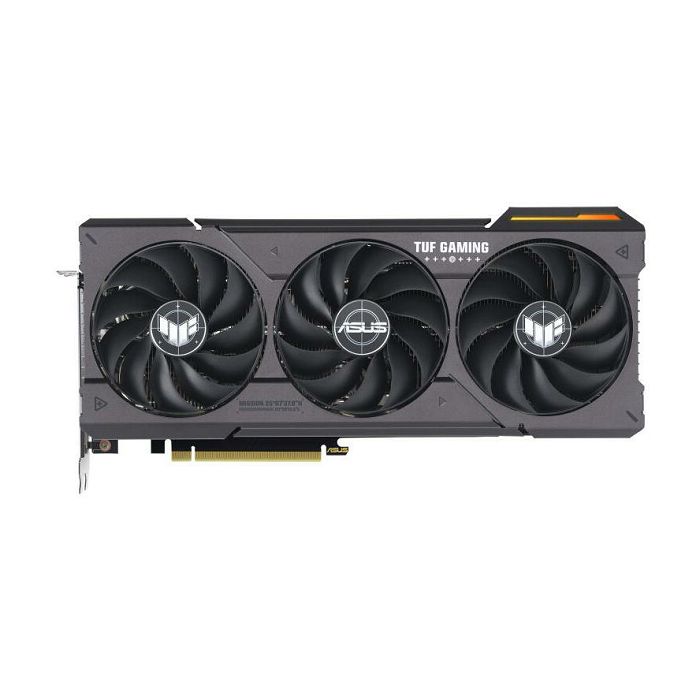

Asus RTX4060Ti TUF-RTX4060TI-O8G-GAMING, GDDR6, 90YV0J50-M0NA00

GPU NVIDIA GeForce RTX 4060 Ti
Memory 8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/?s
overclock +120MHz Boost (OC-Profile), +90MHz Boost (Standard-Profile)
clock Boost 2625MHz (Standard-Profile), 2655MHz (OC-Profile)
clock Base 2310MHz (Standard-Profile), 2310MHz (OC-Profile)
Cooling 3x Axial-fan (95mm) with 0dB-zero-fan-mode (up to 55°C)
TDP/TGP 160W (NVIDIA)
Power connections 1x 8-Pin PCIe

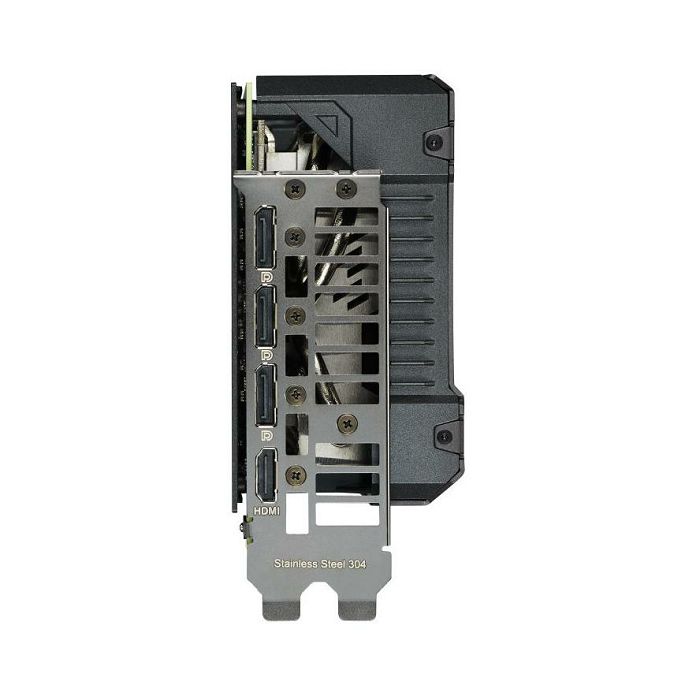

Interfaces 1x HDMI 2.1a, 3x DisplayPort 1.4a
Interface PCIe 4.0 x16 (x8)
Special features Taktprofile (Default Mode/?OC Mode), Backplate, LED lighting (RGB), Graphics Cards-Mounting (ASUS TUF Graphics Card Holder)
total height Triple Slot (3.12 Slots)
Dimensions 300x139x62.4mm (LxWxH)
Type PCIe card (full height)
PCI slot bracket full height
Computing power 23.11 TFLOPS (FP16), 23.11 TFLOPS (FP32), 0.36 TFLOPS (FP64)
Chip-data
Chip-Architecture Ada Lovelace (from 2022/?Q3)
Chip-title AD106-350-A1
Chip-Configuration 34SM (4352 ALUs /? 184 TMUs /? 64 ROPs), 34 RT Cores, 136 Tensor Cores, 32MB L2 cache
Chip-Manufacturing Process TSMC 5nm "NVIDIA 4N"
Chip size 190mm2, monolithisch
Chip-functions Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) /? CUDA 8.9 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.7
Transcoding-Engine 1x NVENC (8th Gen, max. Sessions: 5), 1x NVDEC (5th Gen), Info
encoding AV1, H.265 (4K YUV 4:2:0 /? 4K YUV 4:4:4 /? 4K Lossless /? 8K /? HEVC 10bit support /? HEVC B Frame support), H.264 (YUV 4:2:0 /? YUV 4:4:4 /? Lossless)
decoding AV1 (8bit /? 10bit), H.265 (8bit 4:2:0 /? 10bit 4:2:0 /? 12bit 4:2:0 /? 8bit 4:4:4 /? 10bit 4:4:4 /? 12bit 4:4:4), H.264, VP9 (8bit /? 10bit /? 12bit), VP8, VC-1, MPEG-2, MPEG-1
