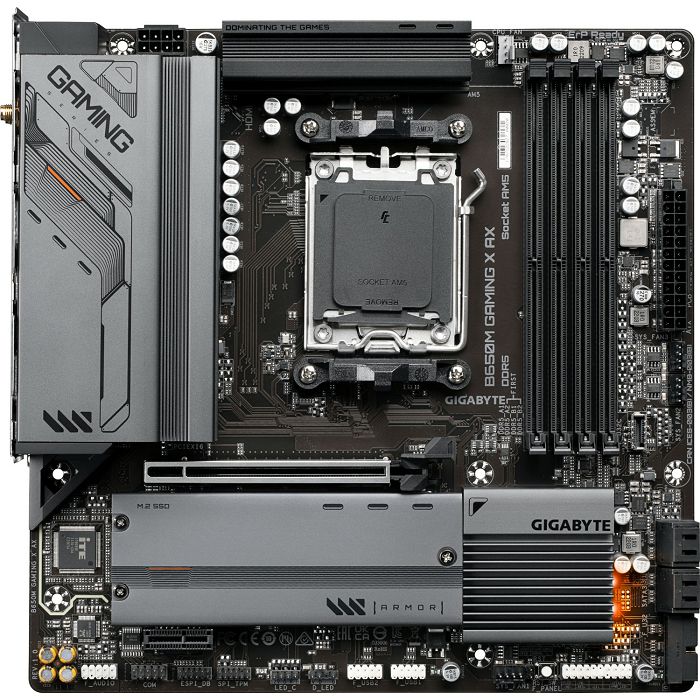

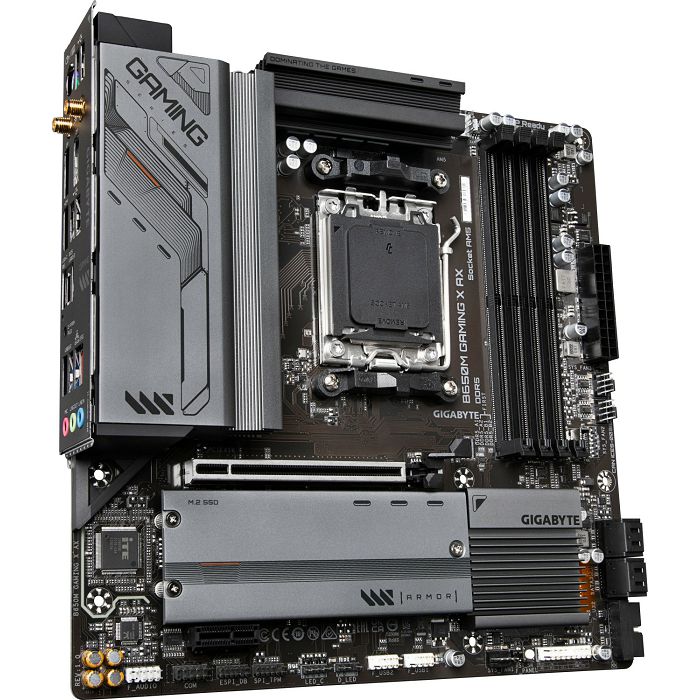

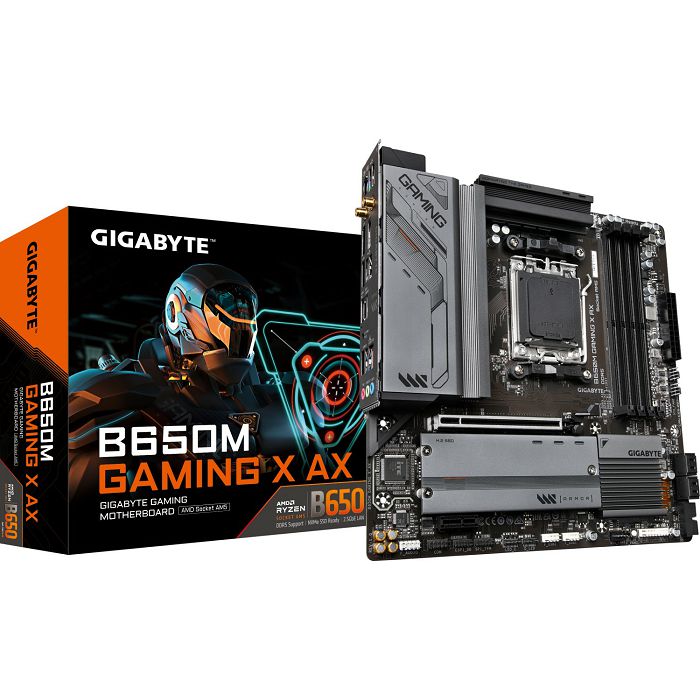

Gigabyte B650M Gaming X AX, AMD B650 chipset, AM5, DDR5

Form factor
µATX
Plinth
AMD AM5
Chipset
AMD B650
CPU Compatibility
Ryzen 7000
RAM
4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max 128GB (UDIMM)
Expansion slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 25110/2280)
External connections
1x HDMI 2.1 (iGPU), 2x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 3x jack, 1x PS/2 combo, 2x antenna connector (RP-SMA)
Internal connections
1x USB-C 3.1 Key-A header (10Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x serial, 1x TPM header, 1x speaker header
Header Cooling
1x CPU fan 4-pin, 3x fan 4-pin
Header Lighting
1x 3-pin ARGB (+5V/DATA/GND, max. 5A), 1x 4-pin RGB (+12V/G/R/B, max. 2A)
Buttons/Switches
Reset button (internal), USB BIOS Flashback/Q-Flash Plus (external)
Audio
7.1 (Realtek ALC897)
Graphic
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, AMD RZ616/MediaTek MT7922A22M), Bluetooth 5.2
RAID Levels
0/1/10 (B650)
Electrical connections
1x 24-pin ATX, 1x 8-pin EPS12V
VRM
8 virtual phases (6+2), 8 real phases (6+2), PWM controller: XDPE192C3B (max. 12 phases)
MOSFETs CPU
6x 60A NCP303160
MOSFETs SoC
2x 60A NCP303160
Lighting
RGB, 1 Zone (Chipset Cooler)
BIOS
1x 32MB (256Mb)
Particularities
Audio+solid capacitors, 2x M.2 passive coolers, integrated I/O panel, onboard TPM 2.0 support (AMD fTPM)
