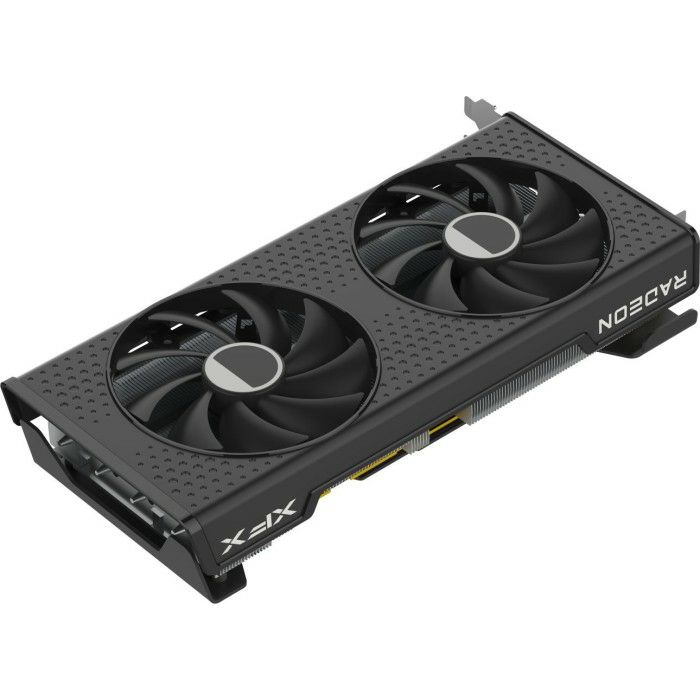

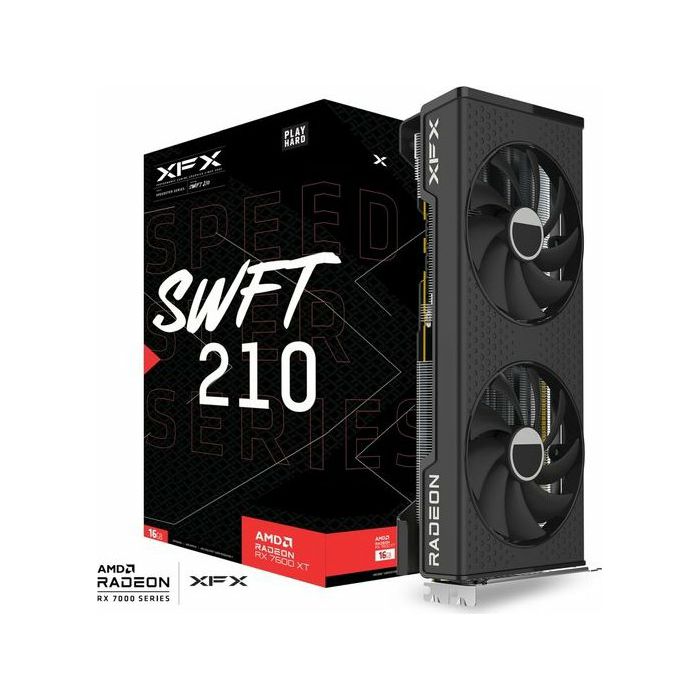

XFX RX7600XTSWFT 210, AMD Radeon, 16GB GDDR6, RX-76TSWFTFP

GPU AMD Radeon RX 7600 XT
Memory 16GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
Clock Base 2029MHz
Clock Boost 2470-2755MHz
Overclocking +309MHz Base
Cooling 2x axial fan (100mm) with 0dB zero-fan mode
TDP/TGP 190W (AMD)
Power connections 1x 8-pin PCIe
Connections 1x HDMI 2.1a, 3x DisplayPort 2.1 UHBR13.5
Connection PCIe 4.0 x16 (x8)
Particularities Backplate
Overall depth Dual Slot
Dimensions 241x131x41mm (LxWxH)
Construction PCIe card (full height)
Slot bezel full height
Computing power 45.14 TFLOPS (FP16), 22.57 TFLOPS (FP32), 0.71 TFLOPS (FP64)
Chip Data Chip Architecture
RDNA 3 (from 2022/Q4) Chip Designation
Navi 33 XT Chip Configuration
32CU (2048SP / 128TMU / 64ROP), 32 RT Cores, 2MB L2 Cache, 32MB L3 Cache
Chip Manufacturing TSMC 6nm
Chip Size 204mm2, monolithic, 13.3 billion transistors
Chip Functions Ray tracing, AMD Infinity Cache (32MB), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.2 / OpenGL 4.6 / Shader Model 6.7
Encoding AV1, H.265, H.264
Decoding AV1, H.265, H.264, VP9
