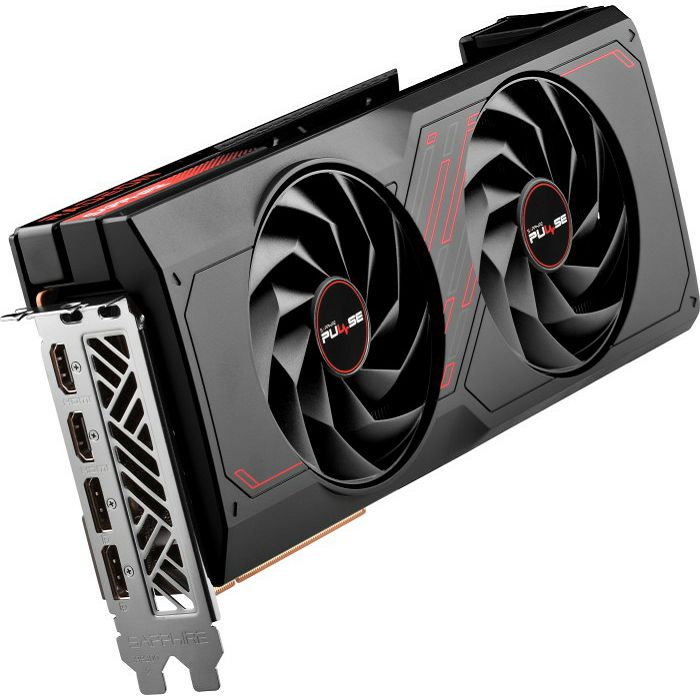

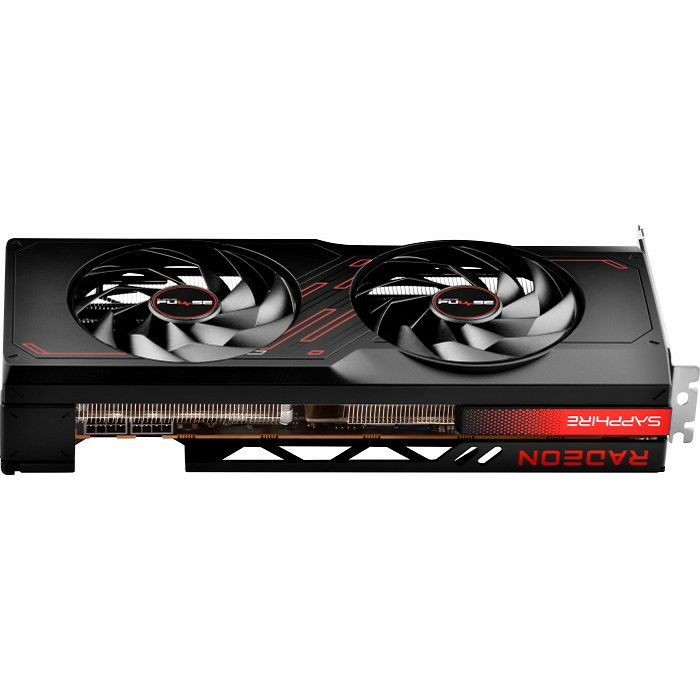

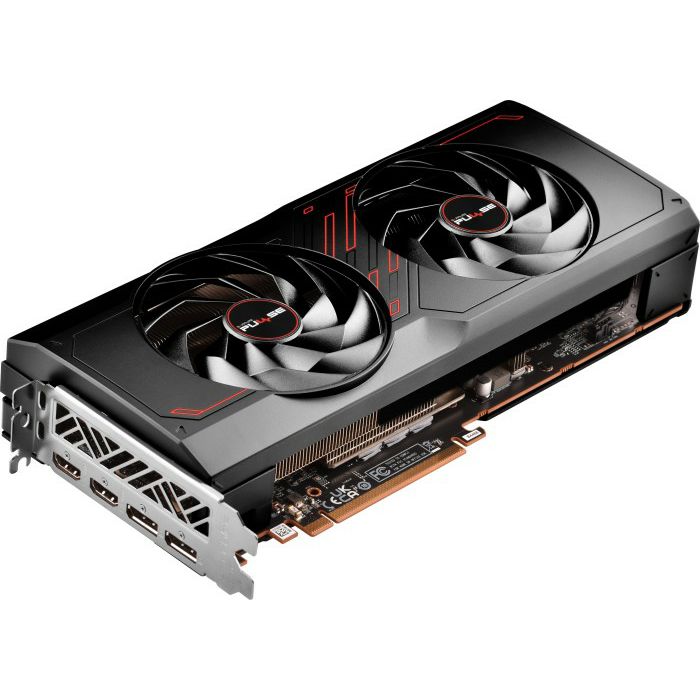

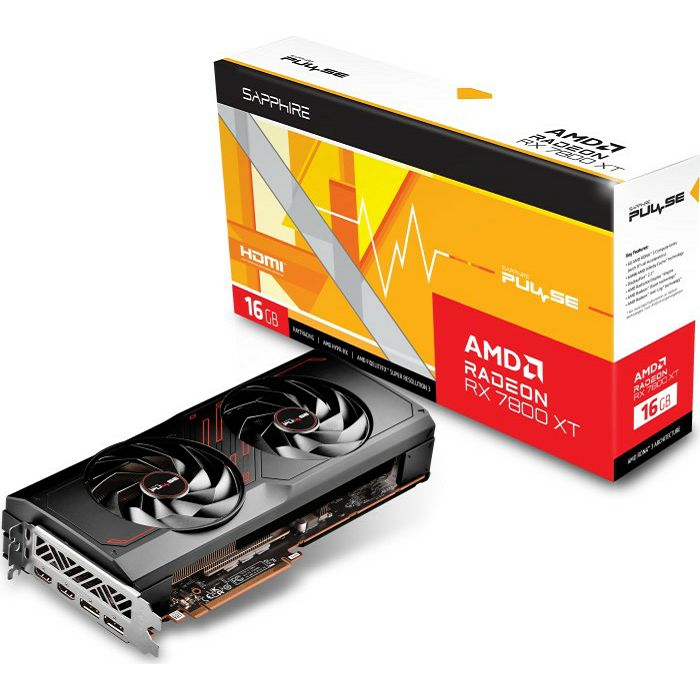

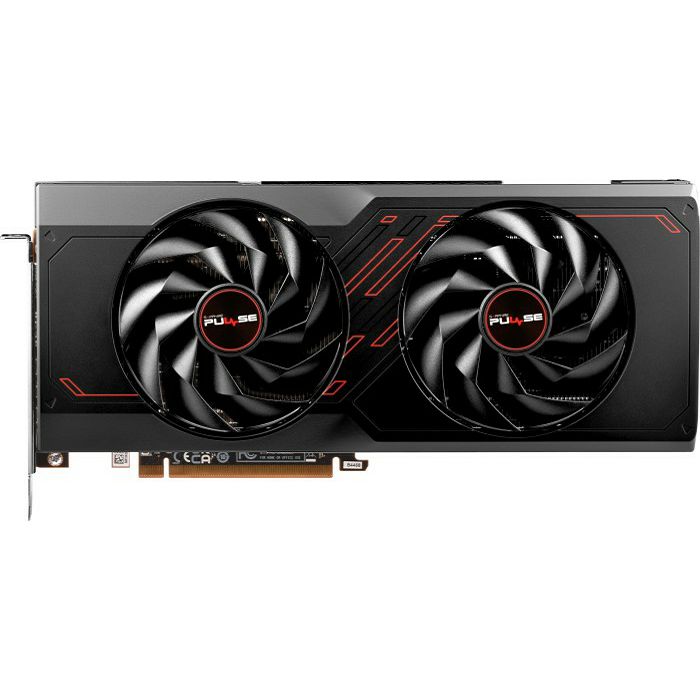

Sapphire RX7800XT Gaming Pulse, 16GB, GDDR6, 11330-02-20G

GPU AMD Radeon RX 7800 XT
Memory 16GB GDDR6, 256bit, 19.4Gbps, 2425MHz, 621GB/?s
overclock -
clock Boost 2124-2430MHz
clock Base unknown
Cooling 2x Axial-fan (95mm) with 0dB-zero-fan-mode
TDP/TGP 263W (AMD), max. 266W (Sapphire)
Power connections 2x 8-Pin PCIe
Interfaces 2x HDMI 2.1, 2x DisplayPort 2.1
Interface PCIe 4.0 x16

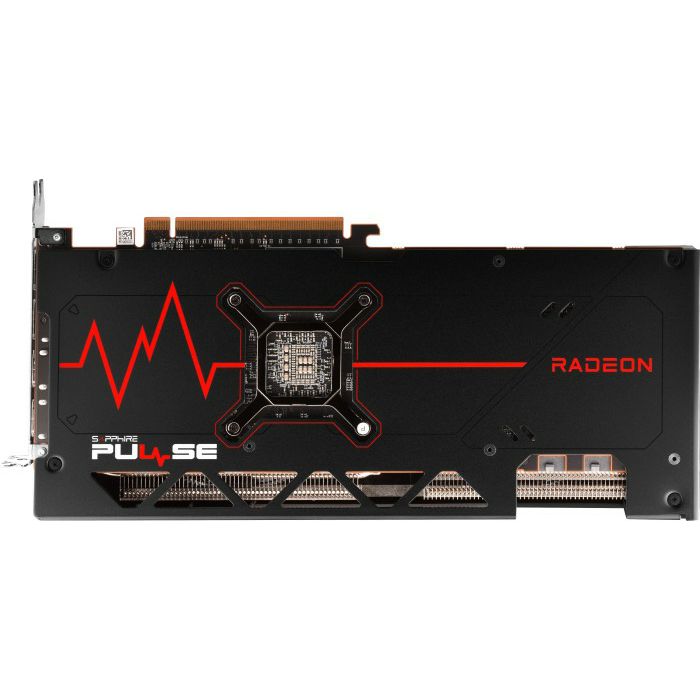

Special features Backplate
total height Triple Slot (2.5 Slots)
Dimensions 280x128.75x52.57mm (LxWxH)
Type PCIe card (full height)
PCI slot bracket full height
Computing power 74.65 TFLOPS (FP16), 37.32 TFLOPS (FP32), 2.33 TFLOPS (FP64)
Chip-data
Chip-Architecture RDNA 3 (from 2022/?Q4)
Chip-title Navi 32 XT
Chip-Configuration 60CU (3840 ALUs /? 240 TMUs /? 96 ROPs), 60 RT Cores, 4MB L2 cache, 64MB L3 cache
Chip-Manufacturing Process TSMC 5nm + TSMC 6nm
Chip size 346mm2, Multi-Chip module (4 MCM-Chiplets)
Chip-functions Raytracing, AMD Infinity cache (64MB), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.1 /? OpenGL 4.6 /? Shader Model 6.7
Transcoding-Engine VCN 4.0, Info
encoding AV1, H.265, H.264
decoding AV1, H.265, H.264, VP9
