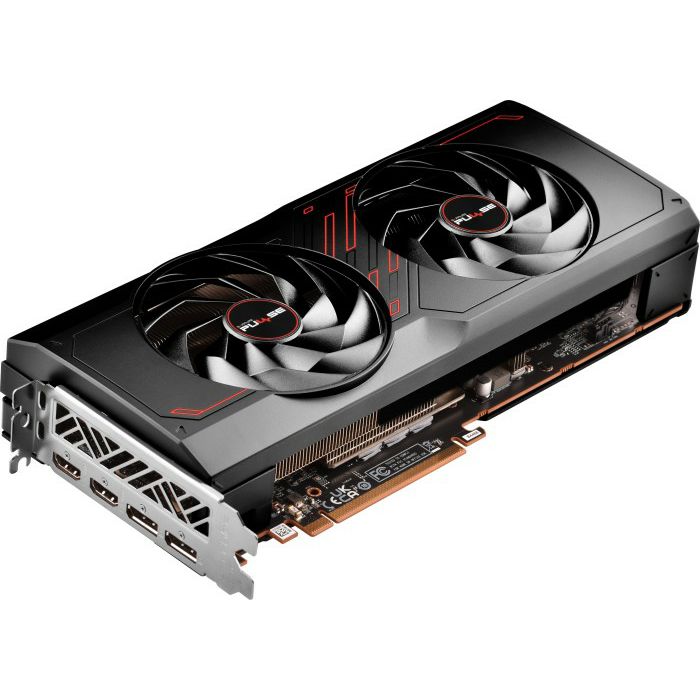

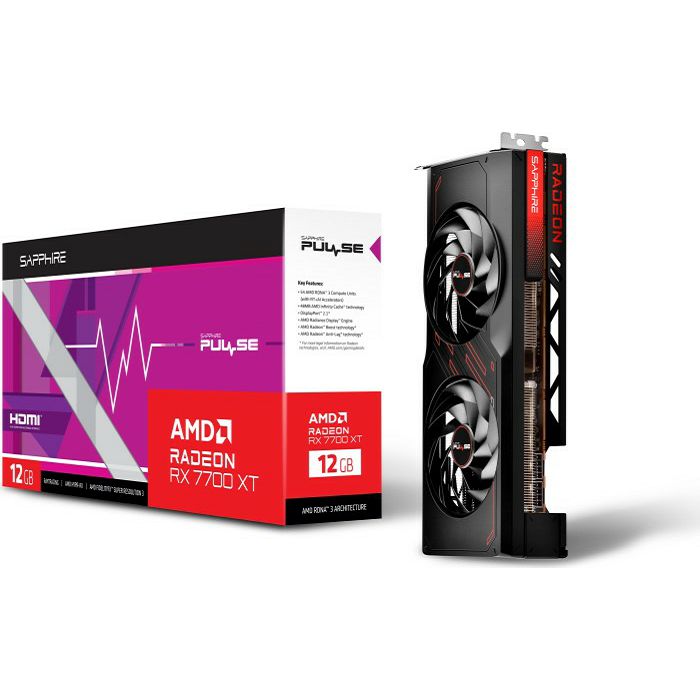

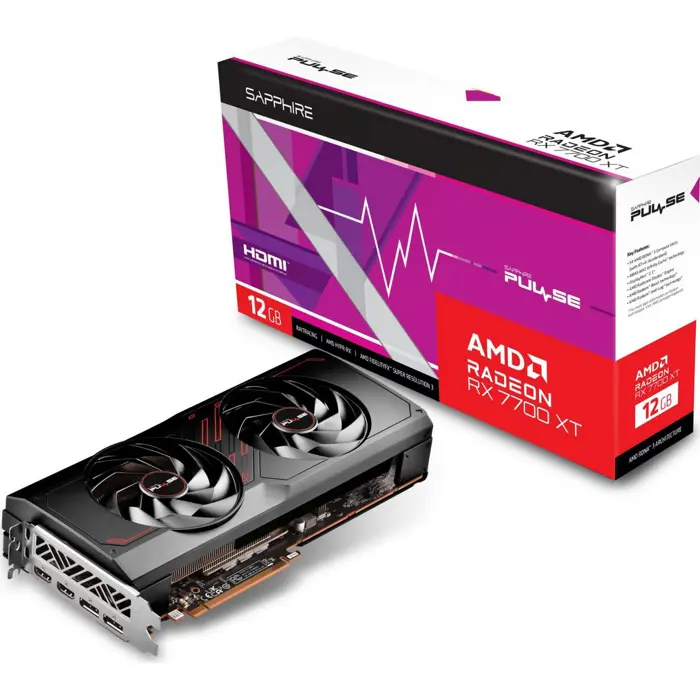

Sapphire RX7700XT Pulse, 12GB, GDDR6, 11335-04-20G

GPU AMD Radeon RX 7700 XT
Memory 12GB GDDR6, 192bit, 18Gbps, 2250MHz, 432GB/s
Overclocking -
Clock Boost 2171-2544MHz
Clock Base unknown
Cooling
2x axial fans (95mm) with 0dB zero-fan mode TDP/TGP
245W (AMD), max. 230W (Sapphire)
Power connections 2x 8-pin PCIeConnections
2x HDMI 2.1, 2x DisplayPort 2.1
Connection PCIe 4.0 x16
Particularities Backplate
Overall depth Triple Slot (2.5 Slots)
Dimensions 280x128.75x52.57mm (LxWxH)
Construction PCIe card (full height) Slot bezel
full height
Computing power 70.34 TFLOPS (FP16), 35.17 TFLOPS (FP32), 2.2 TFLOPS (FP64)
Chip Data
Chip Architecture RDNA 3 (from 2022/Q4)
Chip Designation Navi 32
Chip Configuration 54CU (3456 ALUs / 216 TMUs / 96 ROPs), 54 RT Cores, 2MB L2 Cache, 48MB L3 Cache
Chip Manufacturing TSMC 5nm + TSMC 6nm
Chip Size 346mm2, multi-chip module (3 MCM chiplets)
Chip Functions Ray tracing, AMD Infinity Cache (48MB), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine VCN 4.0, Info
Encoding AV1, H.265, H.264
Decoding AV1, H.265, H.264, VP9
