Powercolor RX7800XT Hellhound, 16GB, RX7800XT 16G-L/OC

GPU
AMD Radeon RX 7800 XT
Memory
16GB GDDR6, 256bit, 19.4Gbps, 2425MHz, 621GB/?s
overclock
+90MHz Boost (OC-Profile), +89MHz Game (OC-Profile)
clock Boost
2124-2430MHz (Standard-Profile), 2213-2520MHz (OC-Profile)
clock Base
unknown
Cooling
3x Axial-fan (2x 100mm + 90mm, blue/?purple illuminated) with 0dB-zero-fan-mode (up to 60°C)
TDP/TGP
263W (AMD)
Power connections
2x 8-Pin PCIe

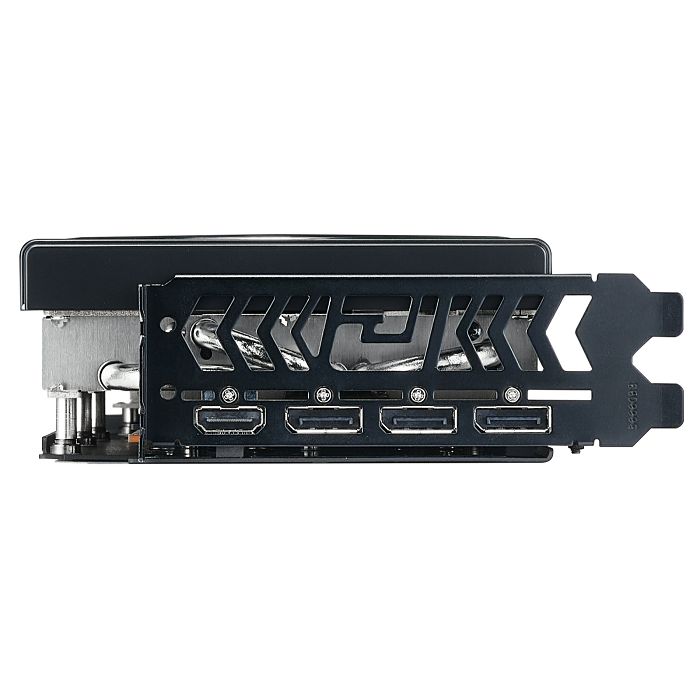

Interfaces
1x HDMI 2.1, 3x DisplayPort 2.1
Interface
PCIe 4.0 x16
Special features
Taktprofile (STD Mode/?OC Mode), Backplate, LED lighting (blue), LED lighting (purple), LED switch
total height
Triple Slot
Dimensions
332x147x50mm (LxWxH)
Type
PCIe card (full height)
PCI slot bracket
full height
Computing power
77.41 TFLOPS (FP16), 38.71 TFLOPS (FP32), 2.42 TFLOPS (FP64)
Warranty
two years at Partnerdesign (one year at reference design, only if purchased through authorized seller, only valid to the original owner)
Chip-data
Chip-Architecture
RDNA 3 (from 2022/?Q4)
Chip-title
Navi 32 XT
Chip-Configuration
60CU (3840 ALUs /? 240 TMUs /? 96 ROPs), 60 RT Cores, 4MB L2 cache, 64MB L3 cache
Chip-Manufacturing Process
TSMC 5nm + TSMC 6nm
Chip size
346mm2, Multi-Chip module (4 MCM-Chiplets)
Chip-functions
Raytracing, AMD Infinity cache (64MB), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.1 /? OpenGL 4.6 /? Shader Model 6.7
Transcoding-Engine
VCN 4.0, Info
encoding
AV1, H.265, H.264
decoding
AV1, H.265, H.264, VP9
