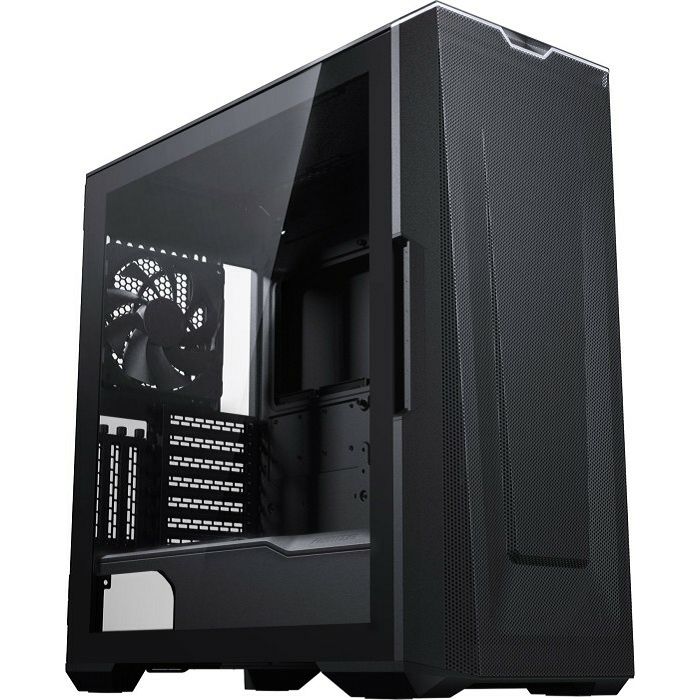

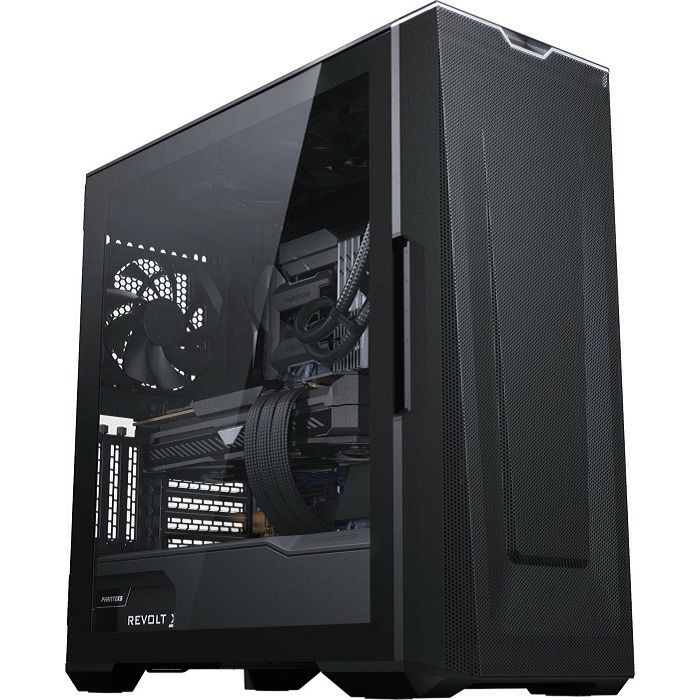

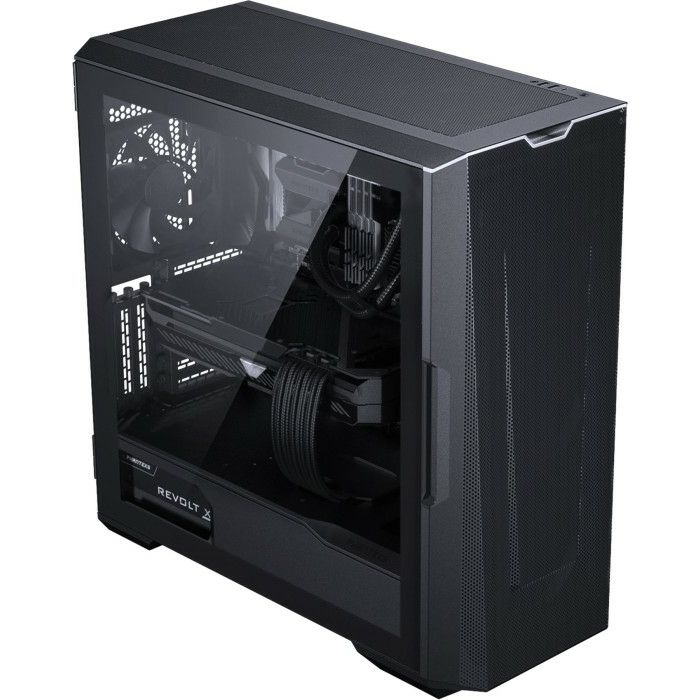

Phanteks Midi Tower Eclipse G500A, Black, glass window, PH-EC500GA_BBK01

external
not available
Internal
2x 2.5"/3.5" (transverse, HDD cage), 3x 2.5", 8x 2.5"/3.5" (optional)
front I/O
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x headphone/?microphone
PCI-slots
10 (3x Riser Card)
Fan(s) (front)
3x 140mm
Fan(s) (rear)
1x 140mm
Fans (left)
not available
Fans right
not available
Fan(s) (top)
3x 140mm (optional)
Fan(s) (bottom)
not available
Fans (other)
not available
radiator sizes
120/?140/?240/?280/?360/?420mm front, 120/?140/?240/?280/?360mm top, 120mm rear
Motherboard
to ATX (280mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x11")
Power supply
ATX (max. 250mm deep, 195mm with HDD-cage)
Power supply position
bottom
CPU Coolers
max. 185mm height
Graphics Cards
max. 435mm
Colour
black, inside black
Lighting
RGB-Header 3-Pin ARGB (+5V/?DATA/?GND), integrated RGB-LED lighting
Dimensions (WxHxD)
240x515x500mm
Capacity
61.80l
Weight
10.53kg
Type
Midi-Tower

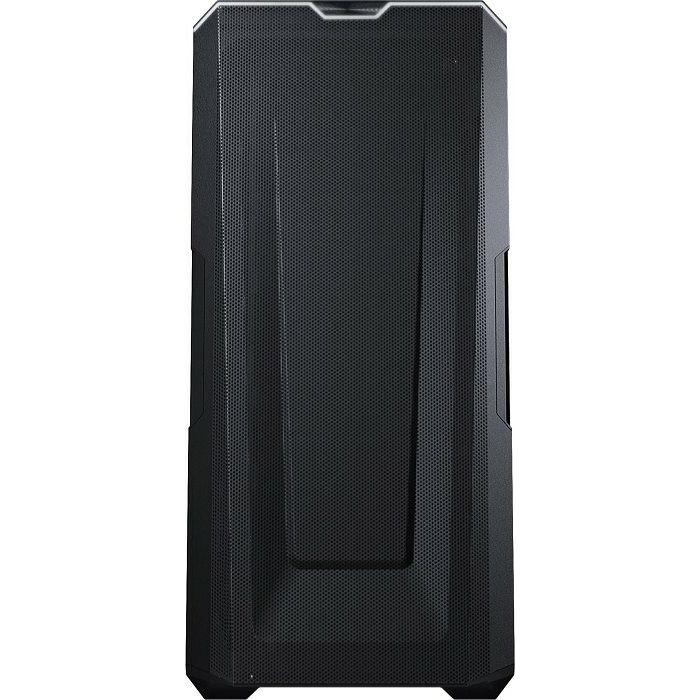

front
Mesh
above
partially closed, mainly fan grill, Mesh
below
partially closed, fan grill rear, dust filter outdoor
left
closed, glass
right
closed

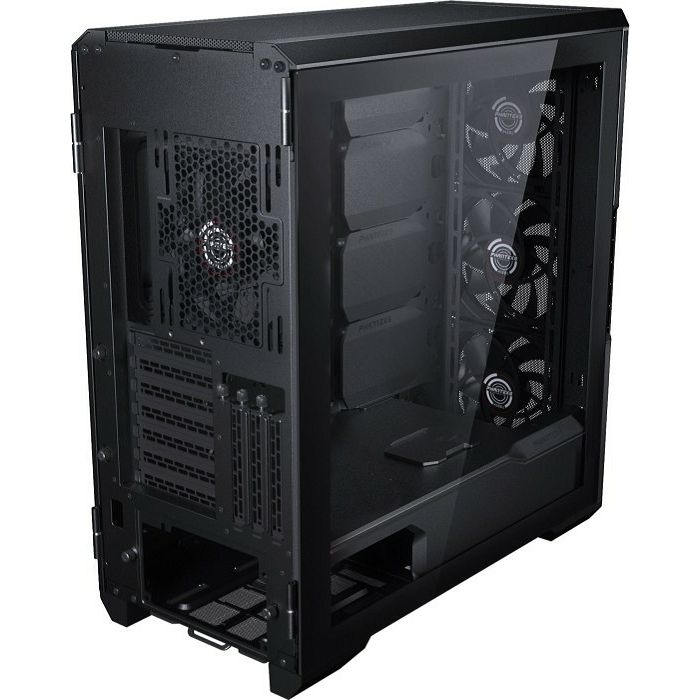

aft
partially closed, fan grill right top, PCI slots (7x horizontal, 3x vertical)

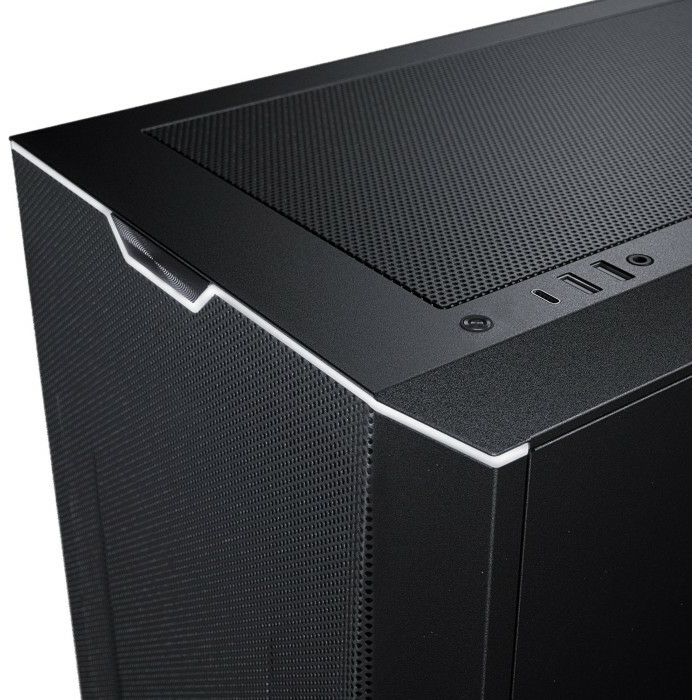

front I/O position
Housing side: top, Height: front, position: right
Special features
Cable Management, dust filter, side panel window made out of glass
Note
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
