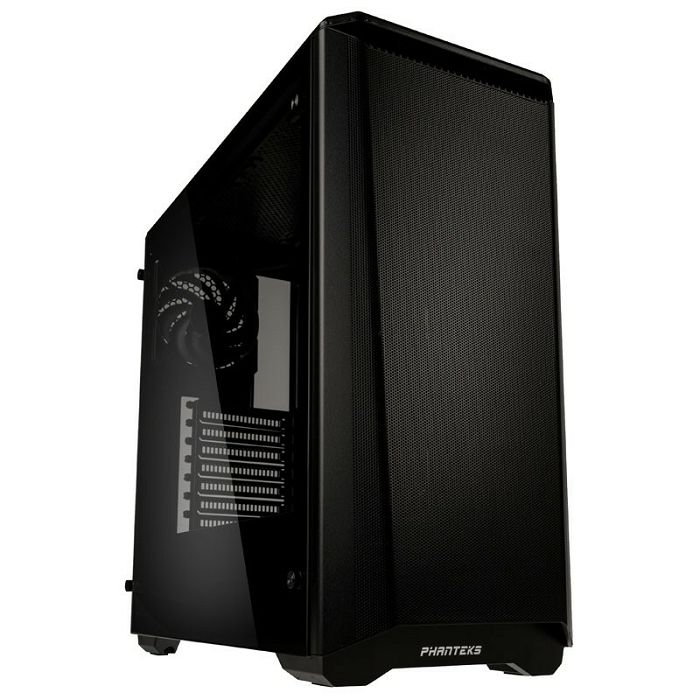

Phanteks Midi Tower Eclipse P400A TG Black, PH-EC400ATG_BK01

external not available
Internal 2x 3.5" (transverse, HDD rails), 2x 2.5"
Front I/O 2x USB-A 3.0, 1x microphone, 1x headphone
PCI-slots 7
Fan(s) (front) 1x 120mm or 3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (rear) 1x 120mm
Fans (left) not available
Fans right not available
Fan(s) (top) 2x 140mm (optional)
Fan(s) (bottom) not available
Fans (other) not available
Radiator sizes 120/?140/?240/?280/?360mm front, not available top, 120mm rear
Motherboard to ATX (272mm wide)
Supported motherboards mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x10.7")
Power supply ATX (max. 270mm deep)
Power supply position bottom
CPU Coolers max. 160mm height
Graphics Cards max. 420mm (280mm with HDD-cage)
Colour black, inside black
Dimensions (WxHxD) 210x465x470mm
Capacity 45.90l
Weight 7.00kg
Type Midi-Tower
Special features Cable Management, dust filter, integrated fan control, side panel window made out of glass
Note E-ATX mainboard dimensions (305x330mm respectively 12"x13") are not fully supported.
