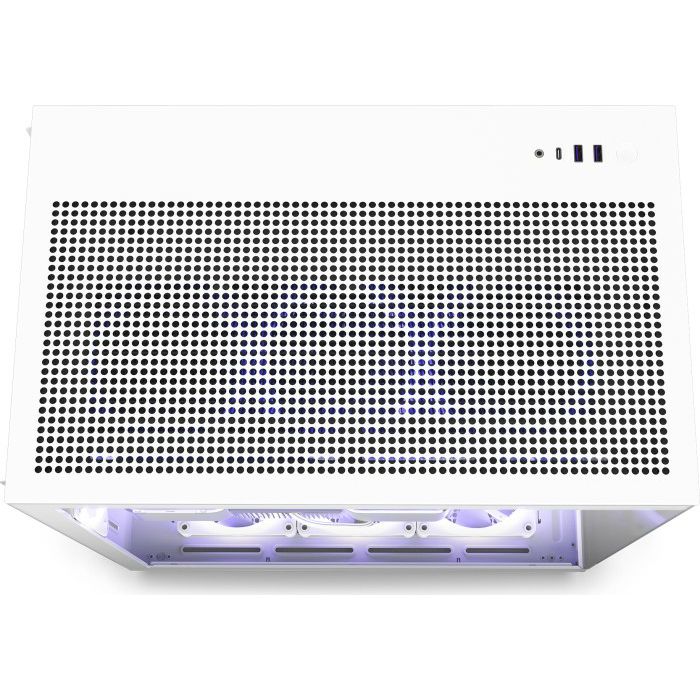

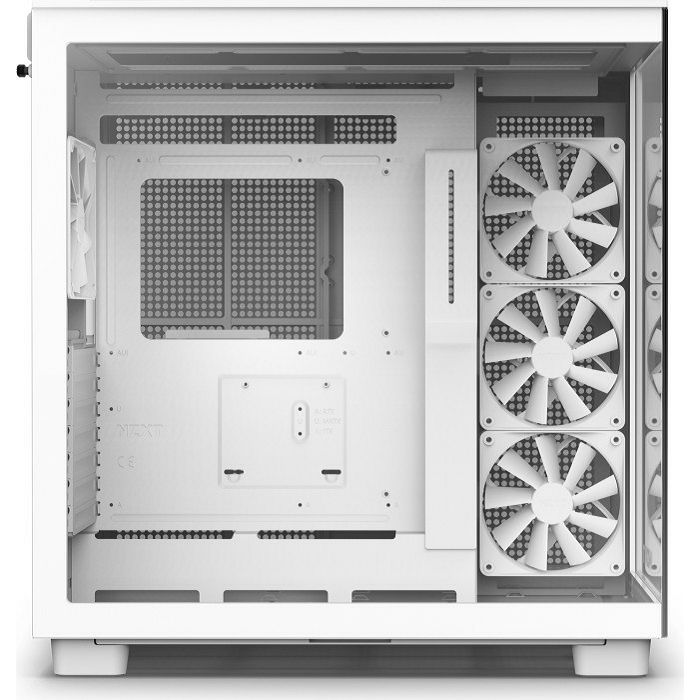

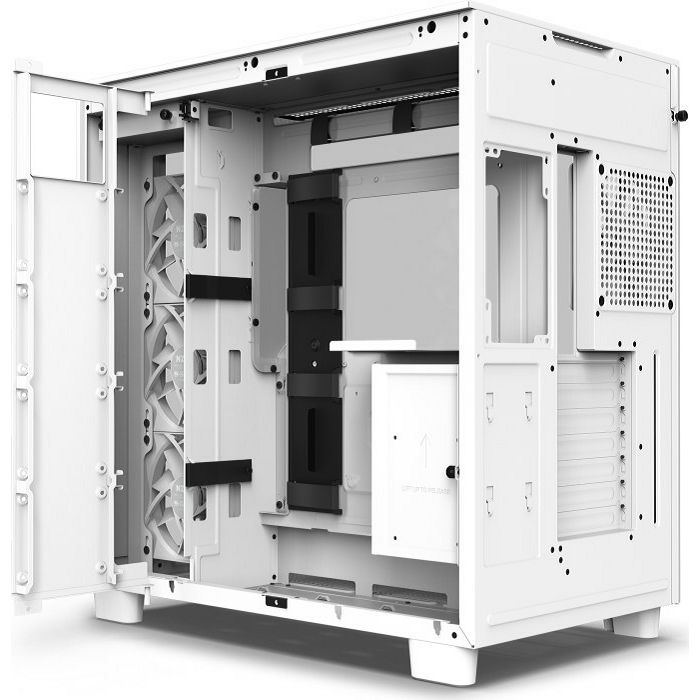

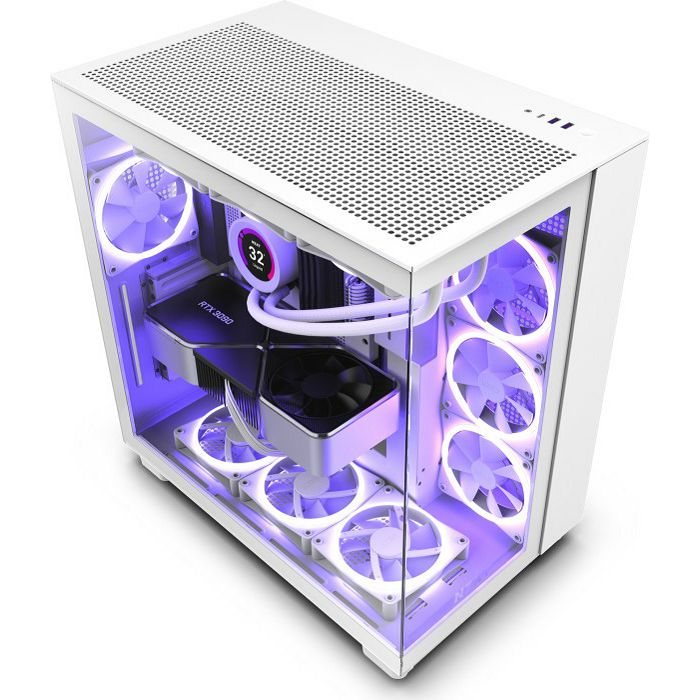

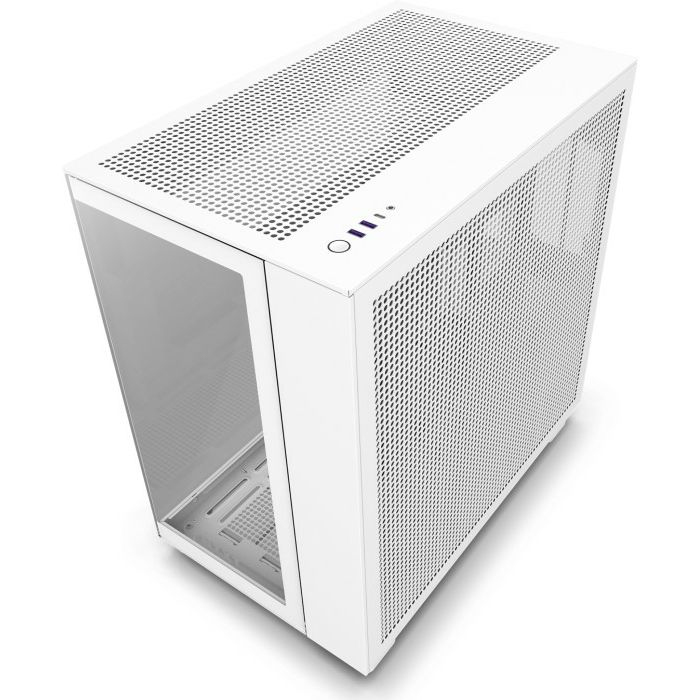

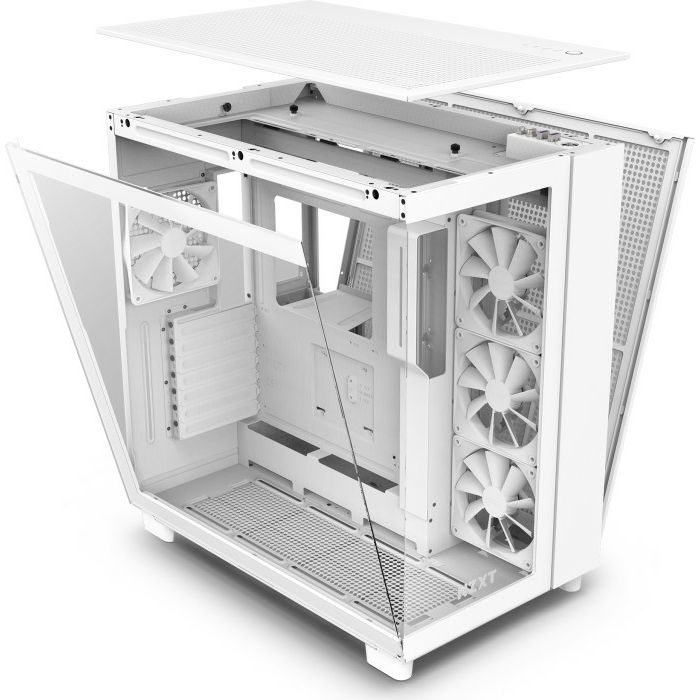

NZXT Midi Tower H9 Flow White Window, CM-H91FW-01

external
not available
Internal
2x 2.5"/3.5" (transverse, HDD rails), 4x 2.5"
front I/O
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x headphone/?microphone
PCI-slots
7
Fan(s) (front)
not available
Fan(s) (rear)
1x 120mm, 1200rpm, 1.05mmH2O, 105.64m3/?h, 25.1dB(A)
Fans (left)
not available
Fans right
3x 120mm, 1200rpm, 1.05mmH2O, 105.64m3/?h, 25.1dB(A)
Fan(s) (top)
3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (bottom)
3x 120mm (optional) or 2x 140mm (optional)
Fans (other)
not available
radiator sizes
not available front, 120/?140/?240/?280/?360mm top, 120mm rear, 120/?240/?360mm right
Motherboard
to ATX
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")
Power supply
ATX (max. 200mm deep)
Power supply position
top (vertical)
CPU Coolers
max. 165mm height
Graphics Cards
max. 435mm
Colour
white, inside white
Lighting
without Illumination
Dimensions (WxHxD)
290x495x466mm
Capacity
66.89l
Weight
12.10kg
Type
Midi-Tower
front
closed, glass
above
partially closed, mainly fan grill, Mesh, dust filter inside
below
partially closed, mainly fan grill, dust filter outdoor
left
closed, glass
right
partially closed, mainly fan grill, Mesh, dust filter inside
aft
partially closed, fan grill right centered, PCI slots (7x horizontal)
front I/O position
Housing side: top, Height: front, position: right
Special features
Cable Management, dust filter, side panel window made out of glass, Mehrkammerdesign
