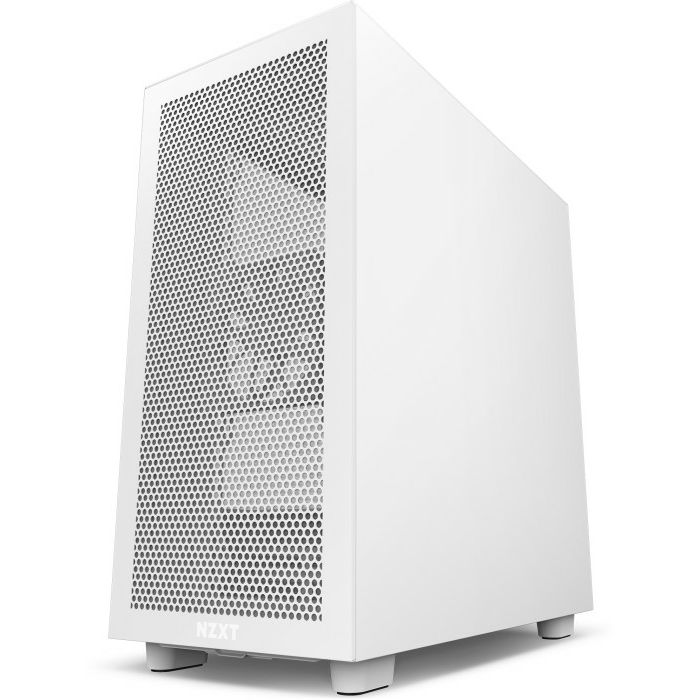

NZXT Midi Tower H7 Flow White, CM-H71FW-01

External not available

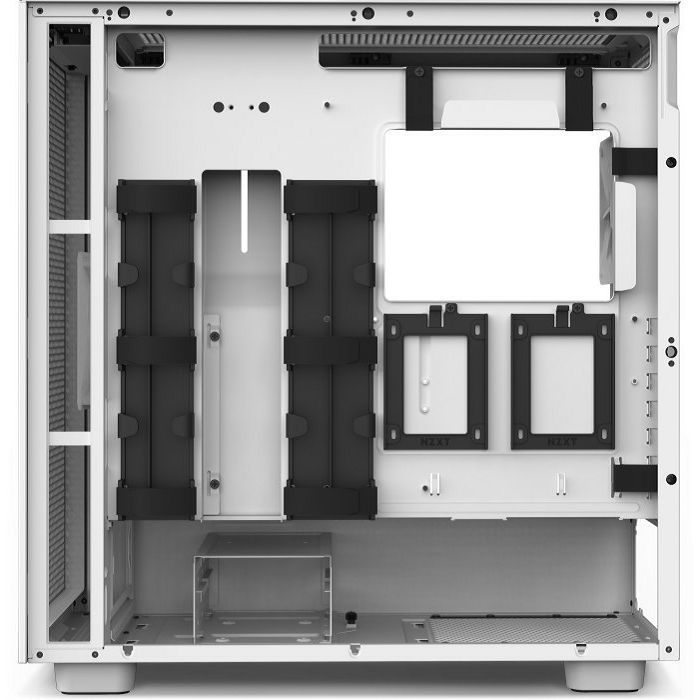

Internal 2x 2.5"/3.5" (transverse, HDD rails), 4x 2.5"

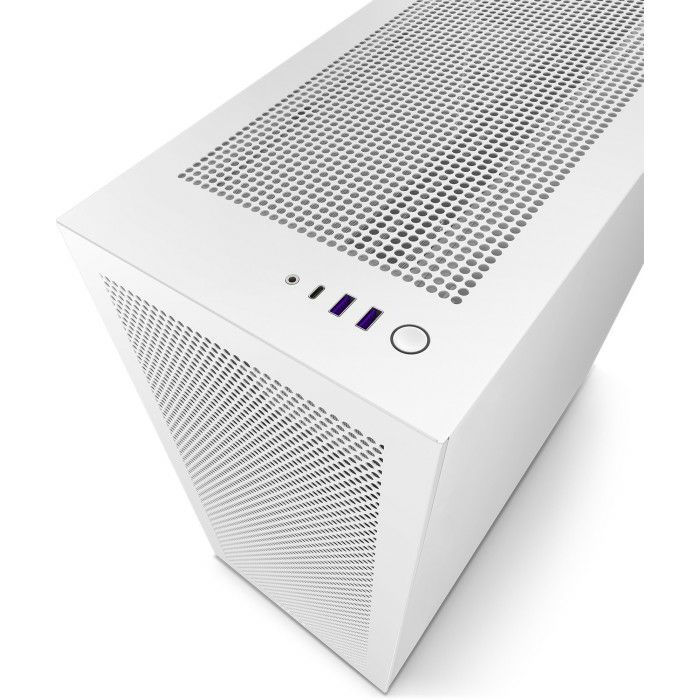

front I/O 1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x headphone/?microphone
PCI-slots 7
Fan(s) (front) 1x 120mm, 1200rpm, 1.05mmH2O, 105.64m3/?h, 25.1dB(A) or 3x 140mm (optional)
Fan(s) (rear) 1x 120mm, 1200rpm, 1.05mmH2O, 105.64m3/?h, 25.1dB(A) or 1x 140mm (optional)
Fans (left) not available
Fans right not available
Fan(s) (top) 3x 120mm (optional) or 2x 140mm (optional)
Fan(s) (bottom) not available
Fans (other) not available
radiator sizes 120/?140/?240/?280/?360mm front, 120/?140/?240/?280/?360mm top, 120/?140mm rear
Motherboard to ATX (272mm wide)
Supported motherboards Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x10.7")
Power supply ATX
Power supply position bottom
CPU Coolers max. 185mm height
Graphics Cards max. 400mm
Colour white, inside white
Lighting without Illumination
Dimensions (WxHxD) 230x505x480mm
Capacity 55.75l
Weight 10.05kg
Type Midi-Tower
front Mesh, dust filter inside
above partially closed, mainly fan grill, Mesh, dust filter inside
below partially closed, fan grill rear, dust filter outdoor

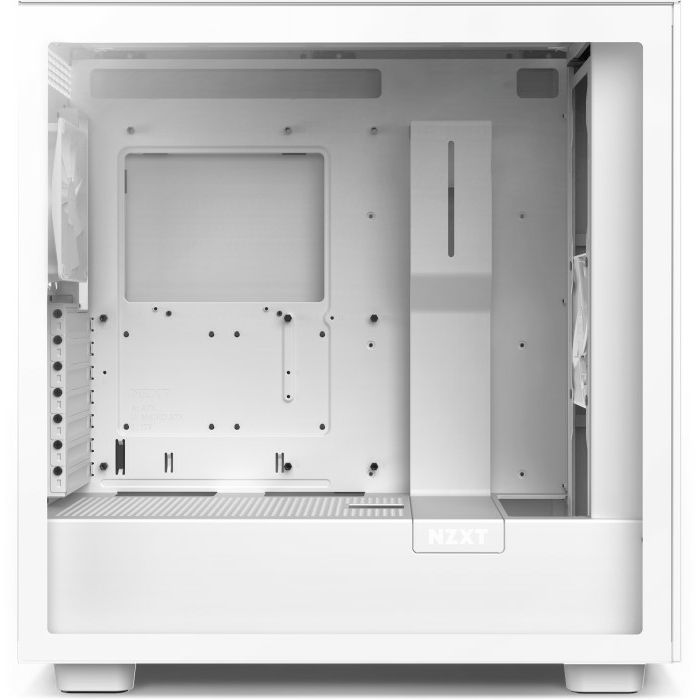

left closed, glass
right closed
aft partially closed, fan grill right top, PCI slots (7x horizontal)
front I/O position Housing side: top, Height: front, position: right
Special features Cable Management, dust filter, graphics card vertical mountable (optional), side panel window made out of glass
Note Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
