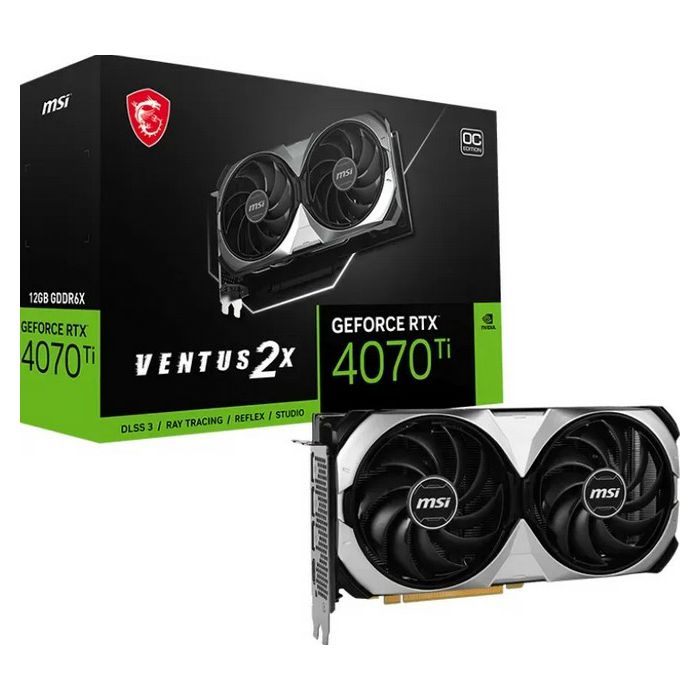

MSI RTX4070Ti Ventus 2X 12G OC, 12GB, GDDR6X, V513-413R

GPU NVIDIA GeForce RTX 4070 Ti
Memory 12GB GDDR6X, 192bit, 21Gbps, 1313MHz, 504GB/s
overclock +45MHz Boost (OC-Profile), +30MHz Boost (Standard-Profile)
clock Boost 2640MHz (Standard-Profile), 2655MHz (OC-Profile)
clock Base 2310MHz (Standard-Profile), 2310MHz (OC-Profile)
Cooling 2x Axial-fan (100mm) with 0dB-zero-fan-mode
TDP/TGP 285W (NVIDIA), max. 285W (MSI)
Power connections 1x 16-Pin PCIe 5.0 (via adapter: 2x 8-Pin PCIe)

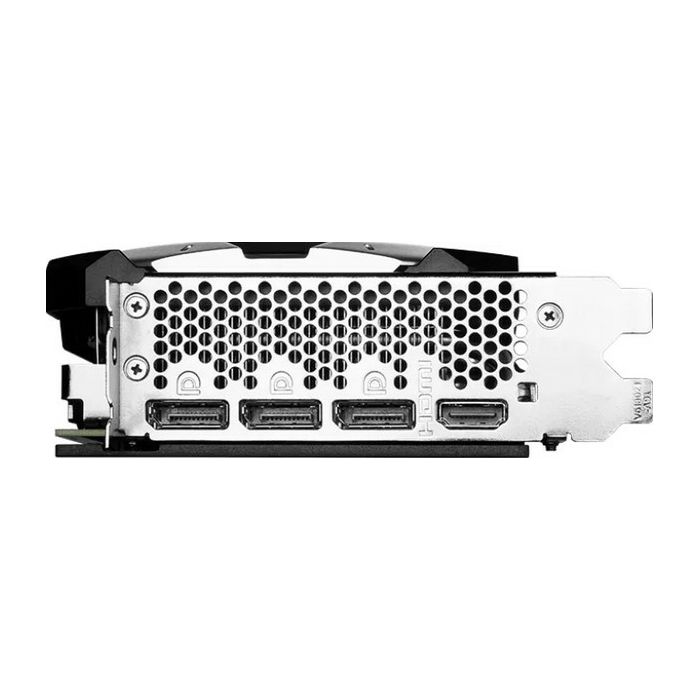

Connectors 1x HDMI 2.1a, 3x DisplayPort 1.4a
Interface PCIe 4.0 x16

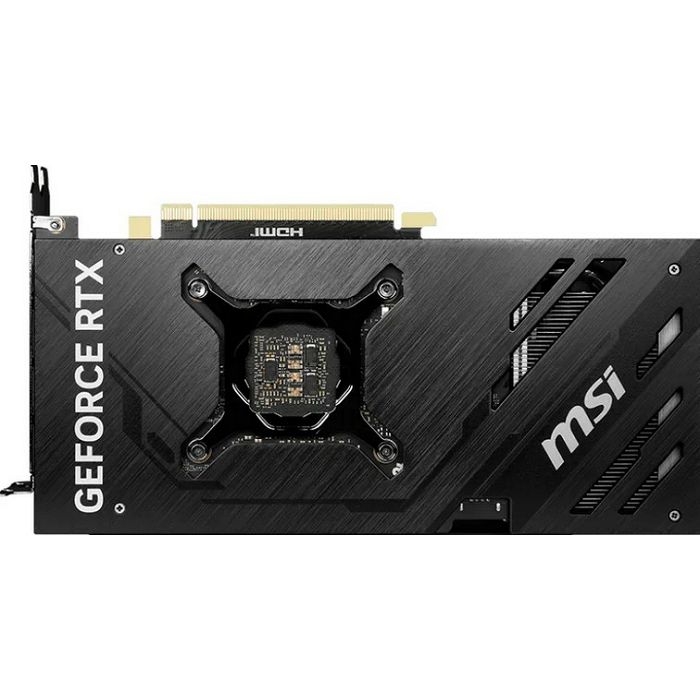

Special features Taktprofile (Gaming Mode/extreme Mode), Backplate
total height Triple Slot
Dimensions 242x125x51mm (LxWxH), Weight: 869g
Type PCIe card (full height)
PCI slot bracket full height
Computing power 40.78 TFLOPS (FP16), 40.78 TFLOPS (FP32), 0.64 TFLOPS (FP64)
Chip-data
Chip-Architecture Ada Lovelace (from 2022/Q3)
Chip-title AD104-400-A1
Chip-Configuration 60SM (7680 ALUs / 240 TMUs / 80 ROPs), 60 RT Cores, 240 Tensor Cores, 48MB L2 cache
Chip-Manufacturing Process TSMC 5nm "NVIDIA 4N"
Chip size 295mm2, monolithisch, 35.8 Mrd. Transistoren
Chip-functions Raytracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding-Engine 2x NVENC (8th Gen, max. Sessions: 5), 1x NVDEC (5th Gen), Info
encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
